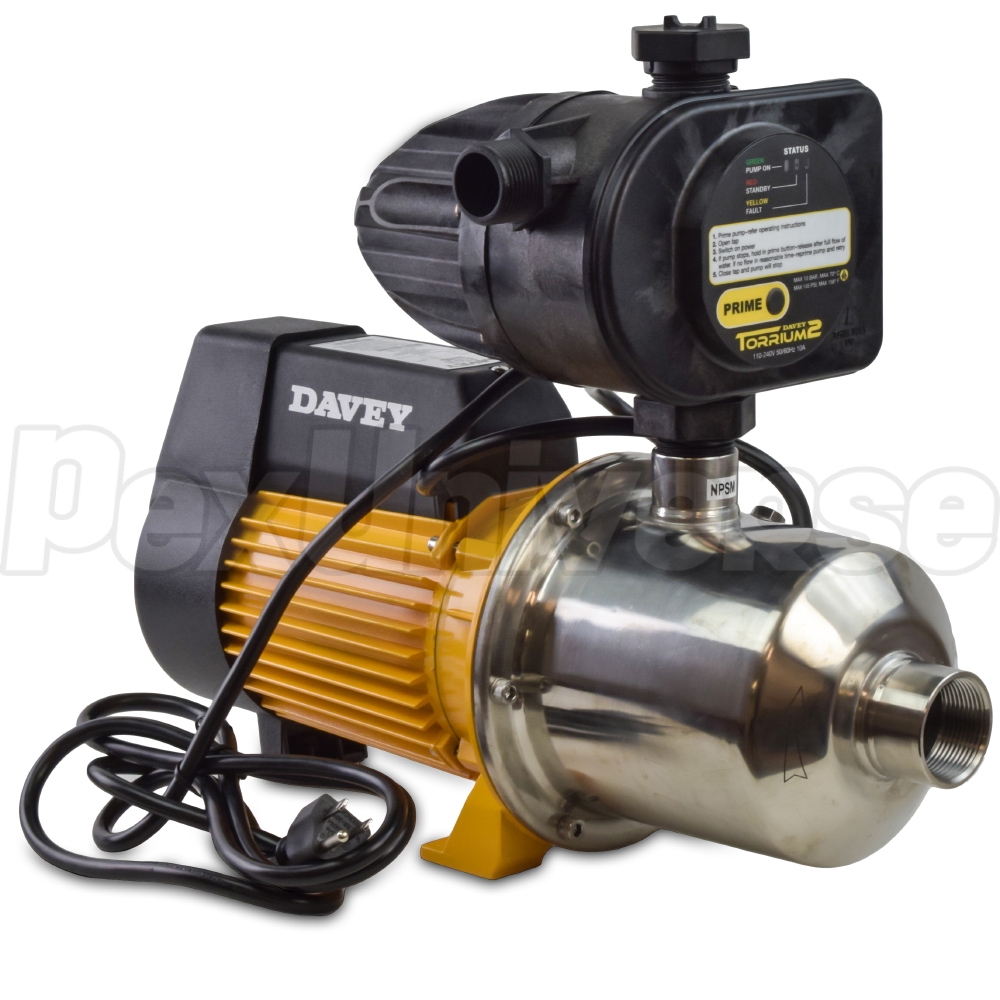

BT20-40 Pressure Booster Pump w/ TORRIUM2, 1-1/4 HP, 220/240V Davey
BT20-40 Pressure Booster Pump w/ TORRIUM2, 1-1/4 HP, 220/240V
Brand: Davey
Part#: BT20-40
This product has been discontinued. No direct replacement is available at this time.

Description

Use DAV10 coupon for an instant 10% OFF!
Davey BT series pressure booster pump is comprised of a robust and compact centrifugal pump with stainless steel volute and an intelligent Torrium2 controller, designed to produce constant selected pressure in a variety of water supply options - municipal, well, tank, etc.

Features:
  • Stainless steel pump volute offers better durability and corrosion resistance over plastic and cast iron alternatives
  • Pump permits larger flow rates due to larger internal pathways
  • No moving control parts inside the water pathways means better reliability and no blockages
  • Integrated dry run protection, over-current & overheat protection, auto-restart

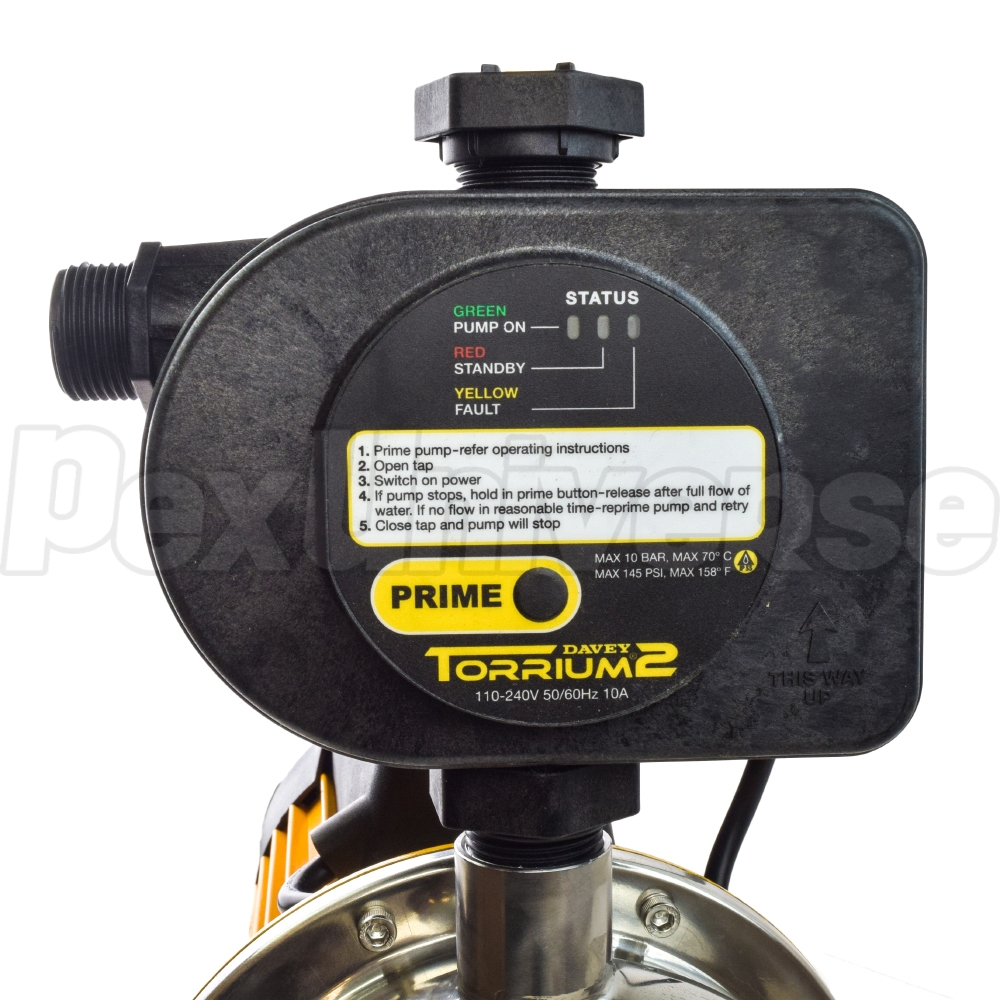

  • Torrium2 controller offers advanced monitoring and controls, while offering flexibility in discharge - top, side or both
  • Built-in check valve

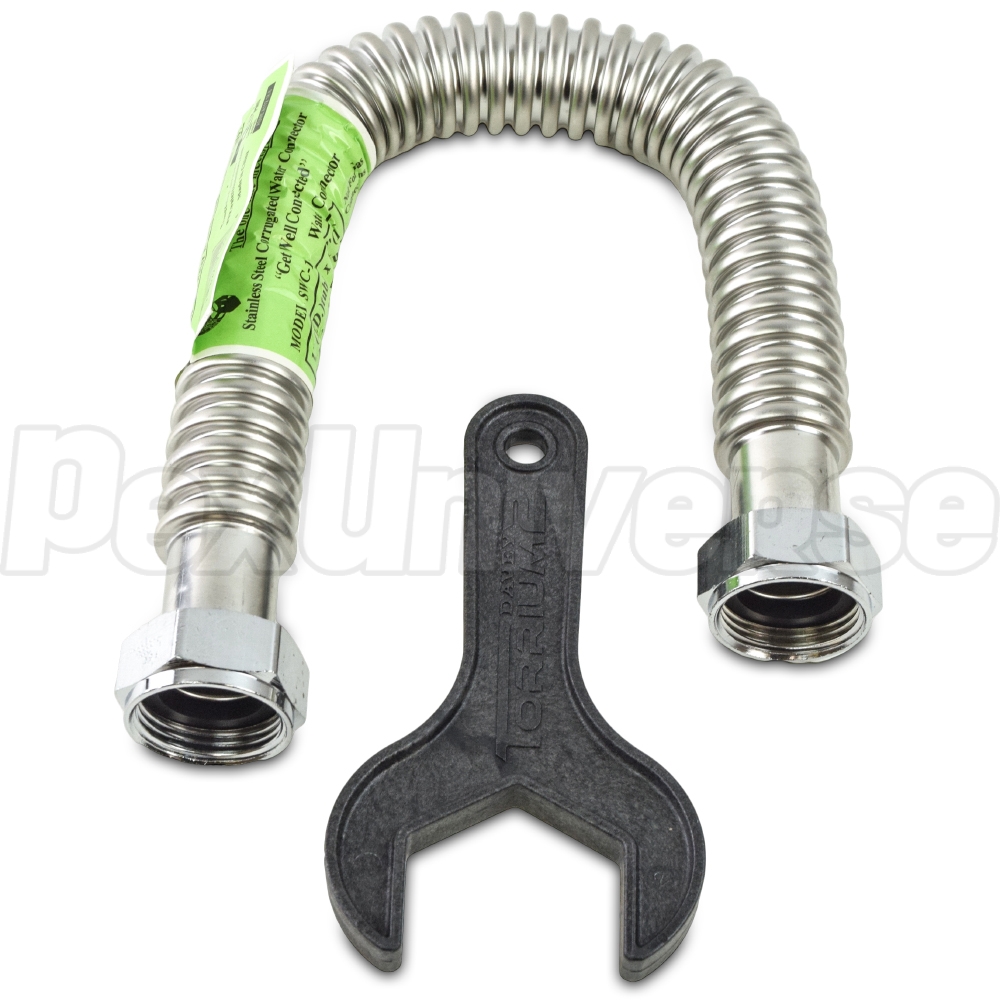

  • Includes stainless steel hose for easy system connection
  • Very low noise levels of ~54dB

Technical Specifications:
  • Voltage: 220-240V
  • Main frequency: 60Hz

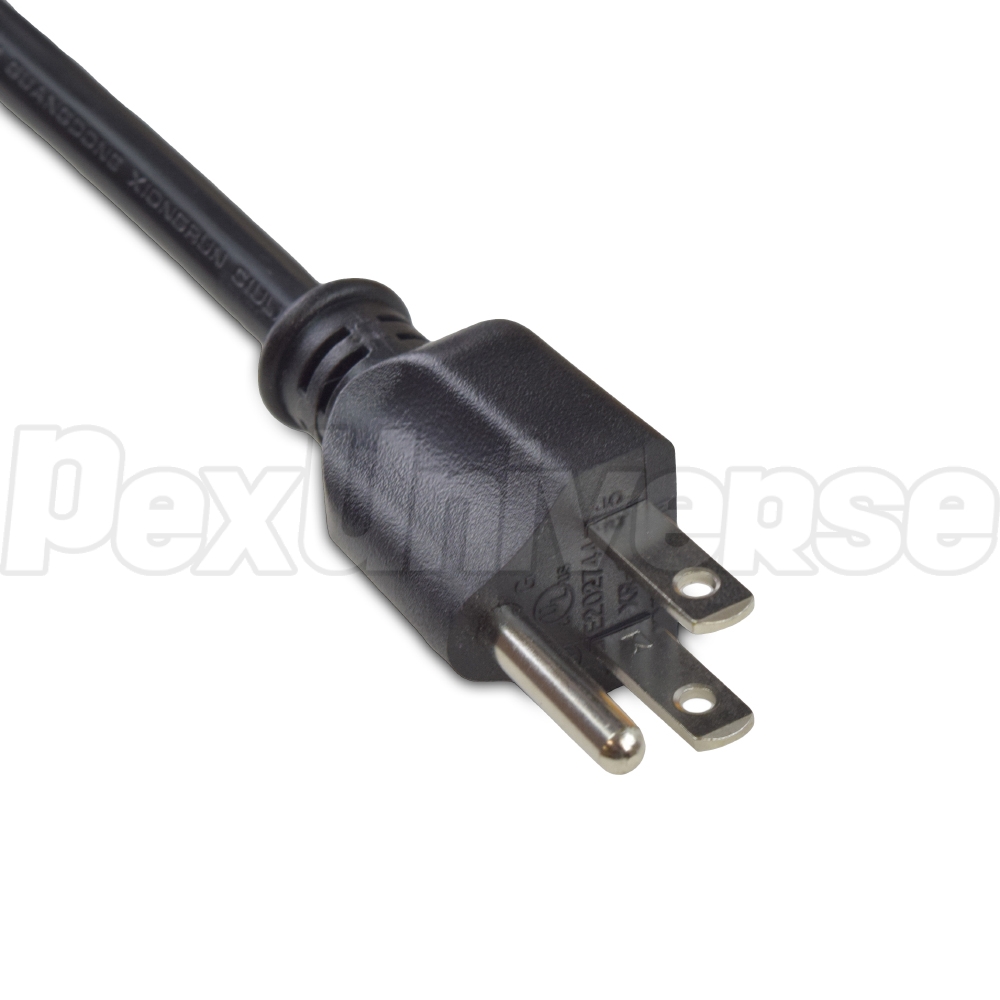

  • Type of cable plug: 6ft power cord with standard NEMA 6-15P power plug
  • Nominal Duty: Flow 20 gpm @ 20 psi
  • Maximum boost: 78 psi
  • Maximum flow rate: 25 GPM
  • Maximum system pressure: 100 psi
  • Minimum pressure setting: 15 psi
  • Maximum pressure setting: 80 psi
  • Cut-out (low-flow) rate: 0.26 GPM
  • Maximum ambient temperature: 120°F
  • Maximum liquid temperature: 158°F
  • Maximum suction lift: 25ft
  • IP rating: IP55
  • Outlet size: 1" Male NPT
  • Inlet size: 1" Female NPT
  • Weight: 27.3 lbs
  • Dimensions (L x W x H): 13.8" x 7.56" x 17.40"

Warranty:
3 years from the date of installation
