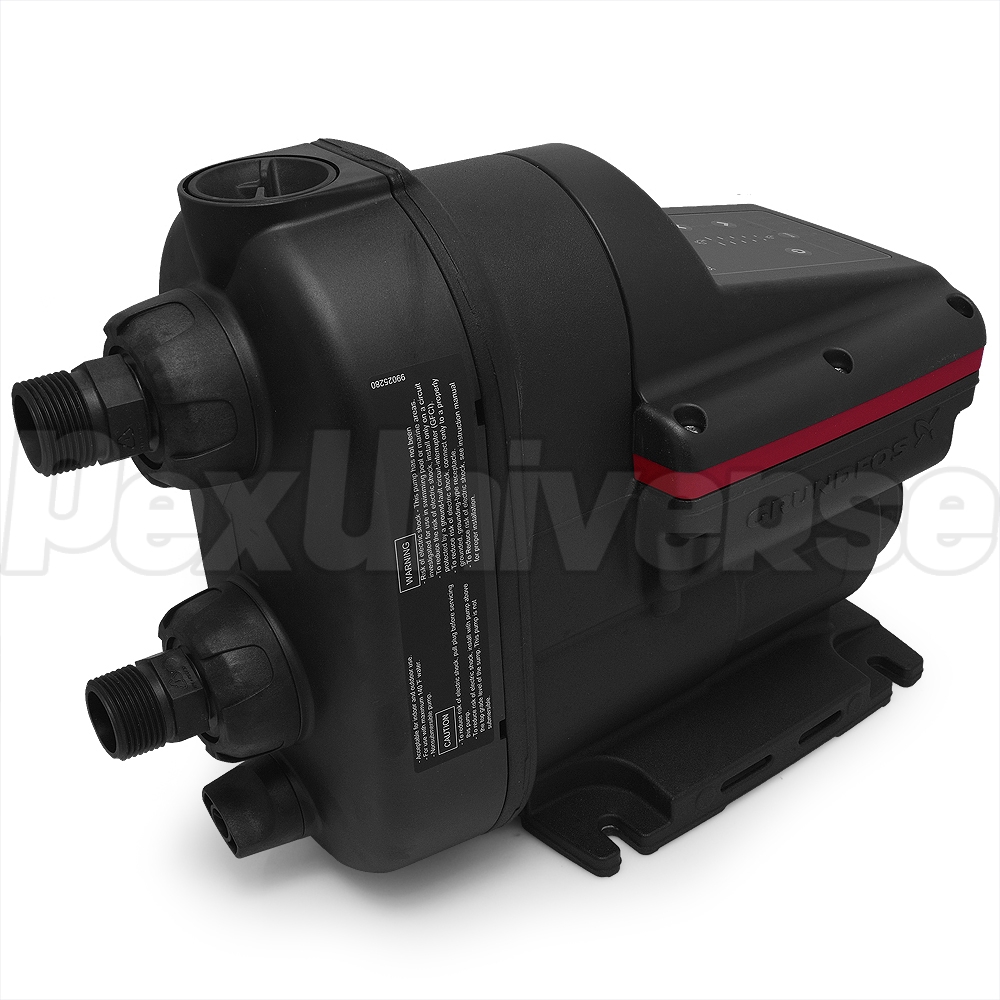

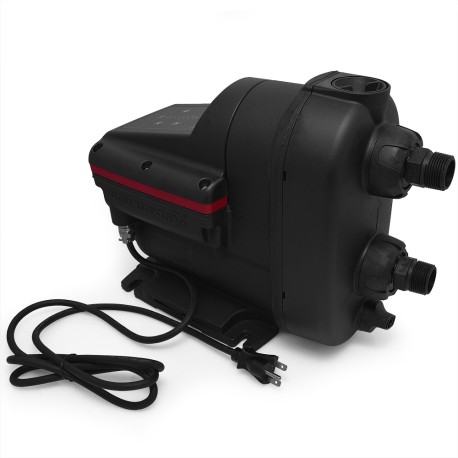

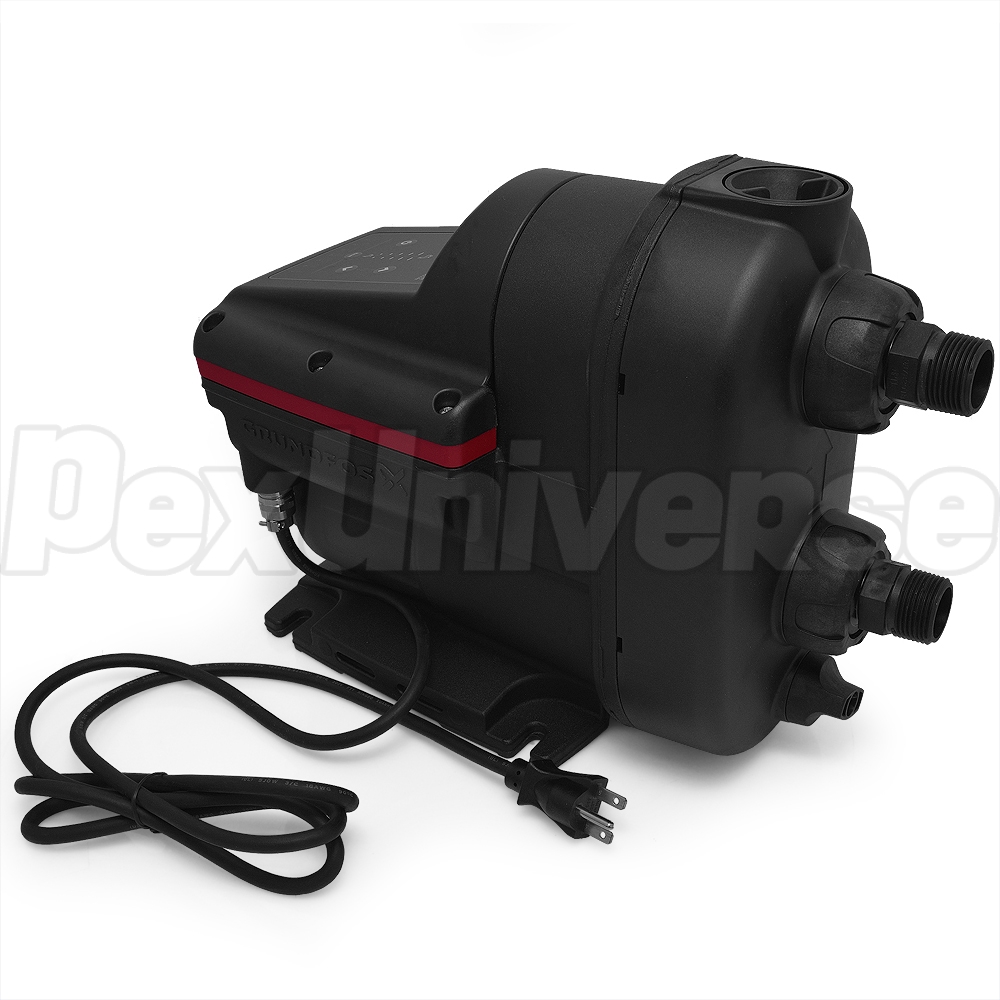

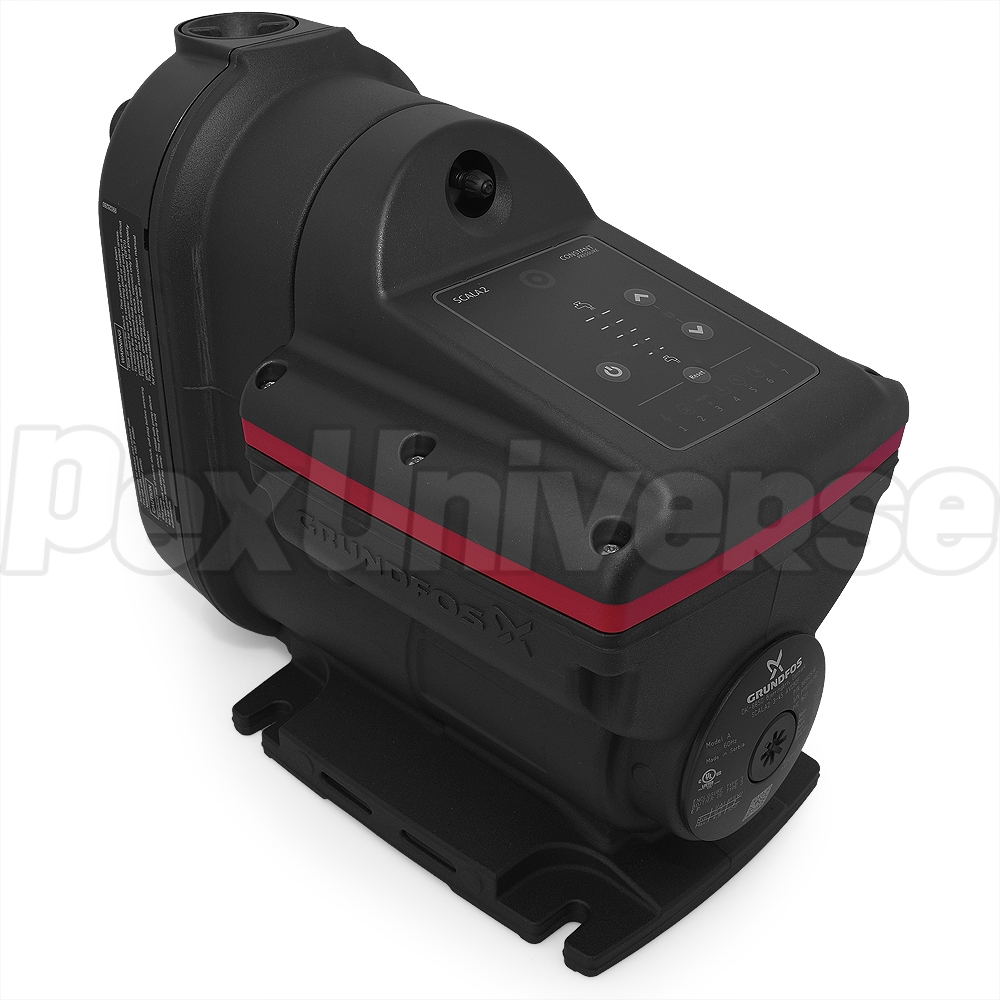

SCALA2 Booster Pump, 3/4 HP, 230V


Brand: Grundfos

Mfr Part#: 98562817

Model: SCALA2-230

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$615.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs

Grundfos SCALA2 is a fully integrated water presure booster pump designed to deliver perfect water pressure. It features pump, tank, motor, sensor, drive and non-return valve all in one compact unit that installs quickly and easily. With its water-cooled motor it offers one of the lowest noise levels in its class. Intelligent pump control adjusts performance to any demand.


  • Intelligent pump control;
  • Water-cooled, permanent magnet motor;
  • Dry running protection;
  • Self-priming;

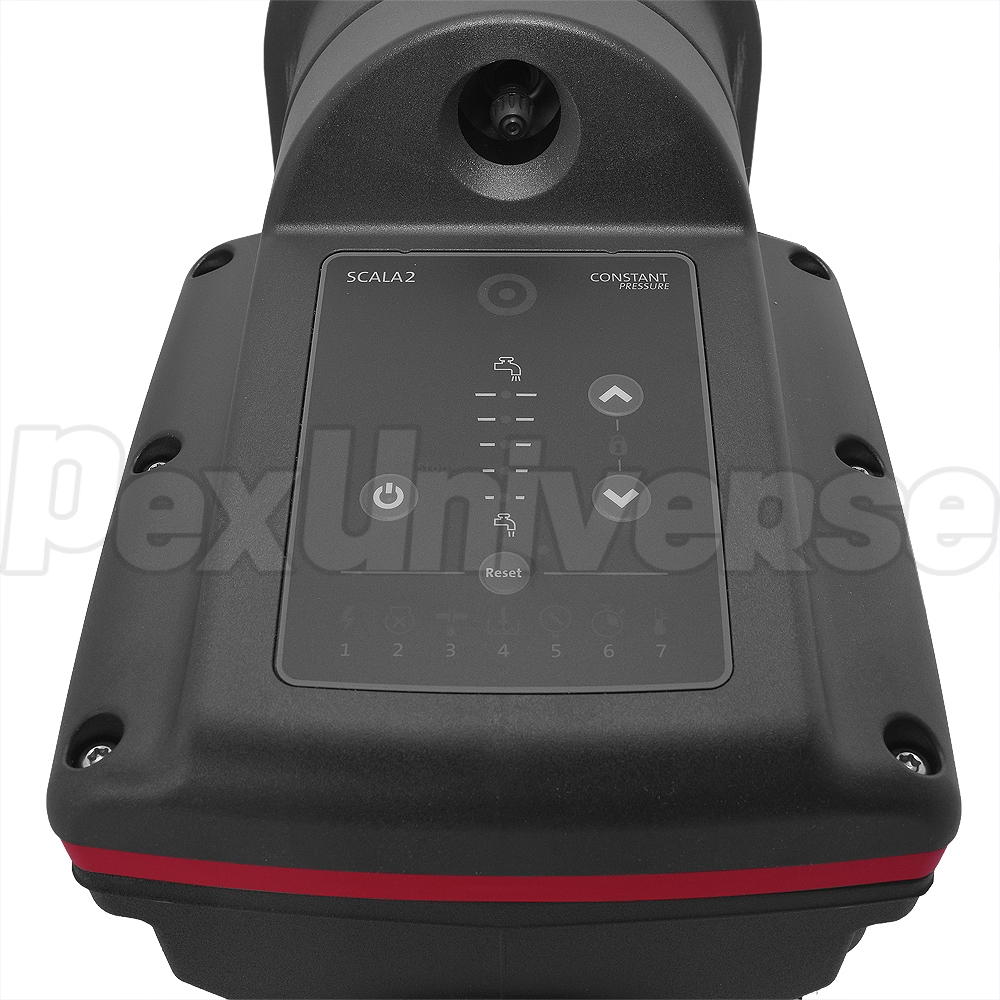

  • User friendly control panel;
  • Outdoor-ready;
  • Easy sizing and selection;
  • Adjustable constant pressure;
  • Noise level of 47 dB(A) in typical use.

Technical Specifications:

  • Voltage: 208-230V;
  • Main frequency: 60 Hz;
  • Power: 550W @ 2.3 - 2.8A;
  • Connection: 1" NPT;
  • Maximum ambient temperature: 131°F (55°C);
  • Maximum liquid temperature: 113°F (45°C);
  • Maximum system pressure: 145 PSI (10 bar);
  • Maximum inlet pressure: 87 PSI (6 bar);
  • Maximum head: 148 ft (45 m);
  • Pumped liquid: Clean, fresh water and chlorinated water < 300 ppm.;

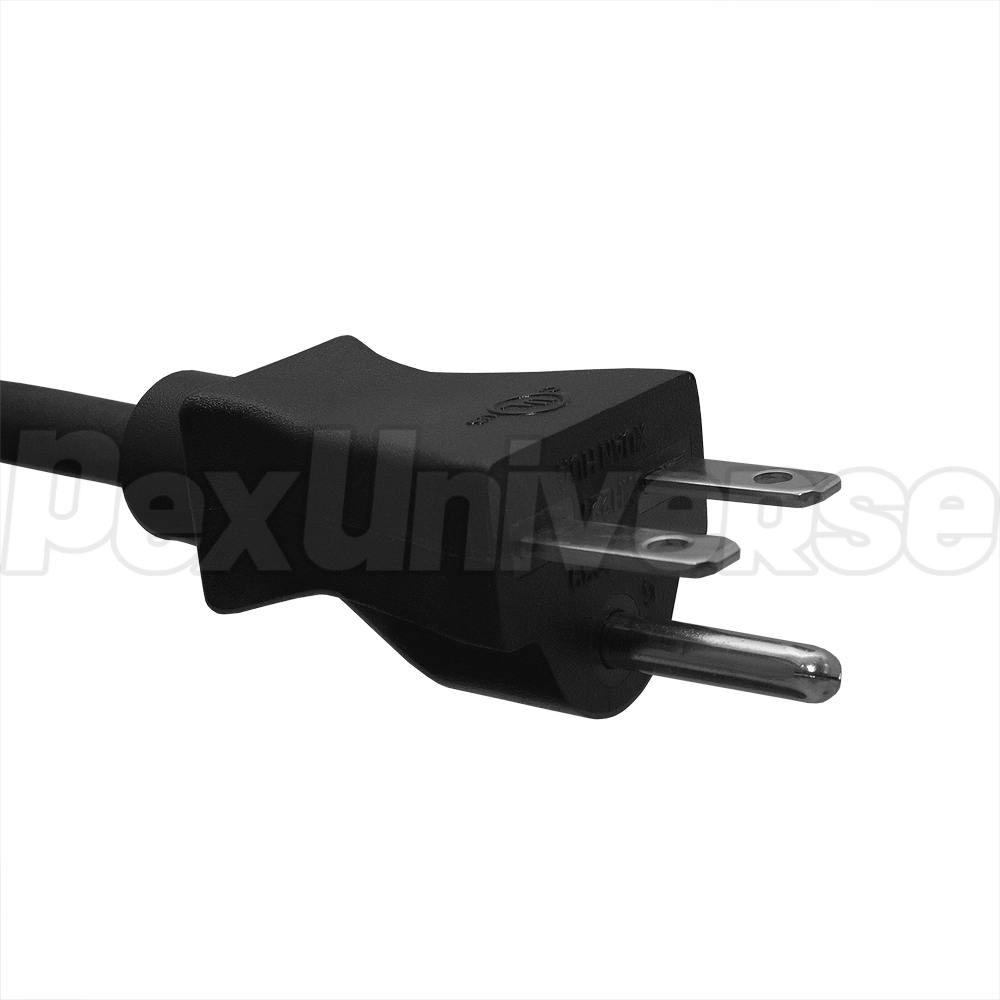

  • Type of cable plug: NEMA 6-15P;
  • Enclosure Rating: NEMA 3;
  • Factory set tank pre-charge pressure: 18 psi;
  • Maximum Taps: 8;
  • Maximum Number of Floors: 3;
  • Net weight: 22 lbs;
  • Dimension (L x W x H): 15.9" x 7.6" x 11.9" (403mm x 193mm x 302mm).


2 year manufacturer's warranty.
