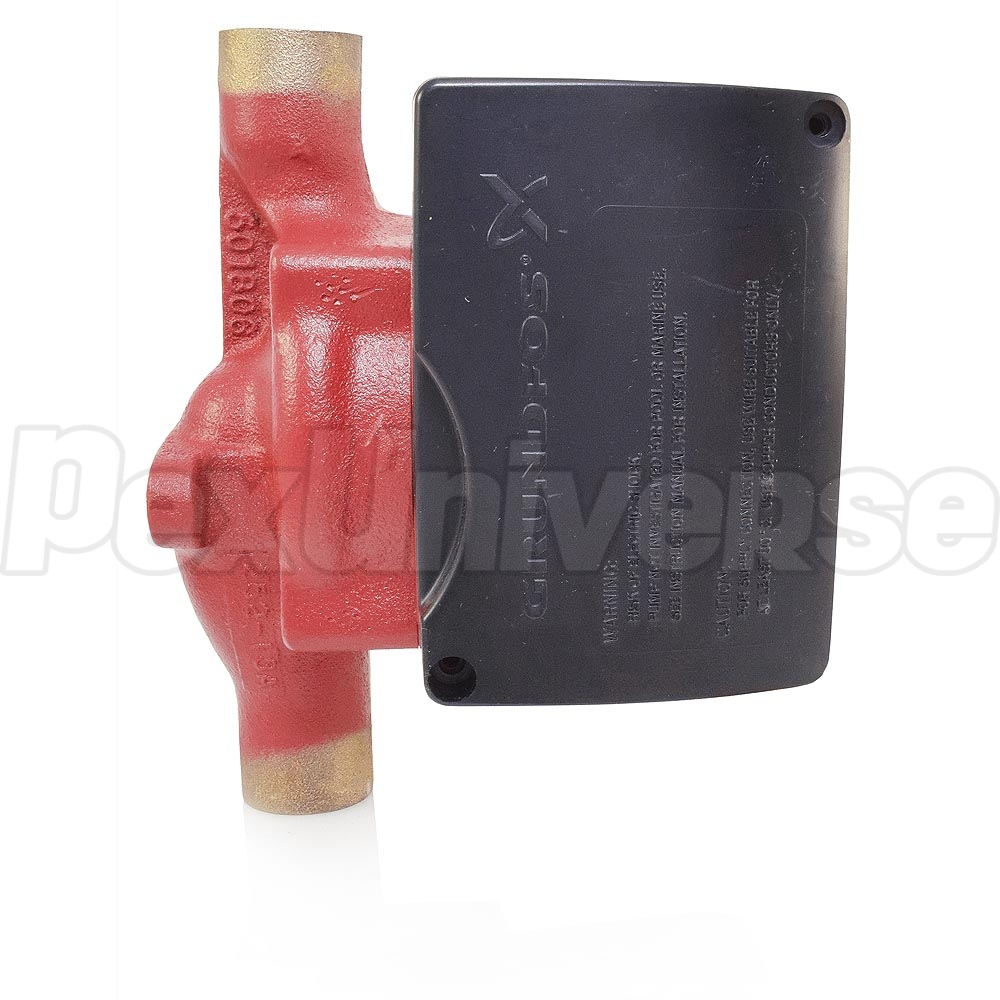

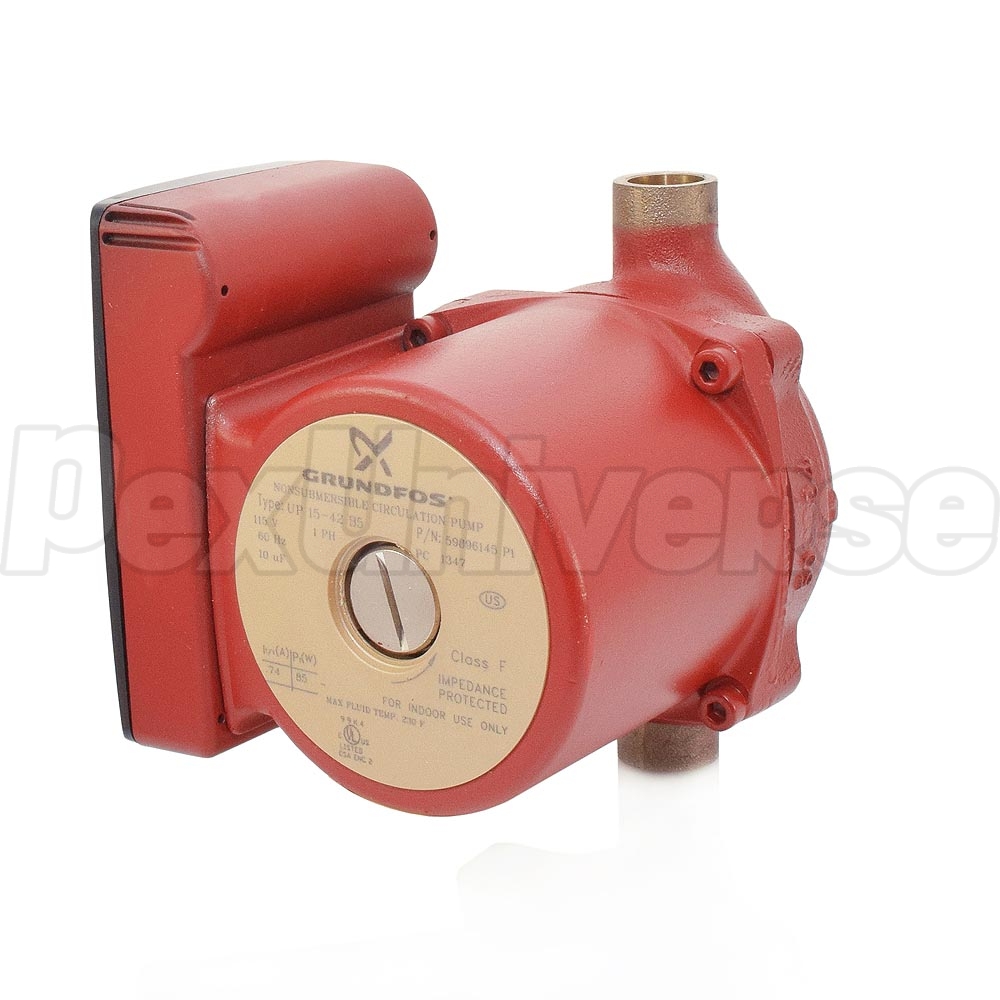

UP15-42B5 Bronze Circulator Pump, 1/2" Sweat, 1/25 HP, 115V
Brand: Grundfos
Part#: 59896145
Model: UP15-42B5
In Stock
Usually ships: within 1 business days
Grundfos UP15-42B5 (Grundfos SKU# 59896145) is a 1/25HP, single-speed Bronze Circulator Pump with 1/2" Sweat inlet/outlet connections. Bronze body of the Grundfos UP15-42B5 model improves corrosion resistance of the pump and allows to use it in both closed lopp and open loop systems, such as radiant heating, domestic hot water recirculation, solar systems, etc.

Features:
  • Suitable for all heating systems including hydronic heating, fan coil heating, radiant heating, solar heating, and other systems
  • Built-in motor protection for long life
  • Bronze body
  • UL/CSA listed.

Read more

Technical Specifications:
  • Voltage: 115V
  • Amperage: 0.74 Amps
  • Hertz: 60 Hz
  • Phase: 1
  • Watts: 85W
  • Max Pressure: 145 psi
  • Max Temperature: 230F
  • Min Temperature: 36F

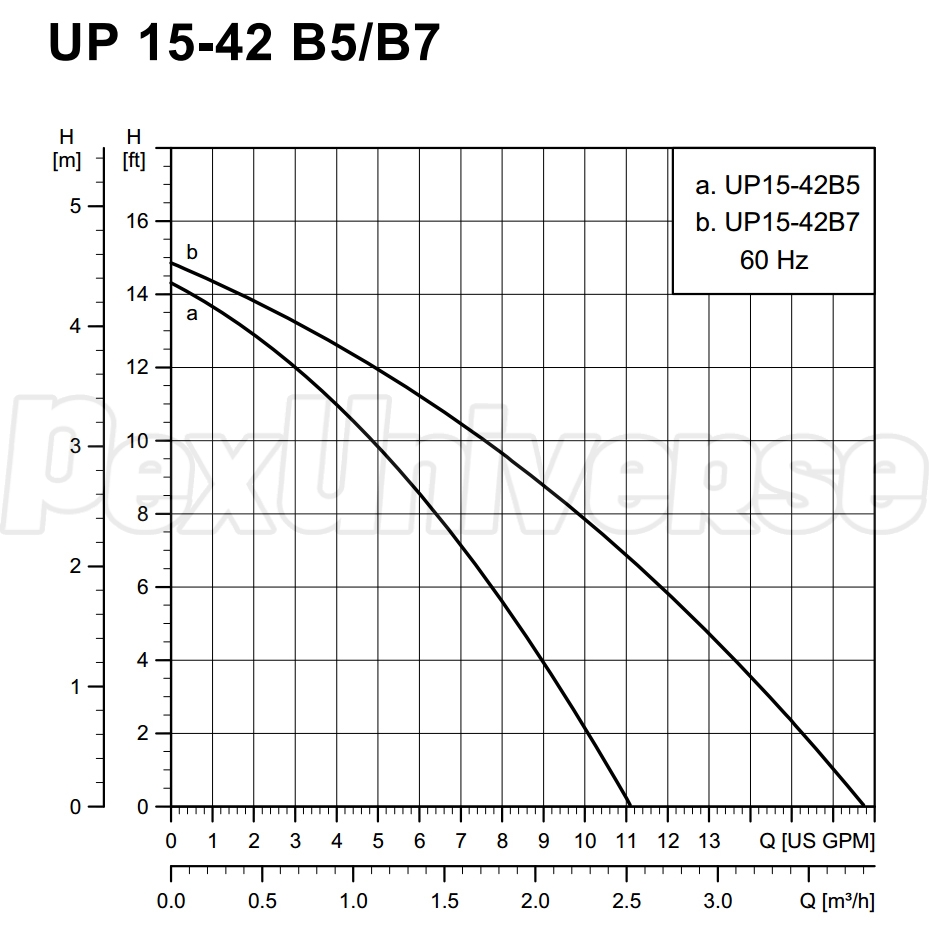

  • Flow Range: 0-17 GPM
  • Head Range: 0-15 ft
  • Horse Power: 1/25HP
  • Body: Bronze
  • Connections: 1/2" Sweat

Read more

Warranty:
2 years from the date of installation.
