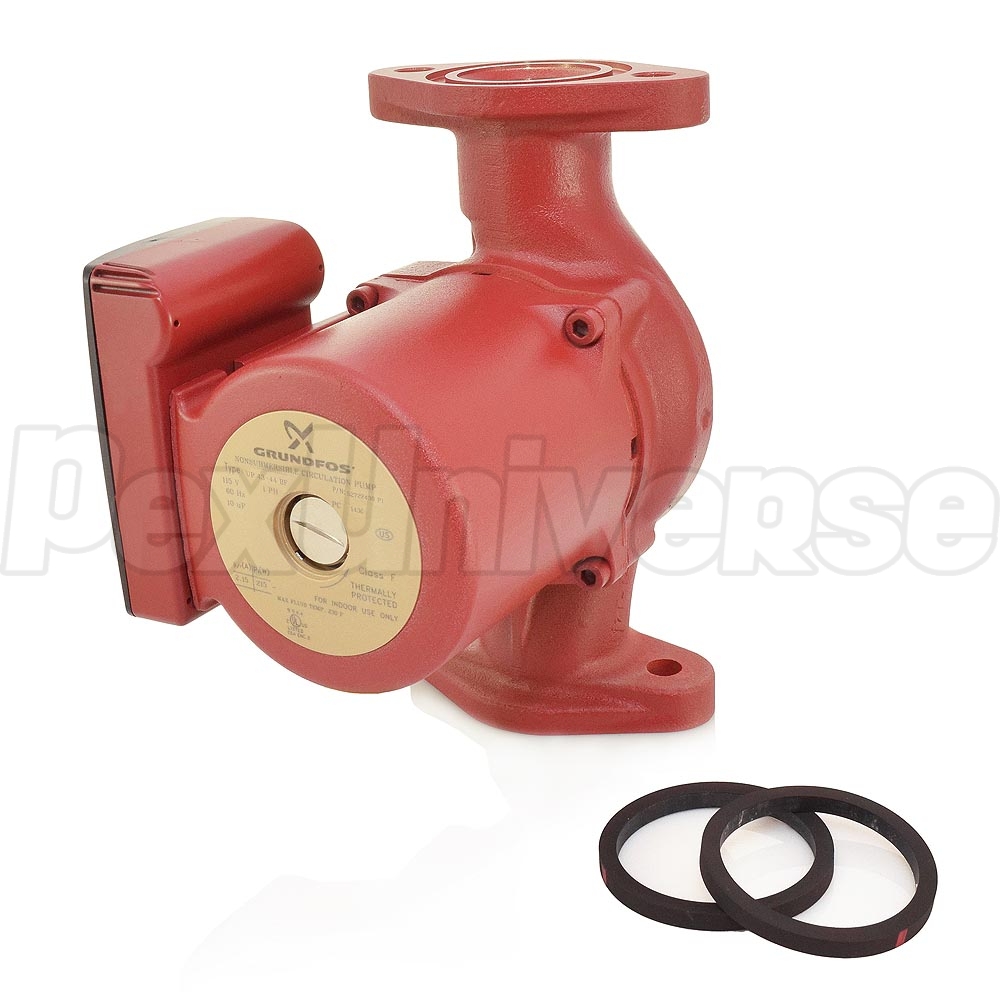

UP43-44BF Bronze Circulator Pump, 1/6 HP, 115V Grundfos

UP43-44BF Bronze Circulator Pump, 1/6 HP, 115V

Brand: Grundfos

Part#: 52722439

Model: UP43-44BF

In Stock

Estimate delivery

Usually ships: within 1 business day

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

Grundfos UP43-44BF is a Bronze Circulator Pump (Grundfos SKU# 52722439) designed for use in both open and closed loop heating applications and well as hot water re circulation, cold water chilling and many others. High flow (high velocity) and low/medium pressure drop of the Grundfos UP43-44BF model make it ideal for use with water-to-water and water-to-air heat exchangers.

Features:

Ceramic shaft and radial bearings
Carbon axial bearing
Stainless steel rotor can and bearing plate
Corrosion-resistant impeller, Composite, PES
Bronze pump housing

Technical Specifications:

Speeds: 1

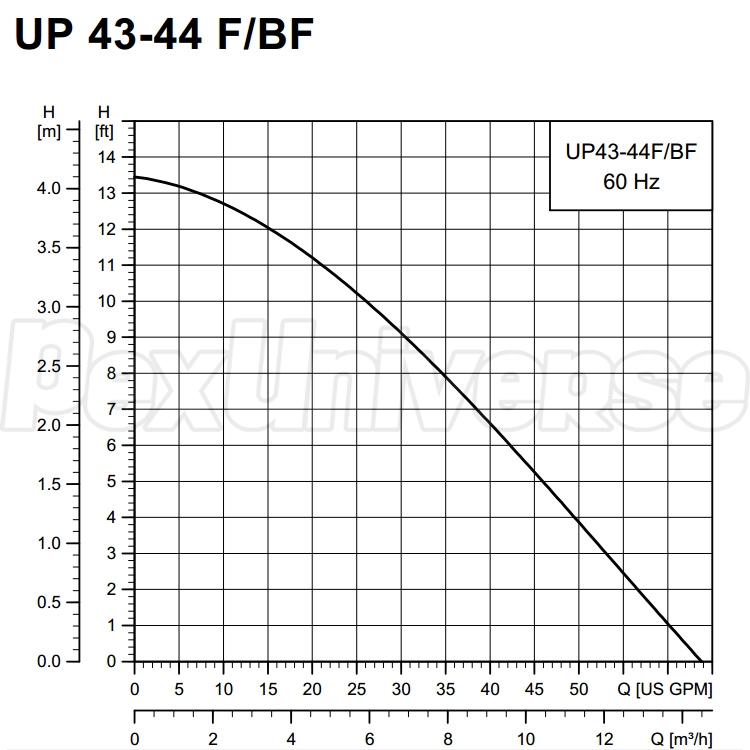

Max flow: 67.8 GPM
Head max:13.5 ft of head
Liquid temperature range:32 - 230 F
Maximum operating pressure: 145 psi
Approvals on nameplate: UL, CSA
Pump housing:Bronze
Pump housing: DIN W.-Nr. 2.1176.01
Impeller: Composite, PES
Maximum ambient temperature: 104 F
Ambient max at 176 F liquid: 176 F
Maximum operating pressure: 145 psi
Flange standard: USA Oval
Type of connection: Bronze Flange
Pipe connection: 3/4", 1", 1-1/4" flange (GF 15/26)
Pressure stage: 10
Flange-to-flange dimensions: 8-1/2"
Number of poles: 2
Max. power input: 215 W
Rated power - P2: 0.161 HP
Main frequency: 60 Hz
Voltage: 115V
Current in speed 3: 2.15 A
Capacitor size - run: 10mF/180 V
Insulation class (IEC 85): F
Weight: 15 lb

Warranty:
2 years from date of installation.
