UPS15-55SUC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4" Union, 1/8 HP, 115V


Brand: Grundfos

Mfr Part#: 59896781

Model: UPS15-55SUC

UPC#: 570083742812

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$346.95 / each & Free Shipping
x2 $663.90 & Free Shipping
(2 x $331.95 / each)
  • Description
  • Literature
  • Reviews (2)
  • FAQs (1)

Grundfos UPS15-55SUC model (Grundfos SKU# 59896781) is a 1/8HP, 3-Speed Stainless Steel Circulator Pump with removable Integral Check Valve and GU125 union connections (1-1/4"). Both stainless steel housing and 3 speeds of the Grundfos UPS15-55SUC model make it suitable for a wide range of applications such as radiant heating, solar, domestic water recirculation, storage tanks, chilled water cooling and many others.


  • Ceramic shaft and radial bearings;
  • Carbon axial bearing;
  • Stainless steel rotor can and bearing plate;
  • Corrosion-resistant impeller, Composite, PES;
  • Stainless steel pump housing;
  • Check valve;
  • Union connection;

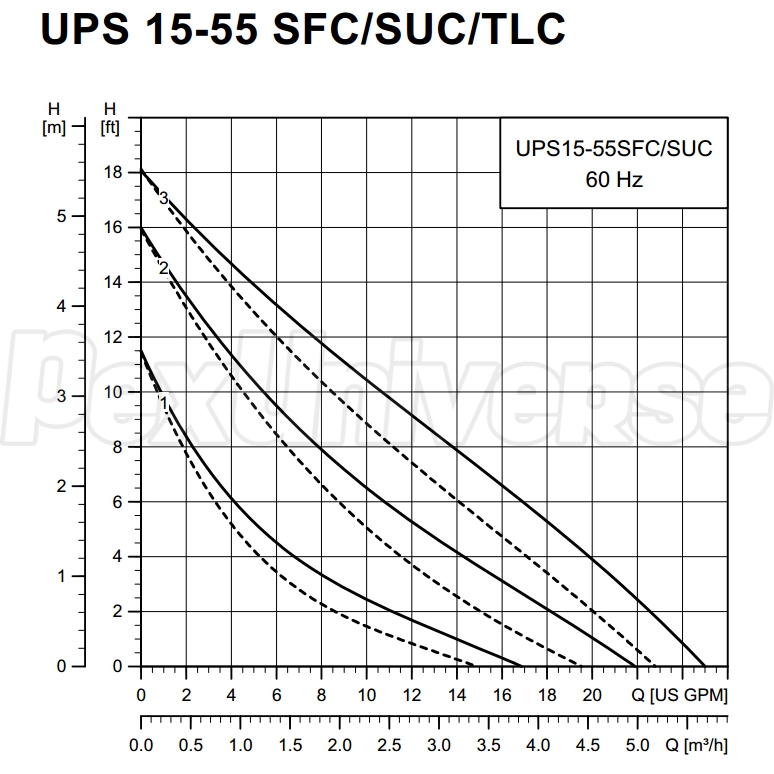

Technical Specifications:

  • Speed Number: 3;
  • Max flow: 25.1 US gpm;
  • Head max: 18 ft;
  • Liquid temperature range: 35.6 .. 230 F;
  • Maximum operating pressure: 145 psi;
  • Approvals on nameplate: UL, CSA;
  • Pump housing: Stainless steel;
  • Pump housing: DIN W.-Nr. 1.4301;
  • Pump housing: AISI 304;
  • Impeller: Composite, PES;
  • Maximum ambient temperature: 104 F;
  • Ambient max at 176 F liquid: 176 F;
  • Maximum operating pressure: 145 psi;
  • Flange standard: USA Threaded;
  • Type of connection: S.S. Union;
  • Pipe connection: 1-1/4" NPSM (GU125 Union);
  • Pressure stage: 10;
  • Port-to-port length: 5.87";
  • Number of poles: 2;
  • Power input in speed 1: 56 W;
  • Power input in speed 2: 74 W;
  • Max. power input: 87 W;
  • Rated power in speed 1: 1/8HP;
  • Rated power in speed 2: 1/10HP;
  • Rated power in speed 3: 1/12HP;
  • Main frequency: 60 Hz;
  • Voltage: 115V;
  • Current in speed 1: 0.31 A;
  • Current in speed 2: 0.66 A;
  • Current in speed 3: 0.69 A;
  • Capacitor size - run: 10 mF/180 V;
  • Insulation class (IEC 85): F;
  • Gross weight: 5.4 lbs;


2 years from date of installation.
UPS15-55SUC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4" Union, 1/8 HP, 115V has an average 5.0 out of 5 rating based on 2 user reviews.
Best pump for tankless recirculation
By Momchil (from Sacramento,CA) on 8/16/2016
I have purchased few of them. I do mostly tankless service calls, this one is a must have in my truck. Old ones fail due to dummy plumbers. Guys-bleed the air out of the system and those pumps will last forever.
Was this review helpful?  Yes / No
Best circulator for tankless water heater applications
By Mitch (from Los Angeles) on 5/7/2016
Great pump, works perfect, quiet . Union connection is really easy to remove, no leaks
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
What is the power consumption?'
Read 1 answer
Power consumption is 56 Watts at 1st Speed, 74W at 2nd and 87W at 3rd.
Answered on 10/16/2017 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
