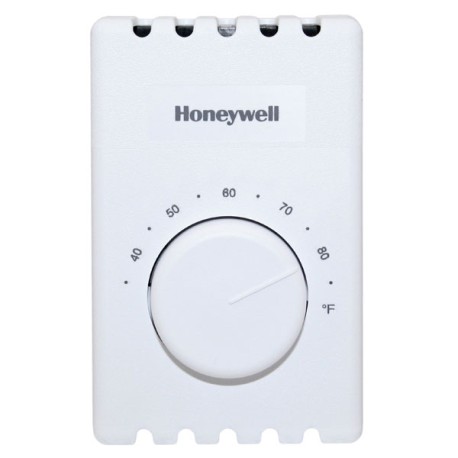

Electric Heat Thermostat DPST, Heat Only
Brand: Honeywell
Part#: T410B1004
In Stock
(1)
Estimate delivery
Usually ships: within 1 business day

Description

Honeywell T410B1004 Electric Heat Thermostat has double pole single throw (DPST) switching action and includes Positive OFF. The snap-action switch makes the heating circuit on temperature fall. This Economical Honeywell Electric Heat Thermostat provides reliable line voltage control of resistive rated electric heating equipment.
Honeywell T410B1004 can be used in applications: electric baseboards, convectors, and fan forced heaters (resistive rated loads).

Features:
  • Economical
  • Replace virtually any two-wire (T410A) or four-wire (T410B) line voltage wall-mounted electric heating thermostat
  • Easy to install
  • 6" (150 mm) color-coded leads
  • Include long-lasting Micro Switch mechanism
  • Rugged, plastic mounting base and one-piece cover with vents
  • Ideally suited to new construction applications

Technical Specifications:
  • Mounting: Vertical Mount
  • Color: White
  • Stages: 1 Heat
  • Electrical Connections: 6" (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used
  • Switching Action: DPST
  • Accuracy: 2 C
  • Dimensions: 4-1/2" high x 2-3/4" wide x 2-1/4" deep
  • Setting Temperature Range: 40F to 80F
  • Differential Temperature: 3F
  • Differential Temperature (C): 2 C
  • Electrical Ratings: Noninductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac.
  • Frequency: 60 Hz
  • Sensor Element: Bimetal
  • Ambient Temperature Range: 40F to 85F
  • Approvals, Underwriters Laboratories Inc: Listed
  • File No. E47434, Guide No. XAPX
  • Approvals, Canadian Standards Association: Listed: File No. LR1322
  • Includes: Positive OFF
  • Voltage: 120/208/240/277 VAC
