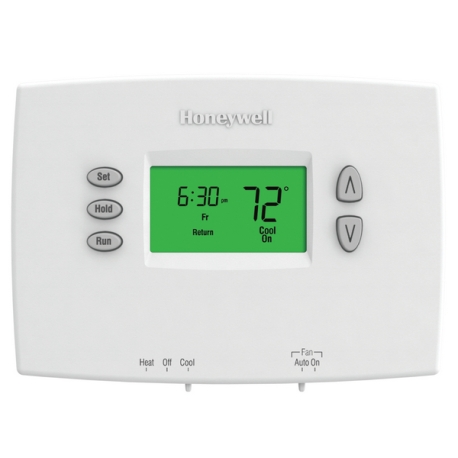

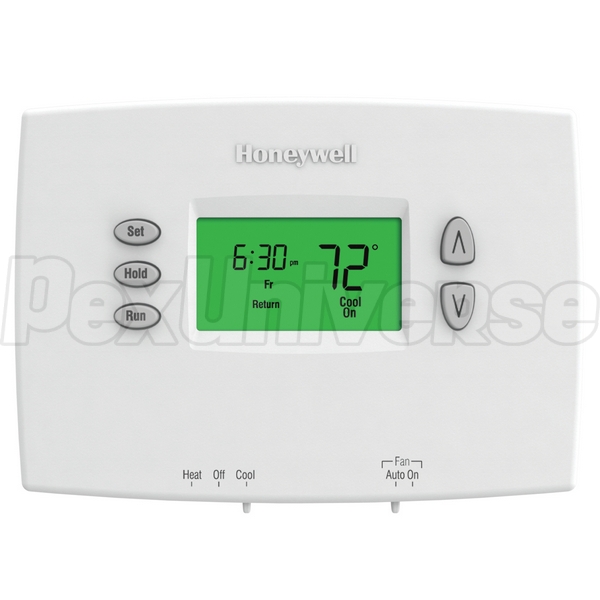

PRO 2000 Programmable Thermostat, 1H/1C
Brand: Honeywell
Part#: TH2110DH1002
In Stock
Usually ships: within 1 business days

PRO 2000 Horizontal Programmable Thermostat.


Technical Specifications:
  • Application: Heat/Cool or Heat Pump without Auxiliary Heat
  • Dimensions (Height x Width x Depth): 3 7/16 x 4 10/16 x 1 3/16 (87mm x 119mm x 30mm)
  • Mounting: Horizontal
  • Electrical Ratings: 20 to 30 Vac or 750 mV
  • Frequency: 50 Hz, 60 Hz
  • Stages: 1 Heat/1 Cool
  • Color: Premier White
  • Setting Temperature Range: 40°F to 90°F (4.5°C to 32°C) (Heat), 50°F to 99°F (10°C to 37°C) (Cool)
  • Switch Positions (System): HEAT-OFF-COOL
  • Terminal Designations: R, RC, C, W, Y, G, O, B
  • Power Method: Dual Powered: Battery or Hardwire
  • Display Size: 1.73 sq in.
  • Changeover: Manual
  • Operating Humidity Range: 5 to 90% RH, non-condensing
  • Cycles per Hour: Heating 2 - 6 CPH, Cooling 2 - 6 CPH
  • Cool Current: 0.02 A to 1.0 A (running)
  • Heat Current: 0.02 A to 1.0 A (running).
