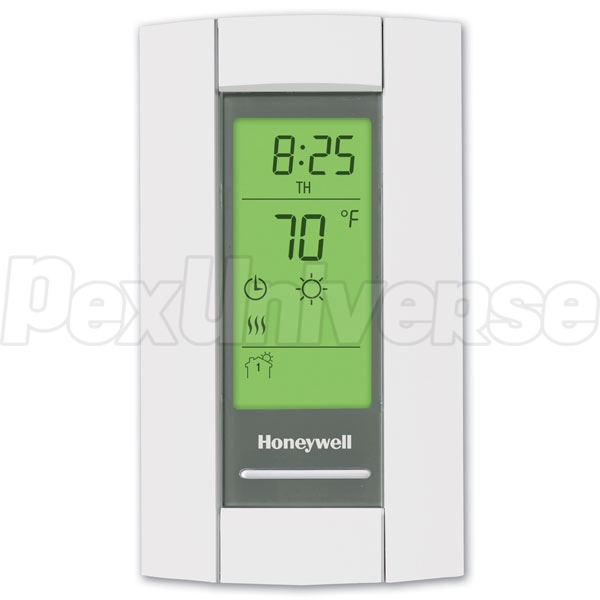

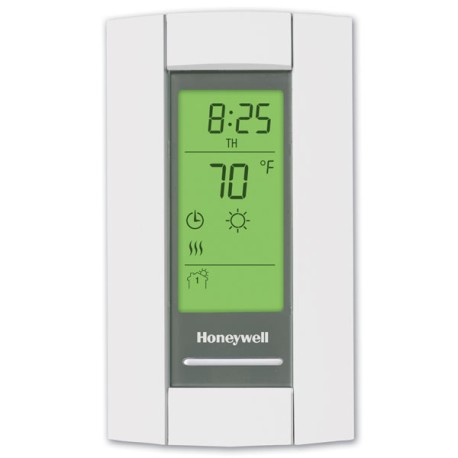

LineVoltPRO Programmable Line Voltage/Electric Heat Thermostat, DPST


Brand: Honeywell

Mfr Part#: TL8230A1003

UPC#: 085267262637

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$44.35 / each
x5 $214.75 / box & Free Shipping
(5 x $42.95 / each)
  • Description
  • Literature
  • Reviews (4)
  • FAQs (1)

Honeywell TL8230A1003 LineVoltPRO 8000 Thermostat features 7-day programming - maintains the pre-set program schedule for up to 20% energy savings, or modifies the schedule to fit your lifestyle. The TL8230A1003 has large, clear, backlit display (easy to read in various lighting conditions) and is soundproofed for quiet operation (reduces the clicking noise commonly heard with conventional thermostats).
The Honeywell LineVoltPRO 8000 digital thermostat provides electronic control of 208/240 Vac resistive rated electric baseboard heaters, radiant ceiling heat, convectors and fan forced heaters. If used as directed, Honeywell TL8230A1003 Double Pole electronic thermostat can save up to 10% on annual heating costs. Savings may vary based on geographic region and usage.


  • 7 day programmable;
  • Electronic temperature control;
  • On/Off or On/Standby switch allows you to turn the thermostat off at the end of the heating season;
  • Early start - ensures programmed temperature is reached by programmed time;
  • Heating indicator - at a glance confirmation that the heat is on;
  • Maintenance free - no batteries required;

Technical Specifications:

  • Application: Electric baseboards, convectors and fan forced heaters (resistive rated loads);
  • Programmability: 7 Day Program;
  • Color: Premier White;
  • Switching Action: DPST;
  • Dimensions: 4 7/8" high x 2 3/4" wide x 7/8" deep;
  • Mounting : Vertical;
  • Electrical Ratings: 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC;
  • Frequency: 50 Hz;
  • Frequency: 60 Hz;
  • Electrical Connections: 5.5" (140mm) tinned copper lead wires;
  • Operating Temperature Range: 32F to 122F;
  • Setting Temperature Range: 40F to 86F;
  • Stages: 1 Heat;
  • Sensor Element: Thermistor;
  • Approvals, Underwriters Laboratories Inc: UL Listed 9R12, File Number: E183695;
  • Display Size: 2.67 sq inch;
  • Voltage: 208/240 Vac;
LineVoltPRO Programmable Line Voltage/Electric Heat Thermostat, DPST has an average 5.0 out of 5 rating based on 4 user reviews.
Best in Class
By H.A.H. (from Garfield Heights, Ohio) on 9/27/2015
Purchased 24 units to convert a church school building to electric heat as boiler and pipes needed overhaul to the tune of $50,000 plus. Wiring and hook-up was a breeze. I highly recommend these programmable thermostats.
Was this review helpful?  Yes / No
Great Thermostat
By AT (from Cos Cob, CT) on 7/10/2012
Great device I highly recommend replacing any older bi-metal controller. Easy hook up and installation.Great price and fast shipping from PexUniverse.
Was this review helpful?  Yes / No
Installed and working great
By The Shootist (from Marion, Ohio) on 1/20/2012
I purchased 5 of these thermostats for a 2 bedroom house because the bi-metal thermostats that were only a year old did not regulate the heat very well. We watched the themometer and there was a 10 degree differance from the time they kicked on till when they shut off we were either hot or cold. The install was as easy as it gets and they are working perfectly.There is not a temp shift at all the house and bedrooms all stay a constant temp.The quality better than expected.Looking forward to see what kind of savings they will have on the electic bill.
Was this review helpful?  Yes / No
amazing product
By hook (from chicopee, ma) on 1/18/2012
these thermostats not only work awsome they are easy to program and look great. I love the fact that they have four different modes to program. This is a great product and this website was very fast with shipping, would work with again any day.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
How do you program it
Read 1 answer
Sides flap open to reveal control buttons. Detailed instructions can be found under the "Literature" tab in the manual.
Answered on 5/11/2016 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
