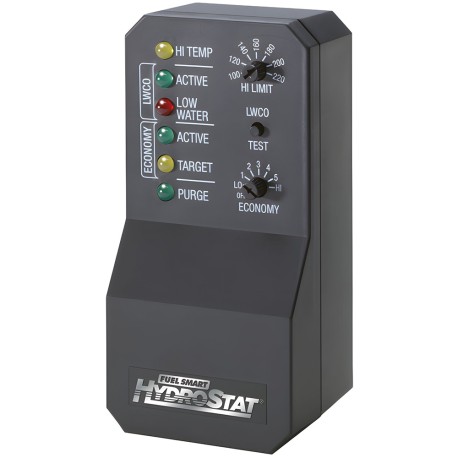

3000-Plus Fuel Smart HydroStat, Temperature Limit, LWCO & Reset Control for Gas Boilers, 24V
Brand: Hydrolevel
Part#: 48-3000
Model: HydroStat 3000-Plus
made in usa
Usually ships: within 5-6 business days
Hydrolevel Fuel Smart 3000-Plus HydroStart is a 24V universal triple-function control for Gas boilers with boiler reset, high-temperature limit and low water cut-off capabilities.

Features:
  • Universal triple-function control for gas boilers - Temperature Limit Control (TLC), Low Water Cut-Off (LWCO) & Boiler Reset
  • Replaces common high temperature Aquastats (installs on existing well)
  • Use with Hydrolevel Electro-Well for LWCO functionality
  • LWCO test button
  • Includes (3) wire harnesses for Honeywell R8285 (w/ optional thermal targeting) & for integrated ignition control module
  • Specifically designed for cold start boilers (but not for models w/ tankless DWH coil)
  • Economy / Thermal Targeting (optional) - adjusts boiler temperature based on number of zones and heating demand
  • Thermal Pre-Purge (optional) - conserves fuel by circulating latent heat in the boiler to the heating zone before firing the burner
  • (6) External colored diagnostic LED's

Technical Specifications:
  • System Type: Gas-Fired Hot Water Boilers
  • Reset: Automatic
  • Electro-Well Connection: 3/4" NPT or 1/2" NPT
  • Electrical Specs: 24V, 60 Hz; SPDT (Relay Type), NEMA 1 Enclosure
  • Burner Contacts: 50 VA @ 24VAC Pilot Duty
  • Temperature Operating Range (High Limit): 100°F - 220°F
