Automatic Sump/Effluent Pump w/ Vertical Float Switch, 25' cord, 1/3 HP, 115V
Brand: Liberty Pumps
Part#: 257-2

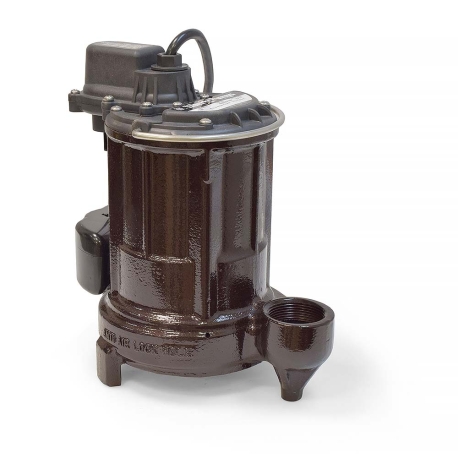

Liberty Pumps 257-2 is a 1/3HP Automatic Submersible Sump Pump with with magnetically operated vertical float VMF switch and 25ft power cord. Turn-on level of the not adjustable switch is 7" and turn-off level is 3-1/2". This pump can operate in a smaller 10" diameter sump pit..

The Liberty Pumps 257-2 has 1-1/2" NPT discharge, 1/2" solids-handling, 18' shut-off head, a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.

This Vertical Magnetic Float (VMF) model is not recommended for effluent applications due to their short On/Off cycle. Wide angle float models (Liberty Pumps 251-2 and 253-2) are better suited for effluent applications and are easily adjustable for different On/Off levels.

For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.

CAUTION: Do not let the pump run dry.


Applications:
For Sump and De-watering Applications only.
Features:
  • Rugged 1/3 HP motor, oil filled with thermal overload protection
  • 1/2" solids handling
  • 1-1/2" discharge
  • Hermetically sealed motor and switch cavities, and permanently lubricated bearings
  • Liberty's UNI-BODY casting - a solid, onepiece housing that eliminates the lower motor seal ring found on other pumps
  • Epoxy powder coat finish

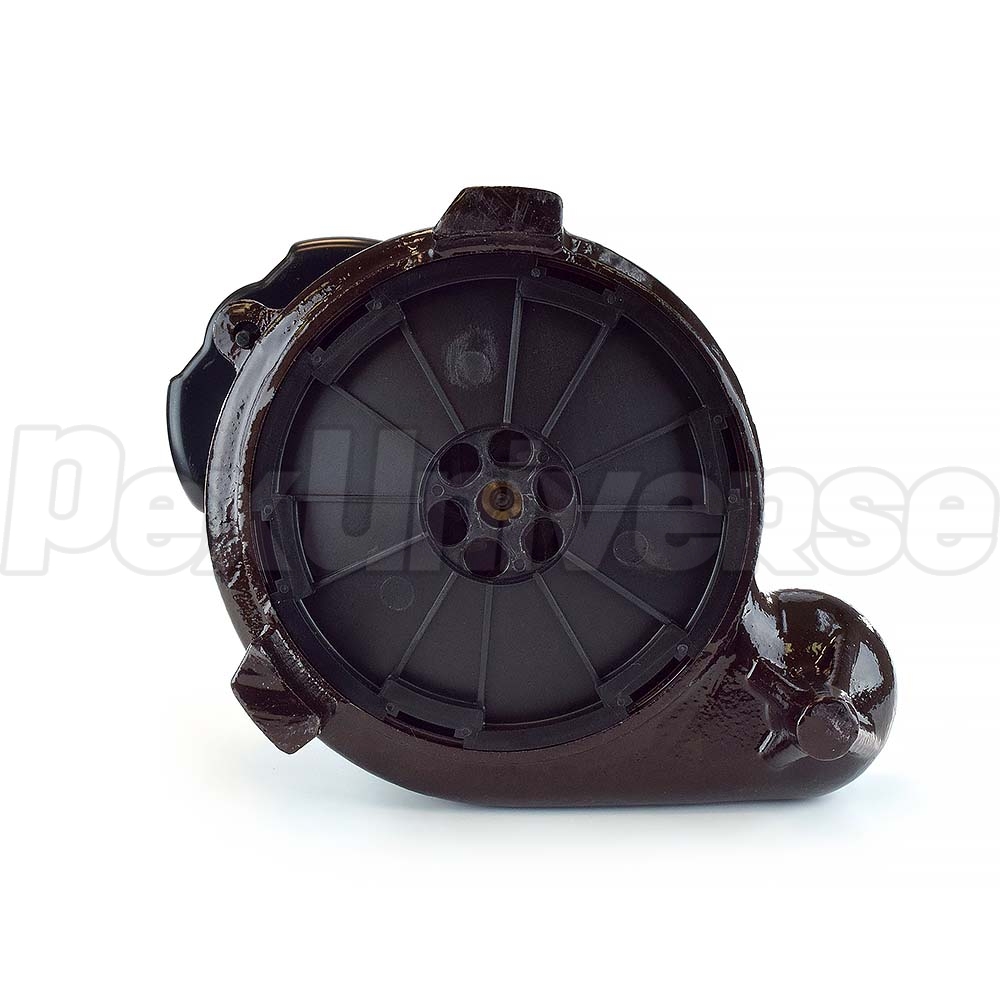

  • Vortex style impeller for superior solids-handling. Made of high temperature engineering polymer

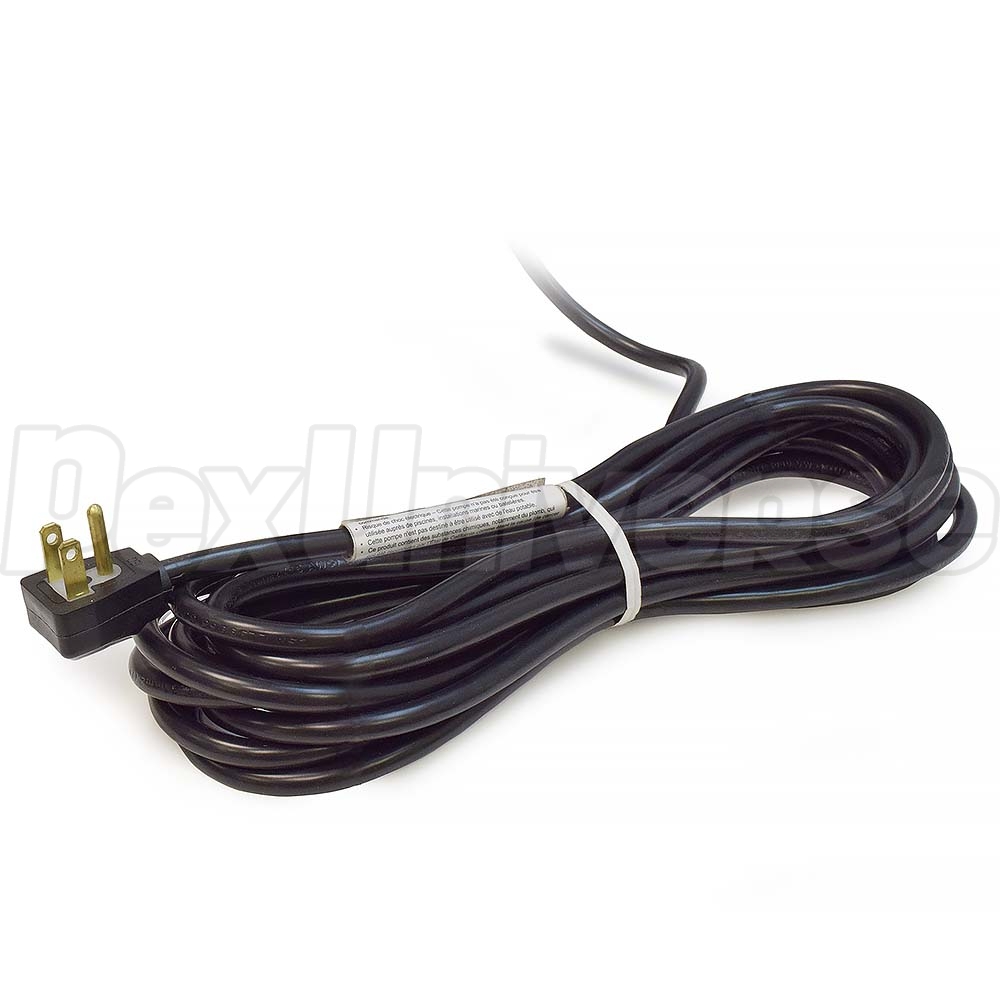

  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor
  • Fasteners - all non-corrosive stainless steel
  • 416 stainless steel rotor shaft

Technical Specifications:
  • Horsepower: 1/3 HP
  • Cord length: 25'
  • Discharge: 1-1/2"
  • Solids Handling: up to 1/2"
  • Shut-off Head: 18'
  • Voltage: 115V
  • Amps: 5.2
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 10.5"
  • Width: 9.6"
  • Weight: 23 lbs.
  • Minimum sump pit diameter: 10"
  • Minimum sump pit depth: 14"

Warranty:
3 years manufacturer's warranty
