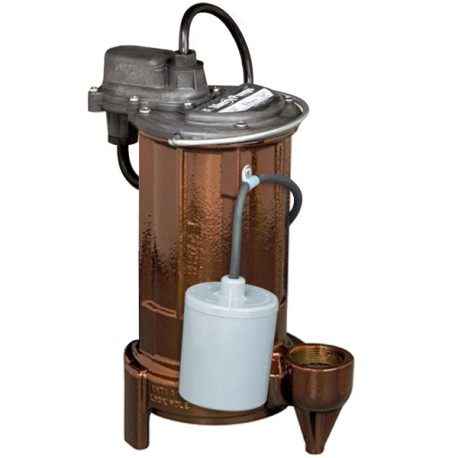

Liberty Pumps 291-5 Effluent Sump Pump

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 50' cord, 3/4 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: 291-5

UPC#: 671812120936

Usually ships: within 5-7 business days
Qty Price
$331.10 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews (1)
  • FAQs

The Liberty 291-5 is an automatic, submersible effluent/sump pump with a 3/4HP, single-phase motor that can reach a max flow of 78GPM at 5' of head. The Liberty 291-5 automatic submersible effluent sump pump has a shut-off of 48' of head and comes with a quick disconnect 50' power cord. This Liberty sump/effluent pump is equipped with a wide angle float switch, has a discharge of 1-1/2" NPT and can handle solids up 3/4". The Liberty 291 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow.


The Liberty 291-5 is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. Liberty's unique Uni-Body casting will provide years of reliable performance.


  • Wide-Angle Float with Quick Disconnect design;
  • Liberty's unique, one-piece "Uni-Body" casting;
  • Permanently lubricated upper and lower bearings;
  • Oil-filled, hermetically sealed motors with thermal overload protection;
  • Stainless steel, removable bottom screen;
  • 416 Stainless steel rotor shaft;
  • All fasteners - corrosion-resistant stainless steel;
  • Semi-Open impeller permitting passage of solids up to 3/4";
  • Epoxy powder coat finish;
  • 1-1/2" Discharge;
  • Stainless steel bottom screen - easily removable;
  • Maximum fluid temperature 140F;

Technical Specifications:

  • Discharge Size: 1 1/2" FNPT;
  • Solids Handling Capability: 3/4" dia.;
  • Listing: UL/CSA;
  • HP: 3/4;
  • Volts: 115;
  • Phase: 1;
  • Hertz: 60;
  • Amps: 10.4;
  • Flow @ 5': 78 GPM;
  • Flow @ 10': 72 GPM;
  • Flow @ 20': 58 GPM;
  • Thermal overload temp: 248F;
  • Shut-off Head: 48';
  • Cord Length: 50';
  • Minimum Sump Diameter: 14";
  • Height: 13";
  • Weight: 31 lbs;


3 years manufacturer's warranty
Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 50' cord, 3/4 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.
Quality product
By Real Engineer (from Reno, NV) on 8/4/2016
I just received and tested my pump and it worked right out of the box without any problems and moves a lot of water with great pressure. It is also very quiet considering the amount of water it pumps. These people obviously take pride in their products and workmanship. The pump is well built using quality materials and construction methods. I can't find anything to be concerned about with the pump itself and I hope it will have a long, trouble free life. I would like to see the locked rotor current included in the manual so I can know what size breaker to use on the electric service.
