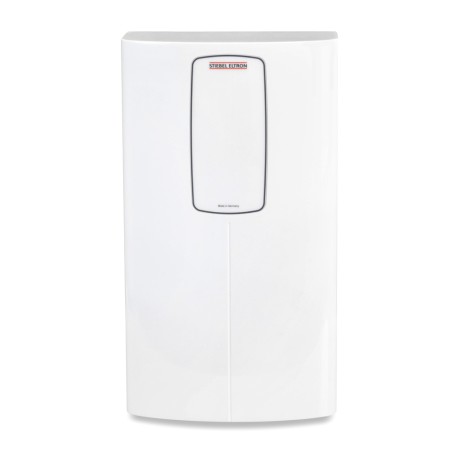

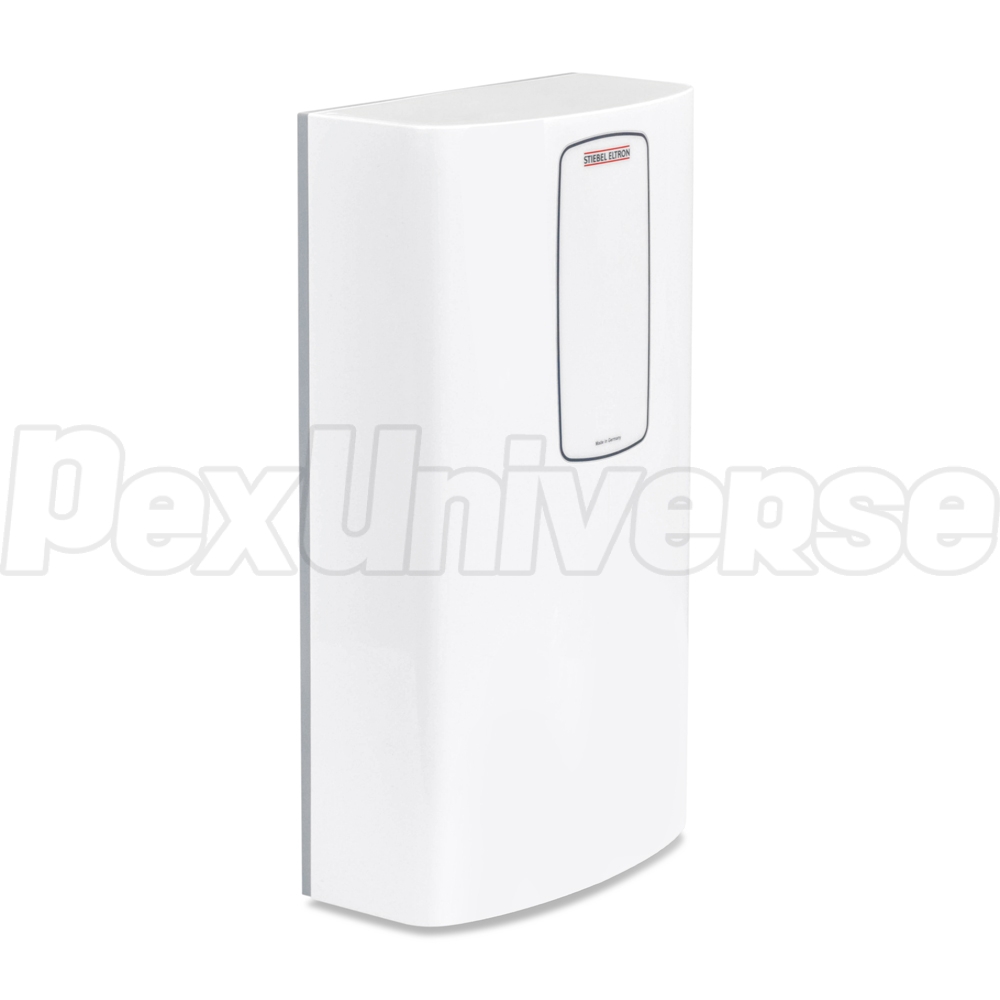

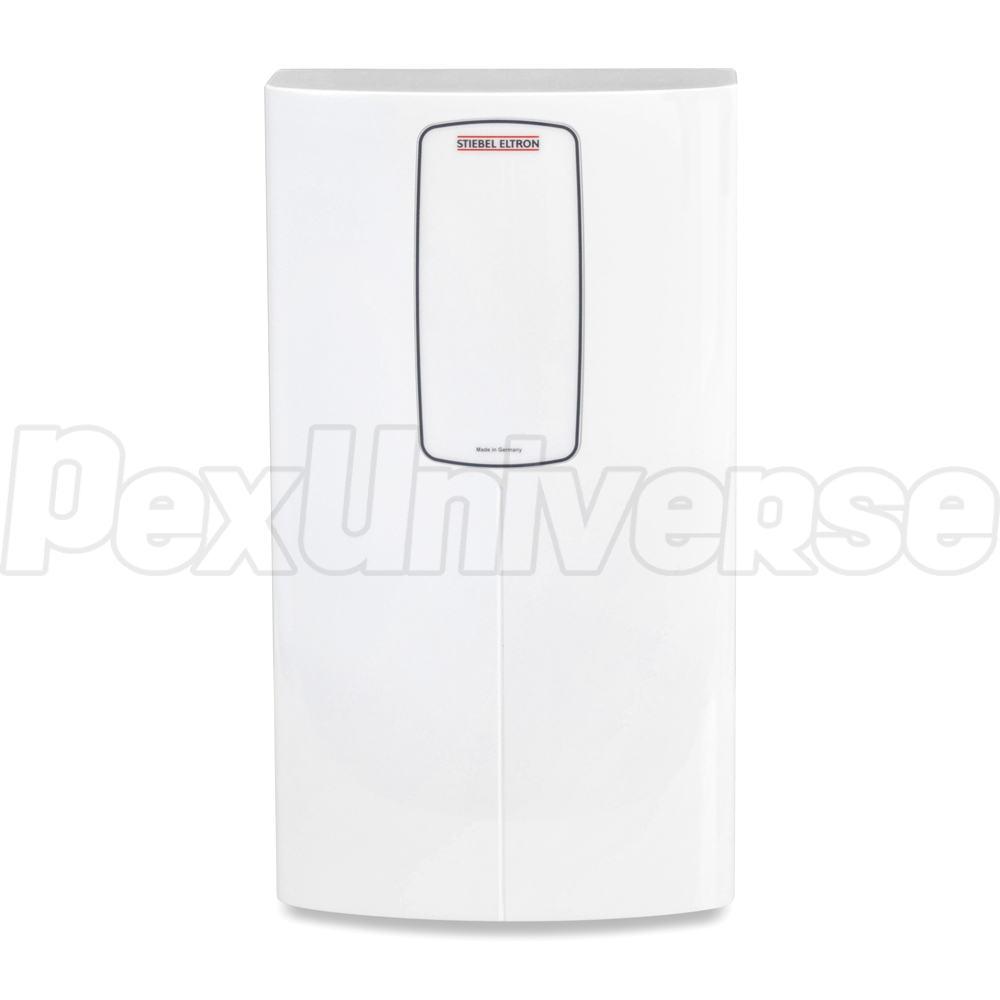

Stiebel Eltron DHC 10-2 Classic, Electric Tankless Water Heater, 9.6/7.2kW, 240/208V
Brand: Stiebel Eltron
Part#: DHC-10-2-Classic
This product has been discontinued. No direct replacement is available at this time.
A step above typical POU (Point-Of-Use) water heaters, DHC Classic series offers a better heating element design and incorporates an internal flow adjustment screw, which allows to fine-tune the hot water temperature as needed. Compact and elegant, can be installed installed inside the cabinet or out. DHC 10-2 Classic is the most powerful model in the DHC series, and will provide a 80°F+ temperature increase at 0.8 GPM, 65°F at 1.0 GPM or ~52°F at 1.25 GPM. Important: this model does not come with a flow restrictor or an aerator and has a minimum activation flow rate of 0.8 GPM - be sure determine your fixture flow rate and groundwater temperature prior to purchasing to ensure proper performance. DHC 10-2 Classic is well suited for all US regions and output hot water temperature would vary depending on fixture flow.

  • American Hometec: AHQ-C10 (setting 1)
  • Bosch: US 9
  • Chronomite: SR-40
  • Eemax: EX8208, EX95
  • Hubbell: R009-2S
  • Powerstream / Powerstar: RP1, AE 9.5
  • Seisco: POU90-240, POU78-208

  • Manually adjustable hot water flow (via internal screw) - allows to fine-tune the amount of water flowing through the water heater to achieve desired temperature
  • Superior reliability, built-in dry-fire and failure protection, high limit safety switch
  • No PRV's, expansion tanks or circulating valves needed
  • No standby heat losses
  • Perfect for single-fixture applications in both residential and commercial settings
  • Made in Germany

Technical Specifications:
  • Voltage: 240 or 208V (hardwired)
  • Output: 9.6kW at 240V (7.2kW at 208V)
  • Amperage: 40A at 240V (35A at 208V)
  • Min. recommended wire size: 8/2 AWG
  • Min. recommended curcuit breaker size: 40A at 240V (35A at 208V)

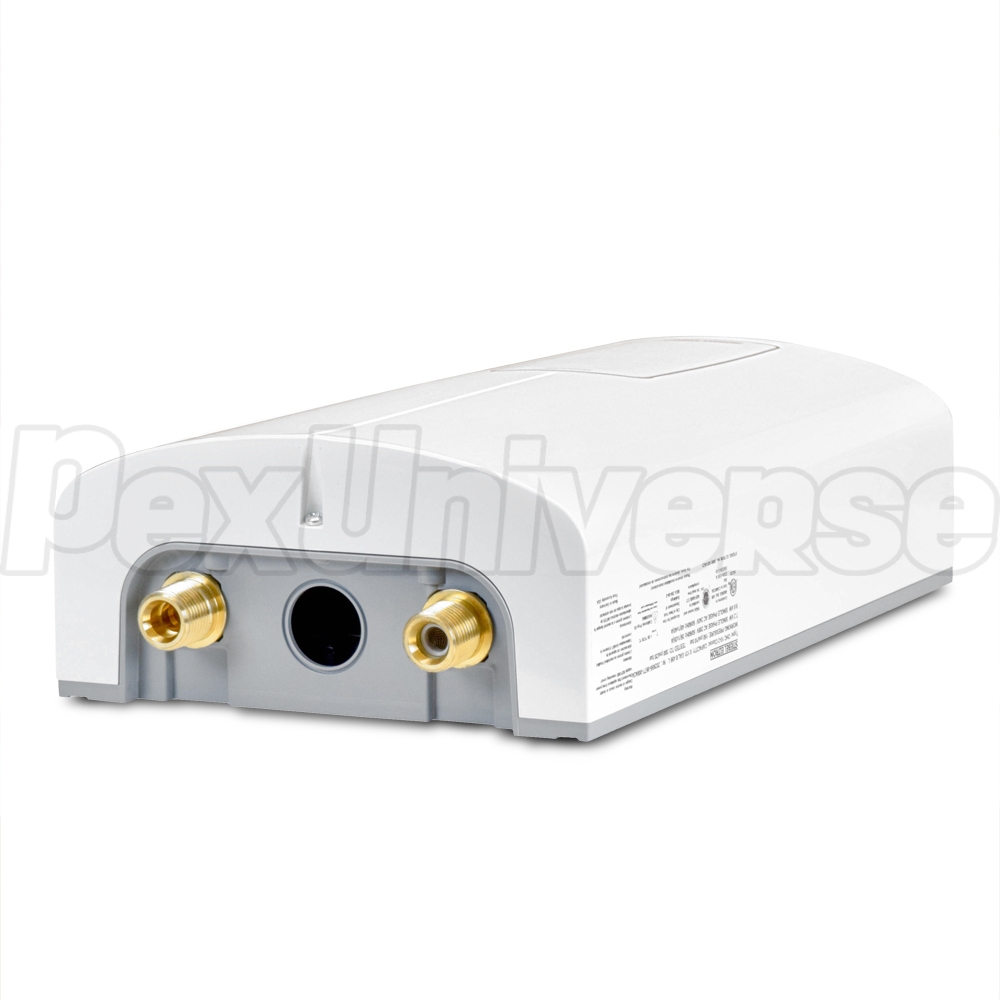

  • Water Connections: 1/2" Male NPT
  • Min. activation flow rate: 0.8 gpm
  • Nominal water volume: 0.13 gal
  • Max. operating pressure: 150 psi
  • Tested to pressure: 300 psi
  • Dimensions (Height x Width x Depth): 14-3/16" x 7-15/16" x 3-7/8"
  • Weight: 5.5 lb

7 years leakage / 3 years parts
