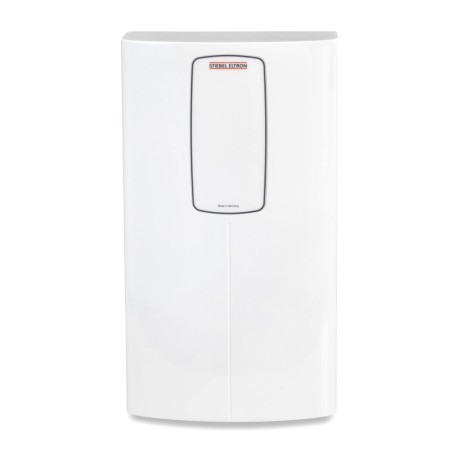

Stiebel Eltron DHC 3-1 Classic, Electric Tankless Water Heater, 3.0kW, 120V Stiebel Eltron
Stiebel Eltron DHC 3-1 Classic, Electric Tankless Water Heater, 3.0kW, 120V
Brand: Stiebel Eltron
Part#: DHC-3-1-Classic
This product has been discontinued. No direct replacement is available at this time.

Description

A step above typical POU (Point-Of-Use) water heaters, DHC Classic series offers a better heating element design and incorporates an internal flow adjustment screw, which allows to fine-tune the hot water temperature as needed. Compact and elegant, can be installed installed inside the cabinet or out. DHC 3-1 Classic model comes with a 0.5 GPM faucet aerator which must be installed in order to restrict water flow and allow the heating element to do its job (an existing aerator of same size or another flow-restricting alternative can also be used). Important: this model will provide a maximum of 40F temperature increase at 0.5GPM and best suited for southern-most parts of the US with groundwater temperatures upwards of 65°F (so that output how water temperature would be 40+65=105F or greater).

Cross-References:
  • Eemax: SP3012
  • Powerstream / Powerstar: RP3, AE 3.4
  • Seisco: POU30-120

Features:
  • Manually adjustable hot water flow (via internal screw) - allows to fine-tune the amount of water flowing through the water heater to achieve desired temperature
  • Superior reliability, built-in dry-fire and failure protection, high limit safety switch
  • No PRV's, expansion tanks or circulating valves needed
  • No standby heat losses
  • Perfect for single-fixture applications in both residential and commercial settings
  • Made in Germany

Technical Specifications:
  • Voltage: 120V (hardwired)
  • Output: 3.0kW
  • Amperage: 25A
  • Min. recommended wire size: 10/2 AWG
  • Min. recommended curcuit breaker size: 25A
  • Water Connections: 1/2" Male NPT
  • Min. activation flow rate: 0.32 gpm
  • Nominal water volume: 0.13 gal
  • Max. operating pressure: 150 psi
  • Tested to pressure: 300 psi
  • Dimensions (Height x Width x Depth): 14-3/16" x 7-15/16" x 3-7/8"
  • Weight: 5.5 lb

Warranty:
7 years leakage / 3 years parts
