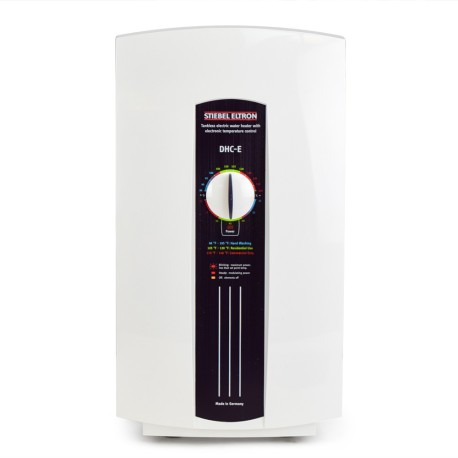

A unique model in it's class, DHC-E 8/10 offers substantial flexibility in power supply and output options. A 2-stage design (set to stage 1 at factory) allows to increase or descrease the power output as needs change (see page 6 of Installation Manual for details). Can be used with 208, 220, 230 or 240V supply. An external temperature control dial allows to easily fine-tune the water temperature without aerators, flow restrictors or complex calculations. Compact, powerful and elegant, this unit is ideal for multiple smaller fixtures or a single larger fixture both in residential and commercial settings.
Cross-References:
- Chronomite: M-30, M-40, E-60L, E-70L, E-80L, E-90L, E-60S, E-70S, E-80S, E-90S
- EcoSmart: ECO 8
- Eemax: HA008240, EX75T, EX95T, EX8208T
- iHeat: M-7, M-9
- Rheem: RTEX-08
- Seisco: POU70-240, POU80-240, POU90-240, POU78-208
- Titan: N-75, N-85, N-100
- DHC-E 8/10 is two models in one - power output of 7.2 kW (Stage 1) or 9.6 kW (Stage 2) can be selected during/after installation via a jumper
- Hot water temperature can be adjusted from 86 to 140°F via an external dial, allowing for easy code compliance
- Can be used for multiple small or a single large fixture (such as shower) under some conditions
- Maintains a constant water temperature even if the flow varies
- Superior reliability, built-in dry-fire and failure protection, high limit safety switch
- Made in Germany
DHC-E 8
- Voltage: 240 or 208V (hardwired)
- Output: 7.2kW at 240V (5.4kW at 208V)
- Amperage: 30A at 240V (26A at 208V)
- Min. recommended circuit breaker size: 30A
- Min. recommended wire size: 10 AWG at 240V (8 AWG at 208V)
- Max. temperature increase above ambient water temp.: 240V - 66F @ 0.75 GPM, 49F @ 1.00 GPM, 33F @ 1.50 GPM
- Max. temperature increase above ambient water temp.: 208V - 49F @ 0.75 GPM, 37F @ 1.00 GPM, 25F @ 1.50 GPM
- Working pressure: 150 psi
- Tested to pressure: 300 psi
- Water Connections: 1/2" NPT
- Dimensions (Height x Width x Depth): 14-3/16 x 7-1/8" x 4-1/8"
- Weight: 5.9 lb
DHC-E 10
- Voltage: 240 or 208V (hardwired)
- Output: 9.6kW at 240V (7.2kW at 208V)
- Amperage: 40A at 240V (35A at 208V)
- Min. recommended circuit breaker size: 40A at 240V (35A at 208V)
- Min. recommended wire size: 10 AWG at 240V (8 AWG at 208V)
- Max. temperature increase above ambient water temp.: 240V - 87F @ 0.75 GPM, 66F @ 1.00 GPM, 44F @ 1.50 GPM
- Max. temperature increase above ambient water temp.: 208V - 66F @ 0.75 GPM, 49F @ 1.00 GPM, 33F @ 1.50 GPM
- Working pressure: 150 psi
- Tested to pressure: 300 psi
- Water Connections: 1/2" NPT
- Dimensions (Height x Width x Depth): 14-3/16 x 7-1/8" x 4-1/8"
- Weight: 5.9 lb
7 years leakage / 3 years parts
