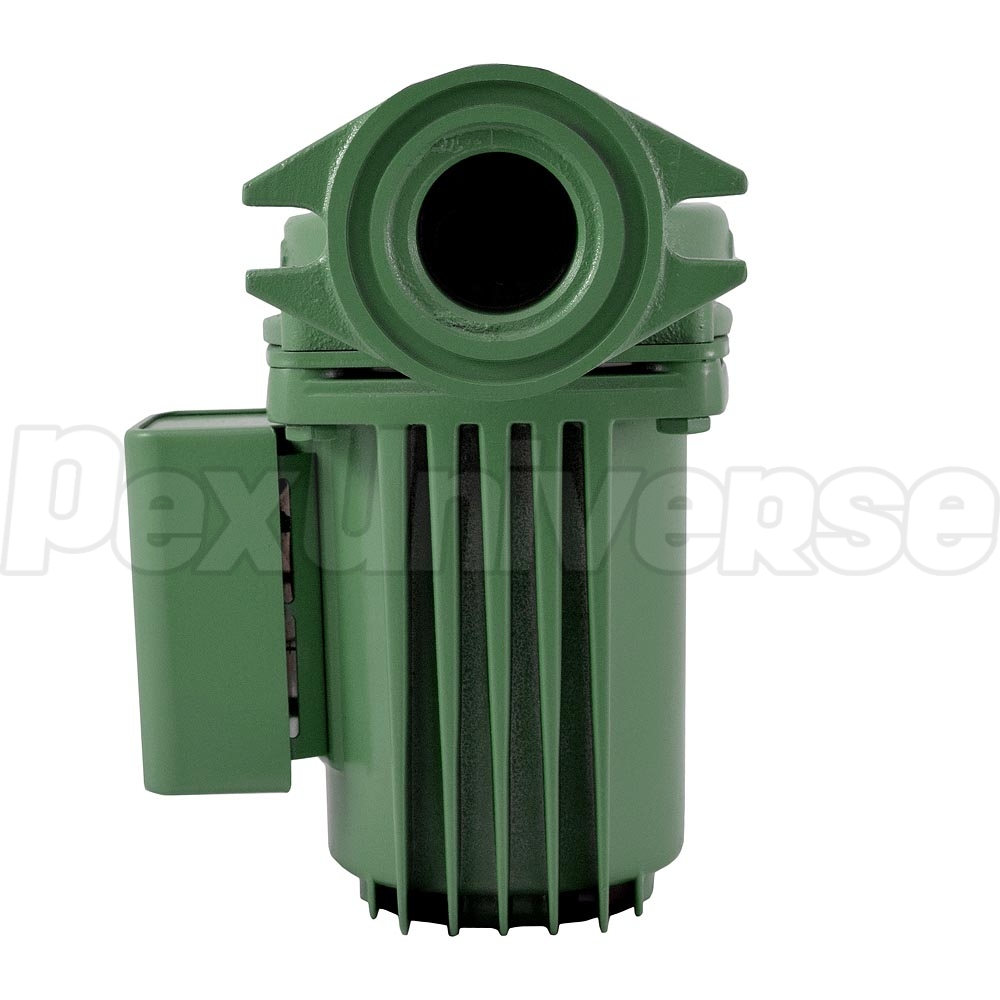

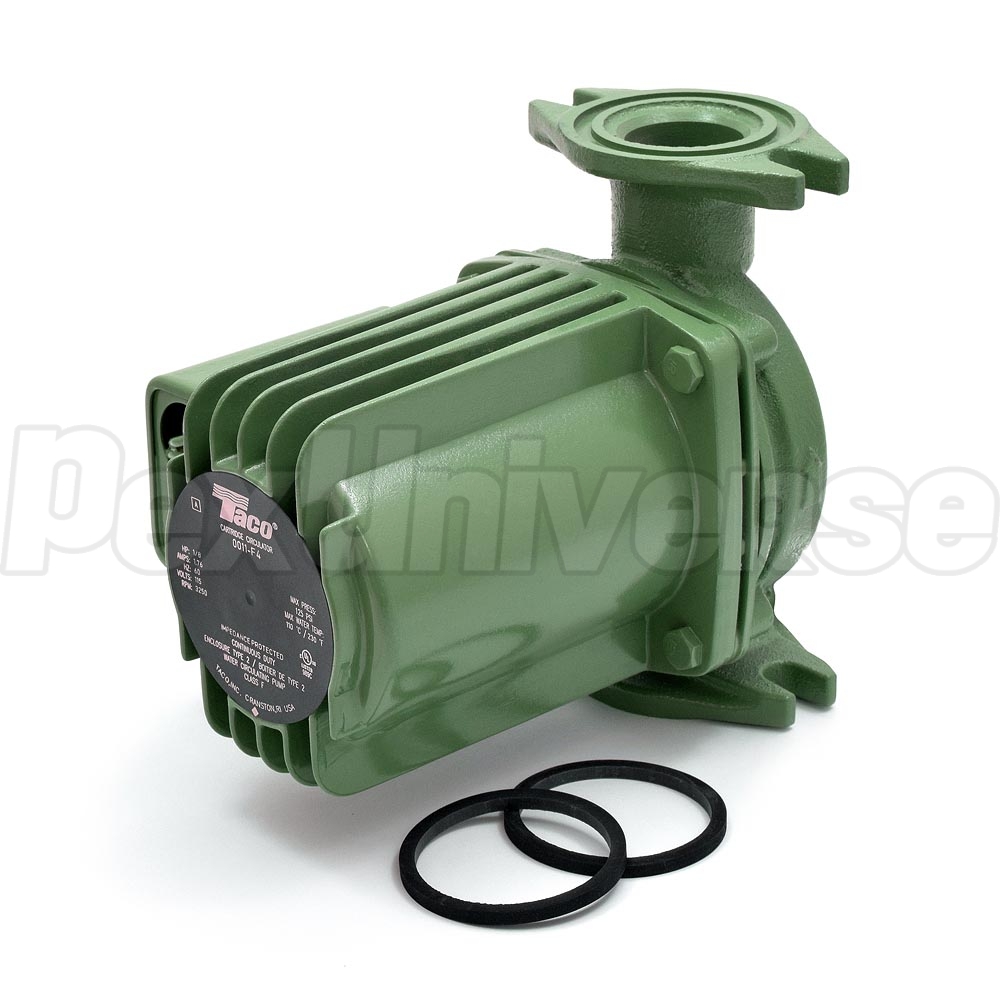

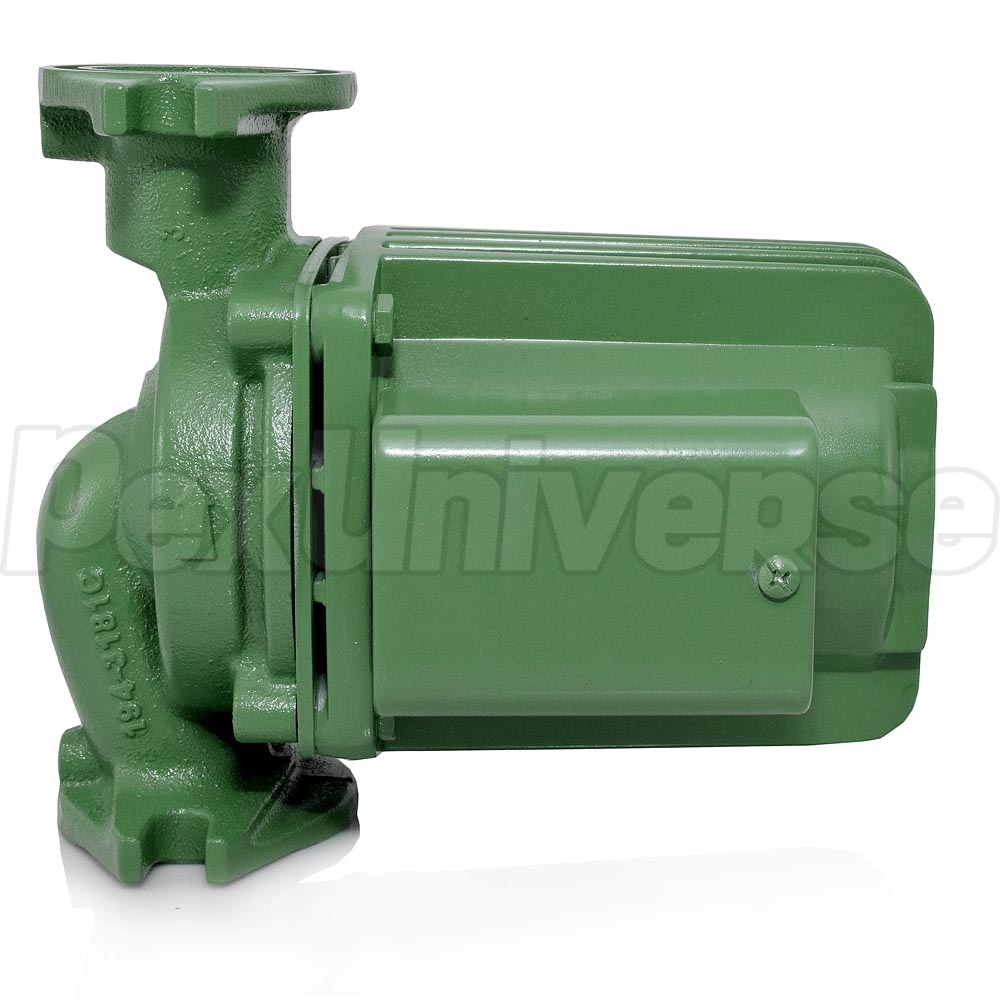

0011 Circulator Pump, 1/8 HP, 115V
Brand: Taco
Part#: 0011-F4
In Stock
Usually ships: within 1 business day

Taco 0011-F4 Circulator Pump is designed for high head and medium flow applications, that are common for large residential and light commercial applications, such as closed loop hydronic heating. The Taco 0011-F4 Circulator Pump is perfect for boilers with a high-pressure drop, as well as fan coil units, heat exchangers, large radiant heat and heat recovery/geothermal systems. Universal flange to flange dimensions and flange orientation of the Taco 0011-F4 model allows it to serve as a replacement for many other models. This circulator is compact, has low power consumption and ideal for high-efficiency jobs.


Applications:
  • High Pressure Drop Boilers
  • Medium/Large Hydronic, Geothermal and Radiant Heating projects
  • Wood Boilers / Furnaces
  • Hydro-Air Fan Coils

Read more

Cross-References:
  • Grundfos UP26-96F
  • Grundfos UPS26-99FC spd 3
  • Wilo Star 30

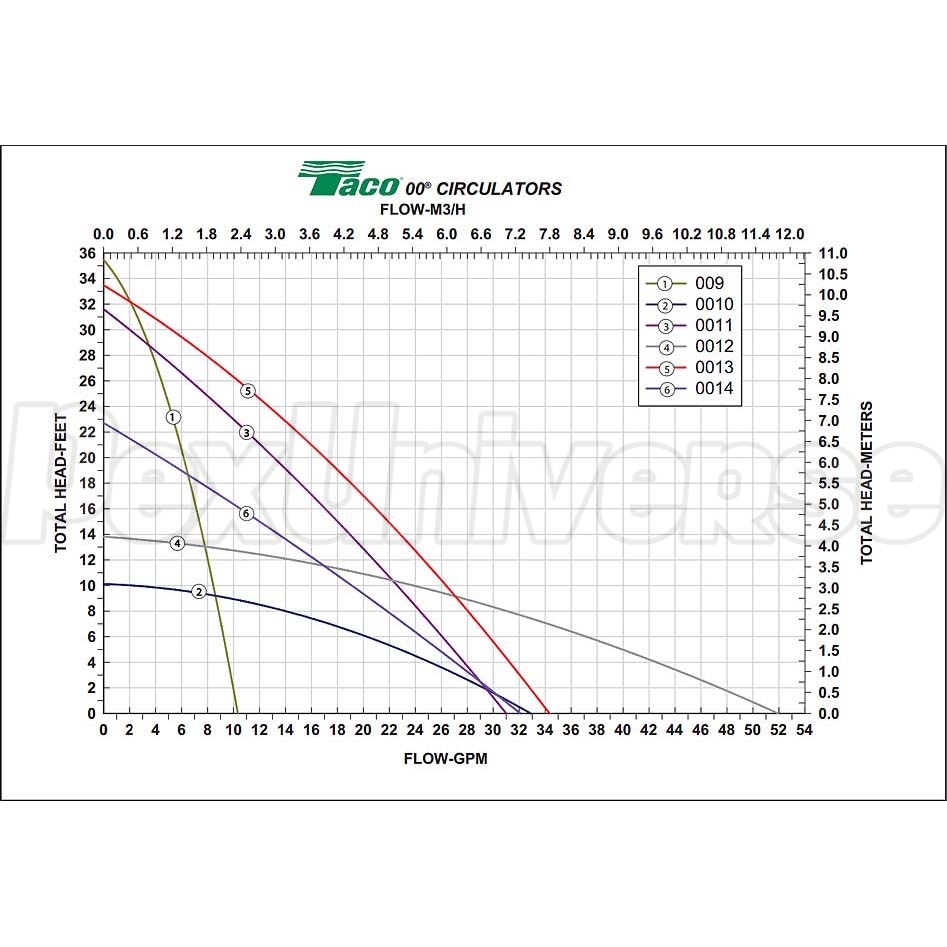

Technical Specifications:
  • Flow Range: 0 – 31 GPM
  • Head Range: 0 – 31 Feet
  • Minimum Fluid Temperature: 40˚F (4˚C)
  • Maximum Fluid Temperature: 230°F (110˚C)
  • Maximum Working Pressure: 125 psi
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 1.76A;
  • HP: 1/8HP;

Read more

Warranty:
3-year manufacturer's warranty
