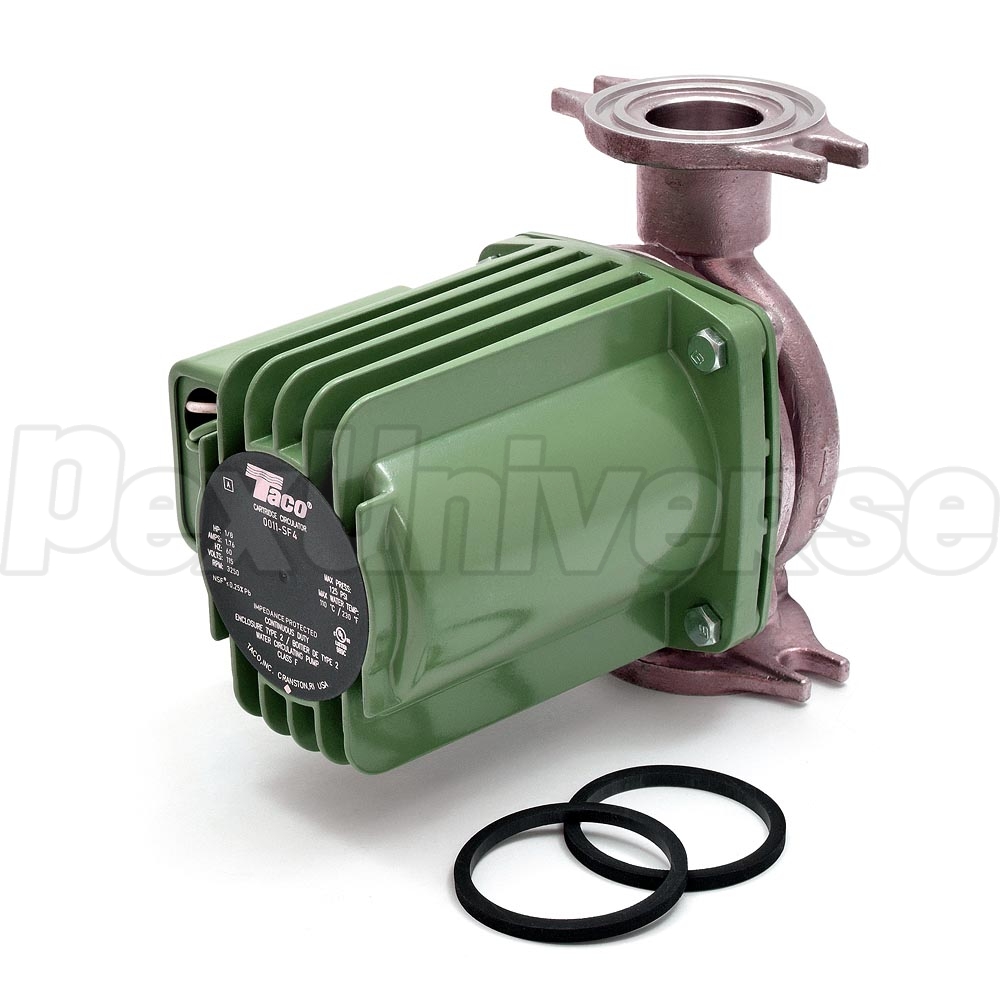

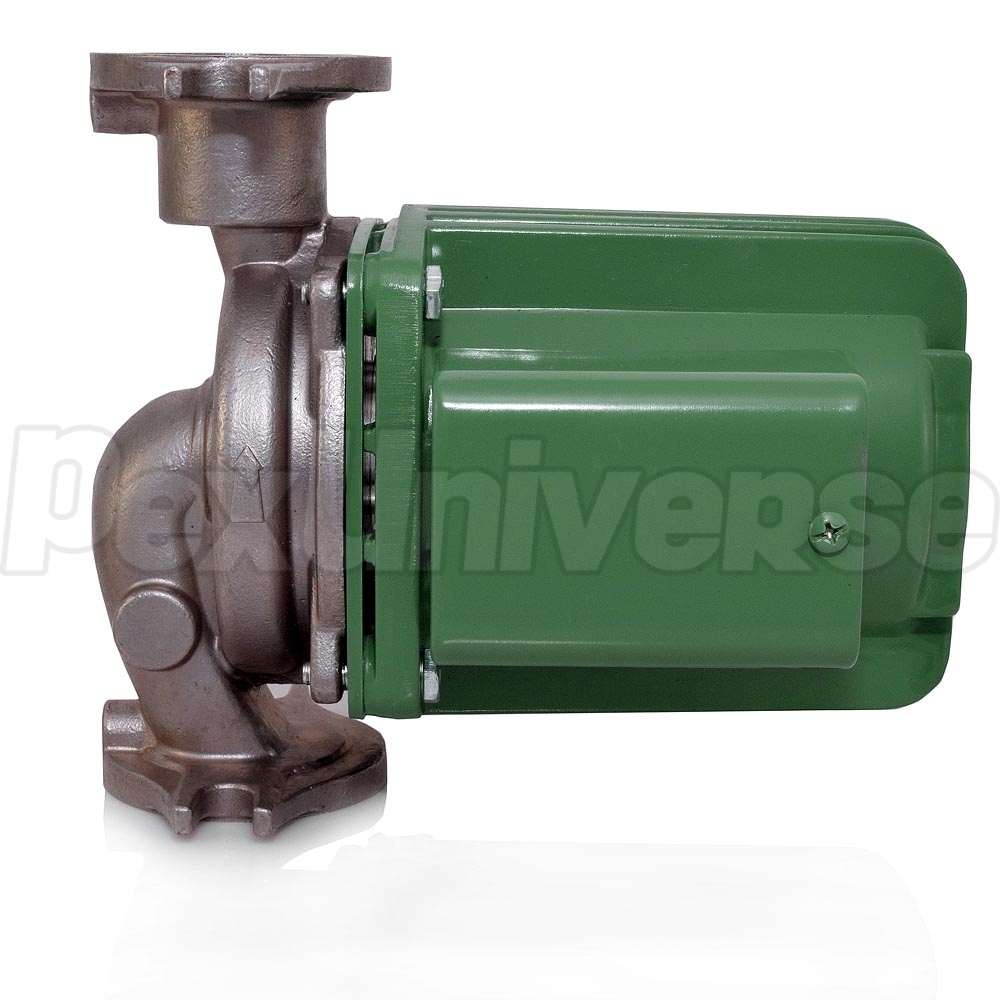

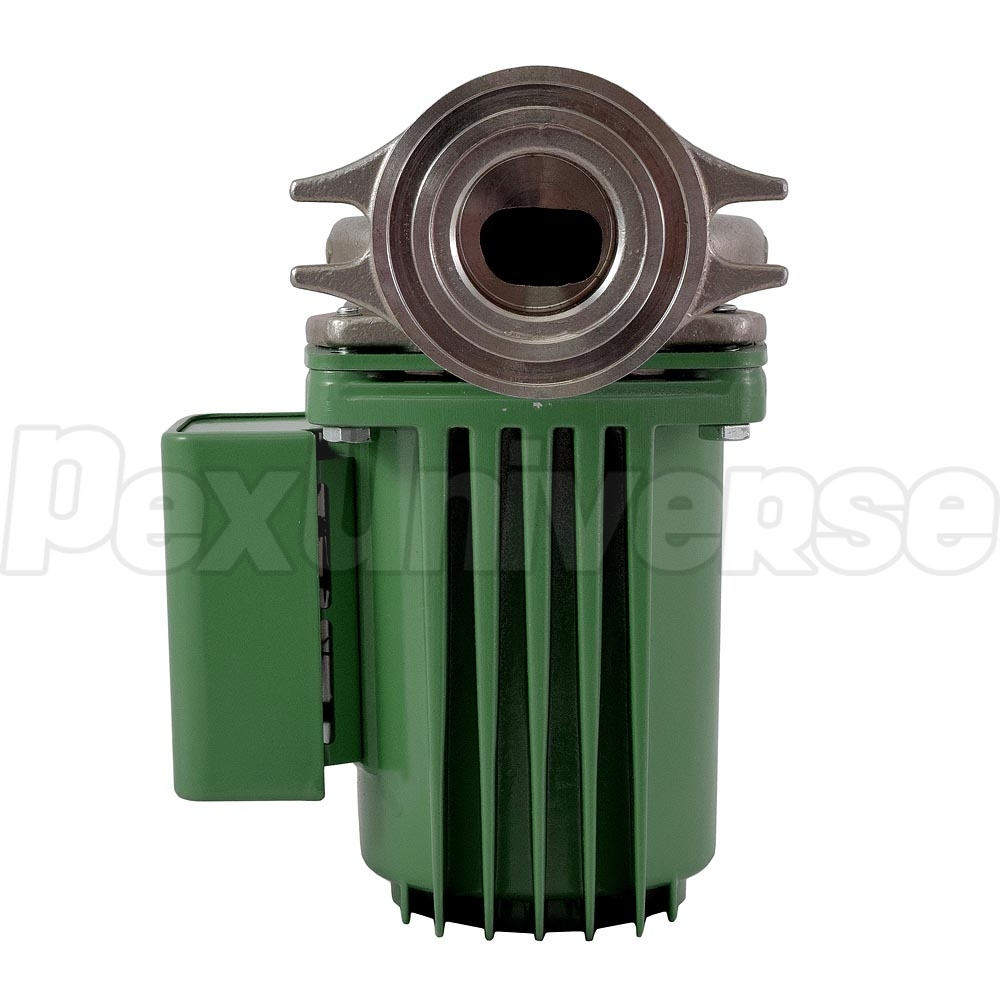

0011 Stainless Steel Circulator Pump, 1/8 HP, 115V
Brand: Taco
Part#: 0011-SF4
In Stock
Usually ships: within 1 business days
Taco 0011-SF4 Stainless Steel Circulator Pump is designed for high head and medium/high flow applications, that are common for large residential and light commercial projects, such as open loop hydronic heating and chilled water cooling systems. Taco 0011-SF4 Circulator pump is ideal for boilers with high pressure drop, fan coil units, heat exchangers as well as large radiant heating and heat recovery / geothermal systems.
Features a replaceable cartridge which allows for easy service instead of replacing the entire circulator.
Universal flange to flange dimensions and flange orientation of the Taco 0011-SF4 circulator allows it to replace many other models.

Applications:
  • High-Pressure Drop Boilers
  • Medium and Large Open/Closed Loop Hydronic, Geothermal and Radiant Heating projects
  • Wood Boilers / Furnaces
  • Hydro-Air Fan Coils

Read more

Technical Specifications:

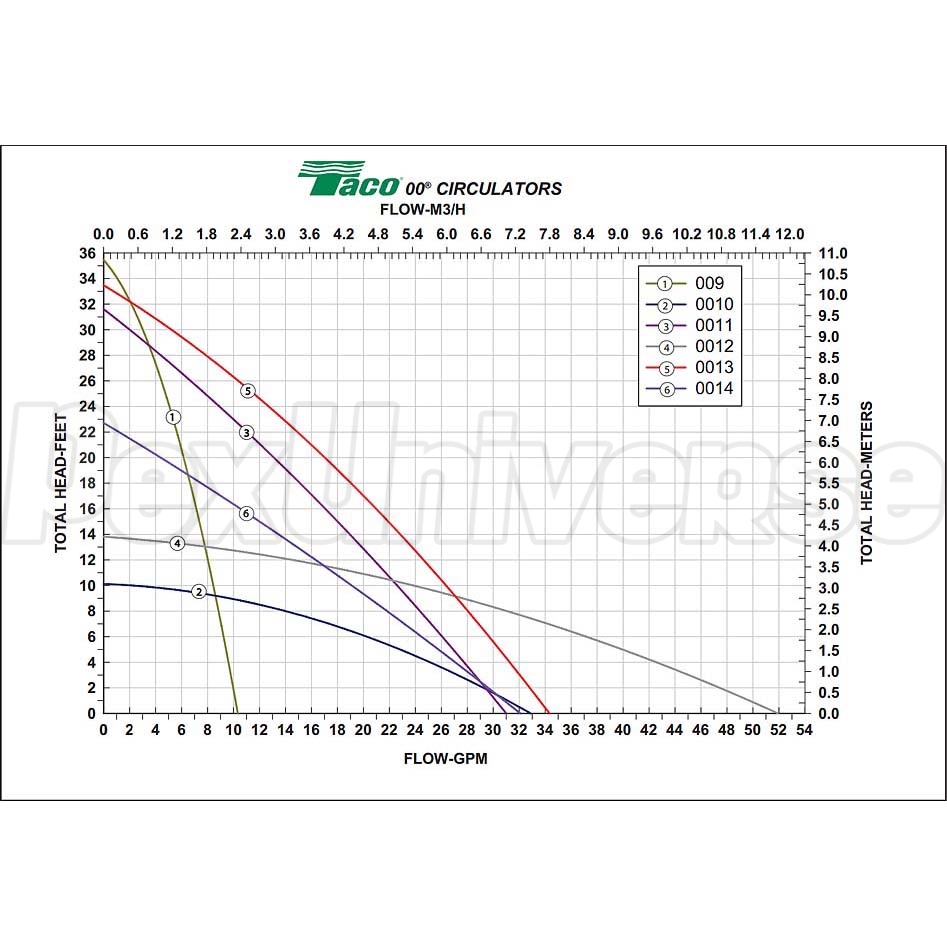

  • Flow Range: 0 – 31 GPM;
  • Head Range: 0 – 31 Feet;
  • Minimum Fluid Temperature: 40˚F (4˚C);
  • Maximum Fluid Temperature: 230°F (110˚C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 1.76A;
  • HP: 1/8HP;

Read more

Warranty:
3 year manufacturer's warranty.
Ask a Question
what's the difference between a stainless pump versus a cast iron? Can both be used in an "outdoor" wood furnace?
Helpful? Yes No
Stainless steel circulators are corrosion-resistant and can be used in open-type (oxygen-rich) systems, including outdoor wood furnace installations. Typical cast iron models should only be used in closed systems with adequate air elimination.
By PexUniverse Customer Service on 12/10/2013
