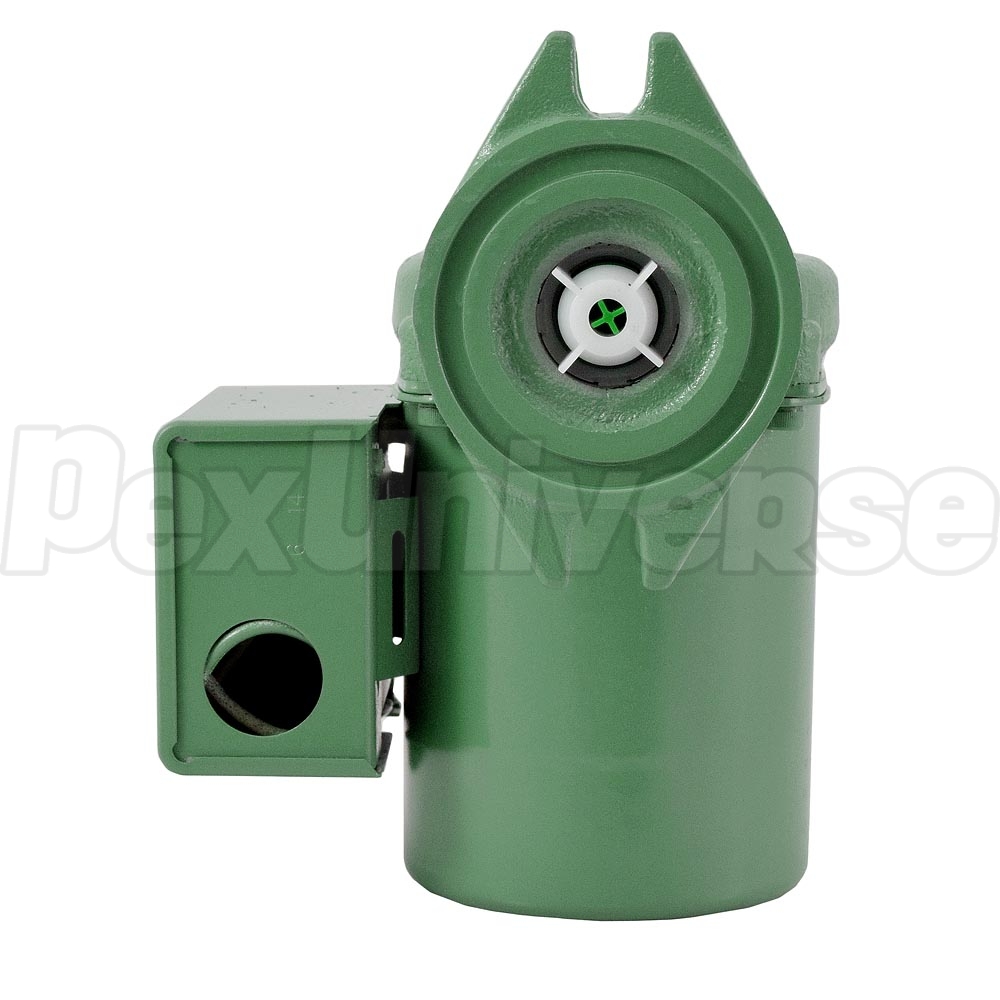

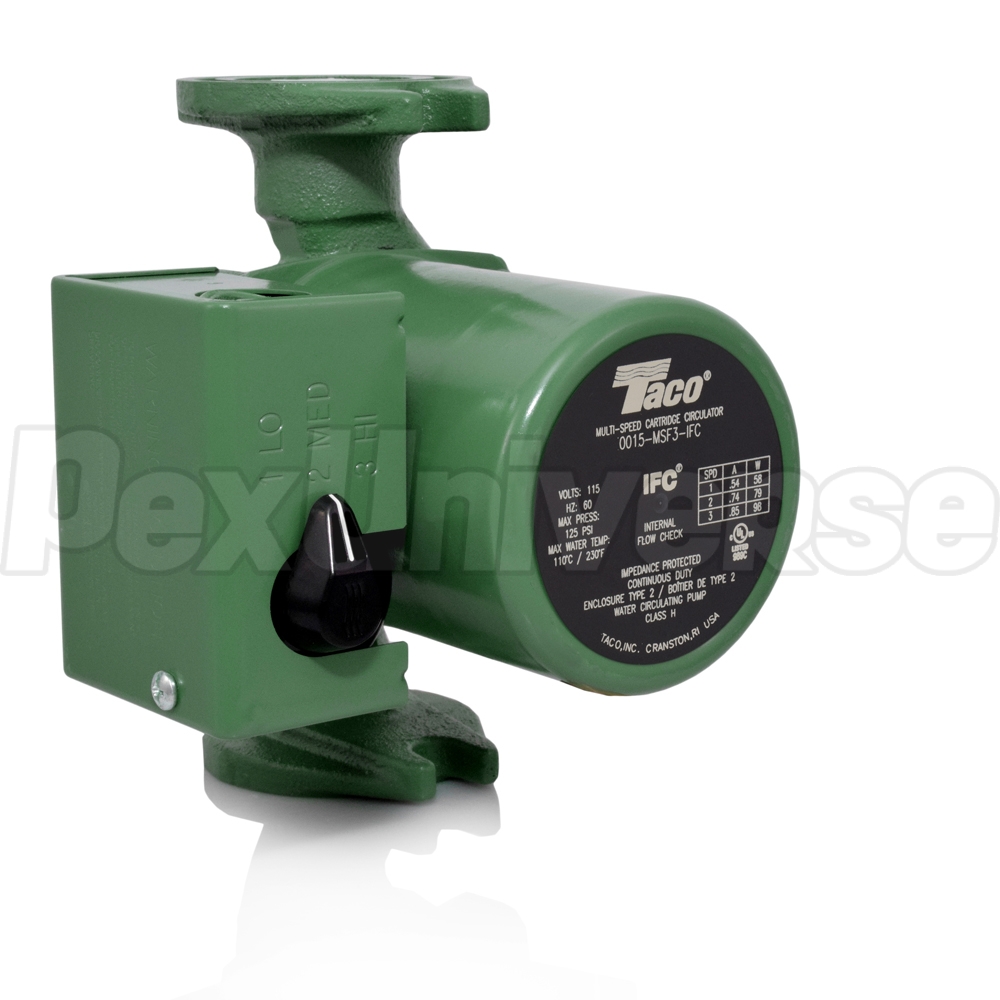

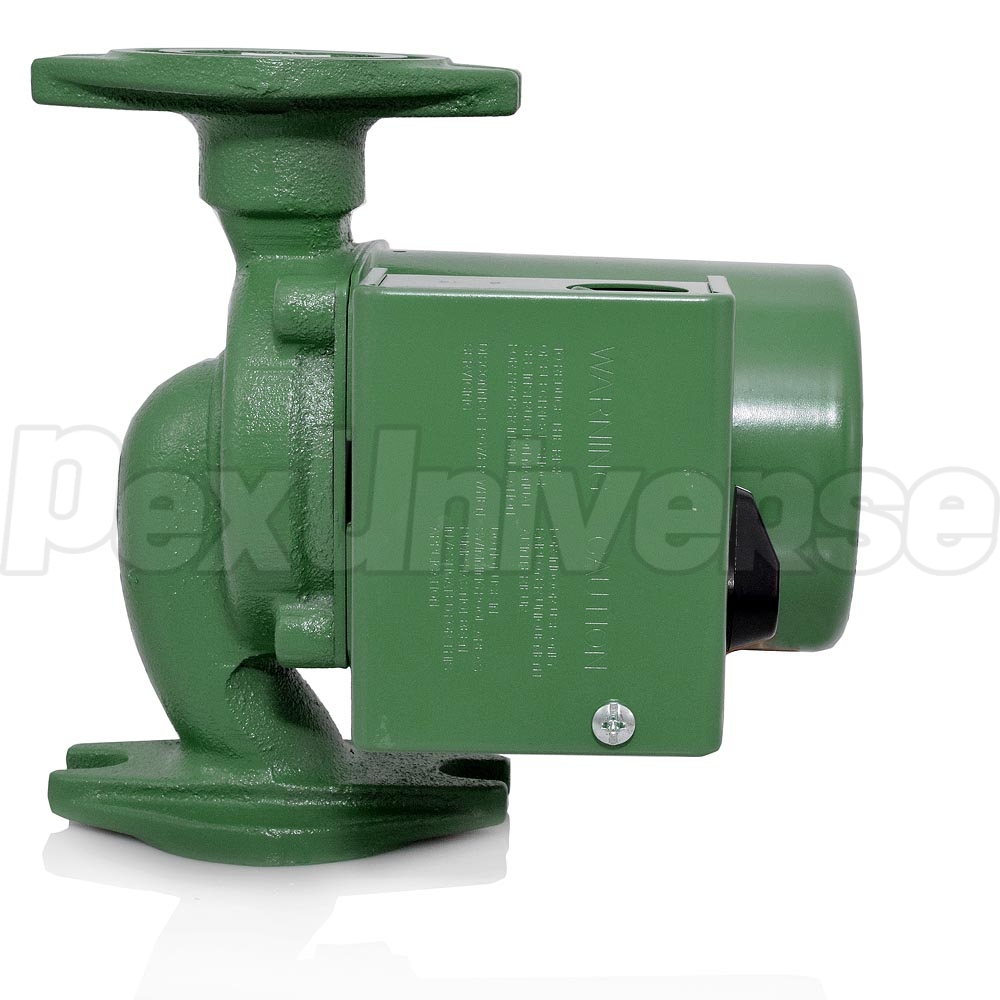

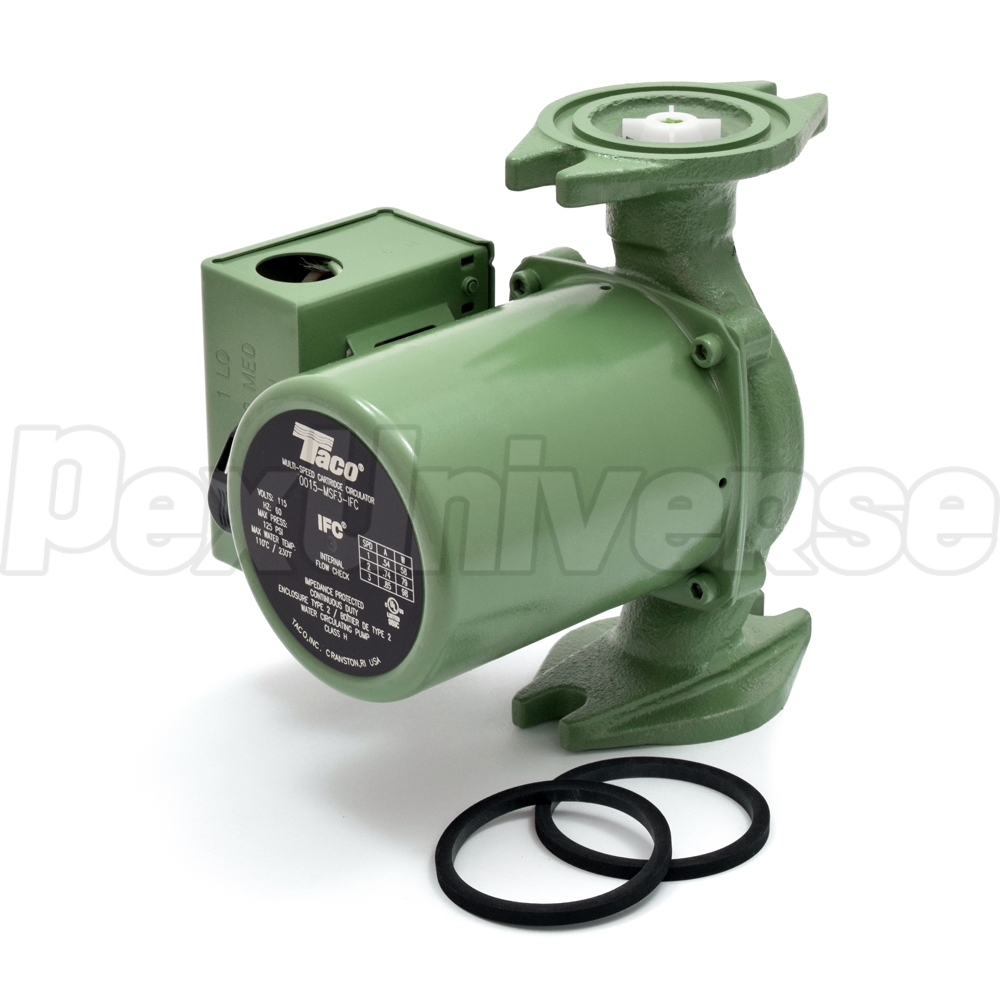

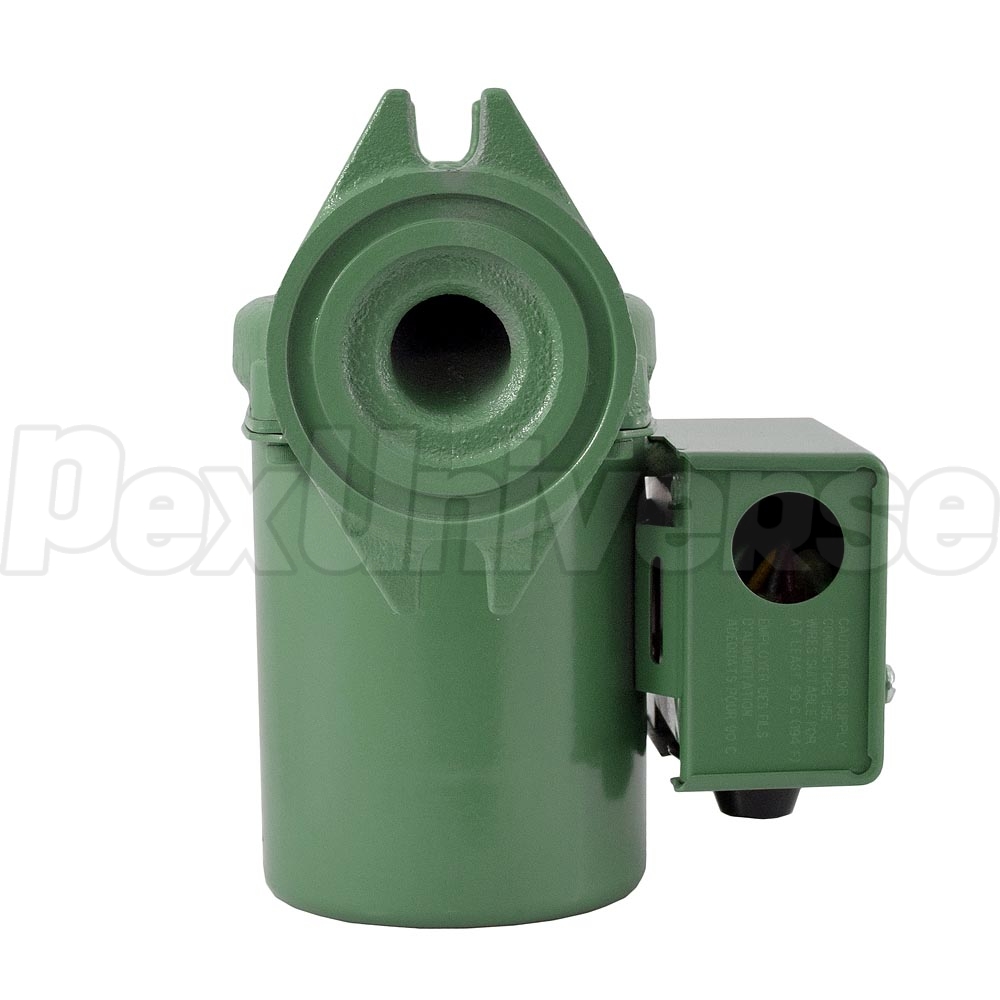

0015 3-Speed Circulator Pump w/ IFC, 1/20 HP, 115V

Taco 0015-MSF3-IFC is a 3-Speed Circulator Pump and is designed for a wide range of applications in hydronic, radiant heating and other recirculation project types.

3-Speed switching capability of the 0015-MSF3-IFC Taco Circulator Pump provides a convenient way to match a wide combination of PEX / Copper tube diameters and length of runs.  Taco 00R has the highest starting torque in its class and a removable, high-flow Integral Flow Check (IFC) that reduces pressure drop and prevents gravity flow.

Taco 0015-MSF3-IFC 3 spd replaces:

The older Taco 00R-MSF1-IFC, 00R-MSF1-4IFC models,

Grundfos UPS15-58FC,

Armstrong Astro 50-3, and

Wilo Star21SF.

Applications:
• Hydronic Heating/Cooling
• Radiant Heating
• Zoning with Pumps
• Hydro-Air Fan Coils

• And many others

Electrical Data:
Voltage: 115V;

Hertz: 60Hz;

Phase: 1;

Amps @ Speed 1: 0.71A;

Amps @ Speed 2: 0.82A;

Amps @ Speed 3: 0.98A;

HP: 1/20HP;

RPM: 3250;

Motor Type: Permanent Split Capacitor Thermally Protected;

Technical Specifications:

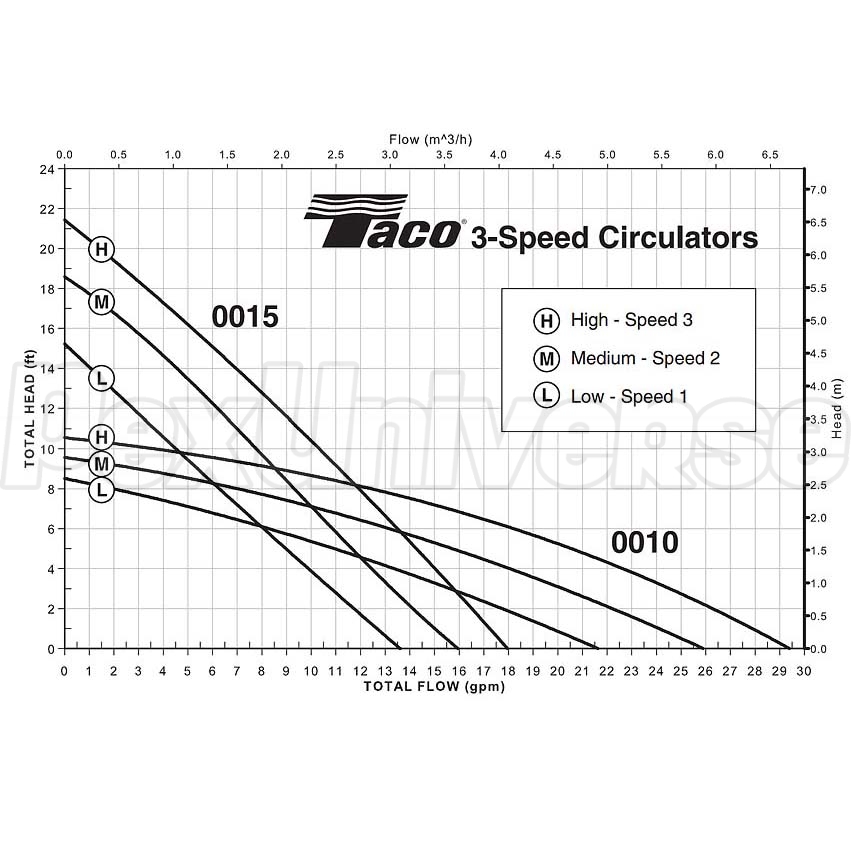

• Flow Range (GPM): 0-18;
• Head Range (FT): 0-21;
• Minimum Fluid Temperature: 40˚F (4˚C);
• Maximum Fluid Temperature: 230°F (110˚C);
• Maximum Working Pressure: 125 psi;
• Connection Sizes: 3/4”, 1”, 1-1/4”, 1-1/2” Flanged.
