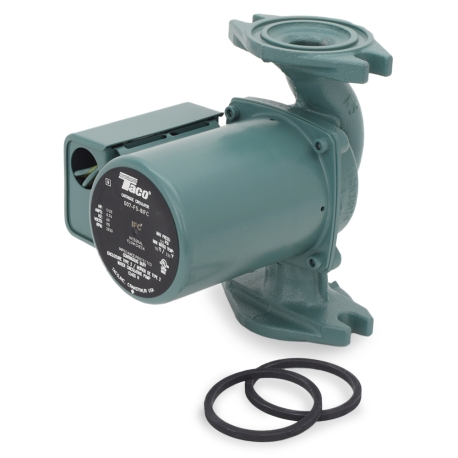

007 Circulator Pump w/ IFC, 1/25 HP, 115V
Brand: Taco
Part#: 007-F5-8IFC

Taco 007-F5-8IFC Circulator Pump with an IFC (Integral Flow Check) is designed to simplify piping, reduce installation costs and improve system performance. With an IFC (Integral Flow Check) inside the Taco 007-F5-8IFC model pump there is no need to install separate in-line flow check. The IFC reduces a pressure drop and increases flow performance versus in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.


Applications:
  • Hydronic Heating/Cooling;
  • Radiant Heating;
  • Zoning with Pumps;
  • Hydro-Air Fan Coils;
  • And others.

Features:
  • Low-Lead Compliant
  • IFC (Integral Flow Check)
  • Unique replaceable cartridge
  • Unmatched reliablility
  • Quiet,efficient Operation
  • Self lubricating, no mechnical seal
  • Wide range of applications
  • Flanged connection
  • Maintenance free.

Technical Specifications:
  • Horsepower: 1/25 HP
  • Flow Range: 0 – 17 GPM
  • Head Range: 0 – 8.5 Feet
  • Minimum Fluid Temperature: 40°F (4°C)
  • Maximum Fluid Temperature: 230°F (110°C)
  • Maximum Working Pressure: 125 psi
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Rotated Flanged.
  • Material: Cast Iron
  • Voltage: 115V
  • Hertz: 60Hz
  • Phase: 1
  • Amps: 0.71A
  • Approvals: cULus (Indoor use only), NSF/ANSI 372.

Warranty:
3 year manufacturer's warranty.
