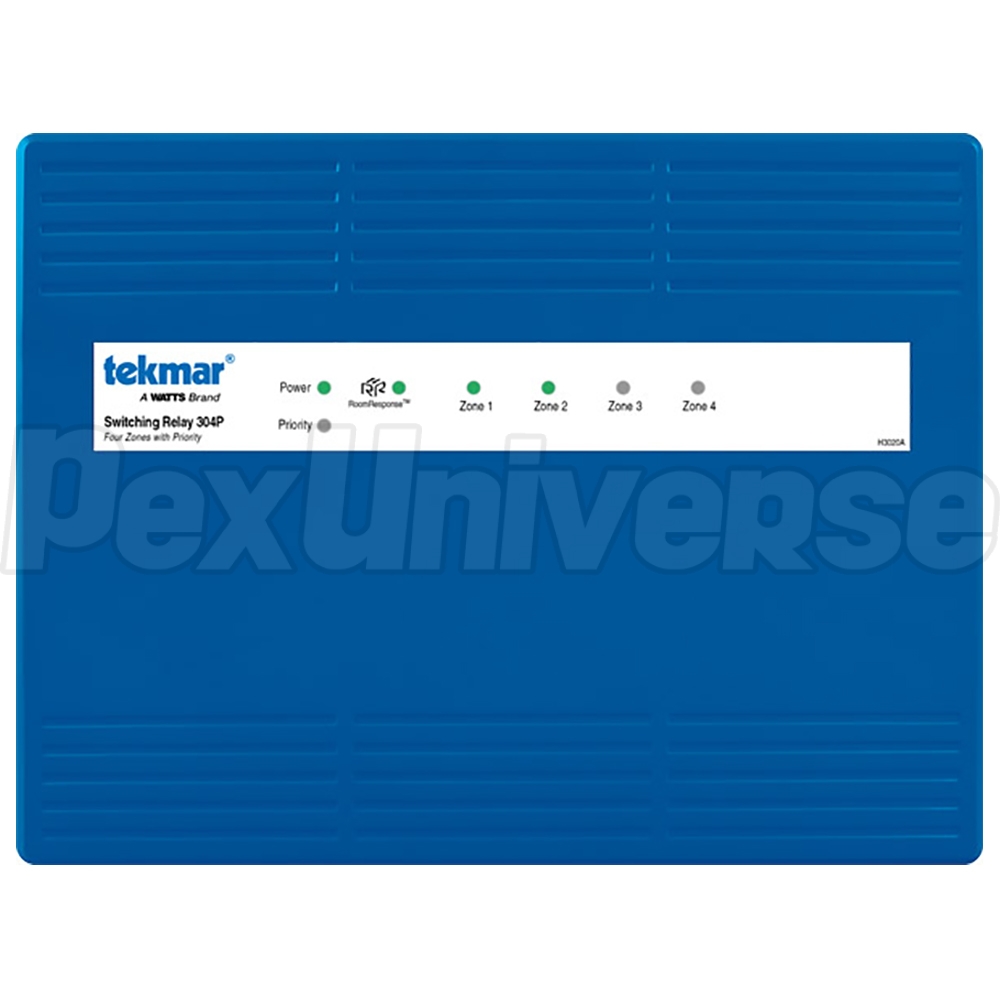

304P, 4-Zone Switching Relay w/ Priority, Expandable Tekmar
304P, 4-Zone Switching Relay w/ Priority, Expandable
Brand: Tekmar
Part#: 304P
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Tekmar 304P 4-Zone Switching Relay connects up to (4) low-voltage (24V) thermostats and (4) circulating pumps, providing heating to zoned radiant floor and hydronic (baseboard/radiator) heating systems. There is an optional priority of Zone 1 over the Zones 2 through 4. Zone 1 can also be used to provide heat to an indirect hot water tank. Universally compatible with all thermostat and circulator brands.

Features:
  • Compatible with all 24V thermostat brands (Tekmar, Honeywell, etc.)
  • Compatible with all 115/120V circulator pump brands (Taco, Grundfos, Armstrong, Wilo, etc.)
  • Unlimited zone expansion
  • RoomResponse signal for energy efficiency
  • Priority override, pump exercise and post purge
  • External LED indicators
  • Fused pump and transformer protection (includes two spare fuses)
  • CSA approved

Technical Specifications:
  • Zones: 4
  • Control: Microprocessor Control
  • Power supply: 115 VAC, 60 Hz, 17.3 A
  • Transformer Rating: 40 VA at 24 VAC
  • Control load: 7 VA at 24 VAC
  • Fuses: T5A, 250 V slow blow glass fuse, two spare fuses included
  • Pump relays: 115 VAC, 5 A, 1/3 HP, 17.3 A combined
  • Boiler XX end switch: 24 VAC, 5 A
  • DHW end switch: 24 VAC, 5 A
  • Mod boiler output: 0-10 V 500 ohm min load impedance, 4-20 mA 1 k ohm max load impedance
  • Materials: ABS Plastic (Cover), Galvanized Steel (Base) NEMA type 1
  • Dimensions: 8-3/16" x 10-12/18" x 2-3/8"
  • Packaged weight: 5 lbs

Warranty:
3-year warranty
