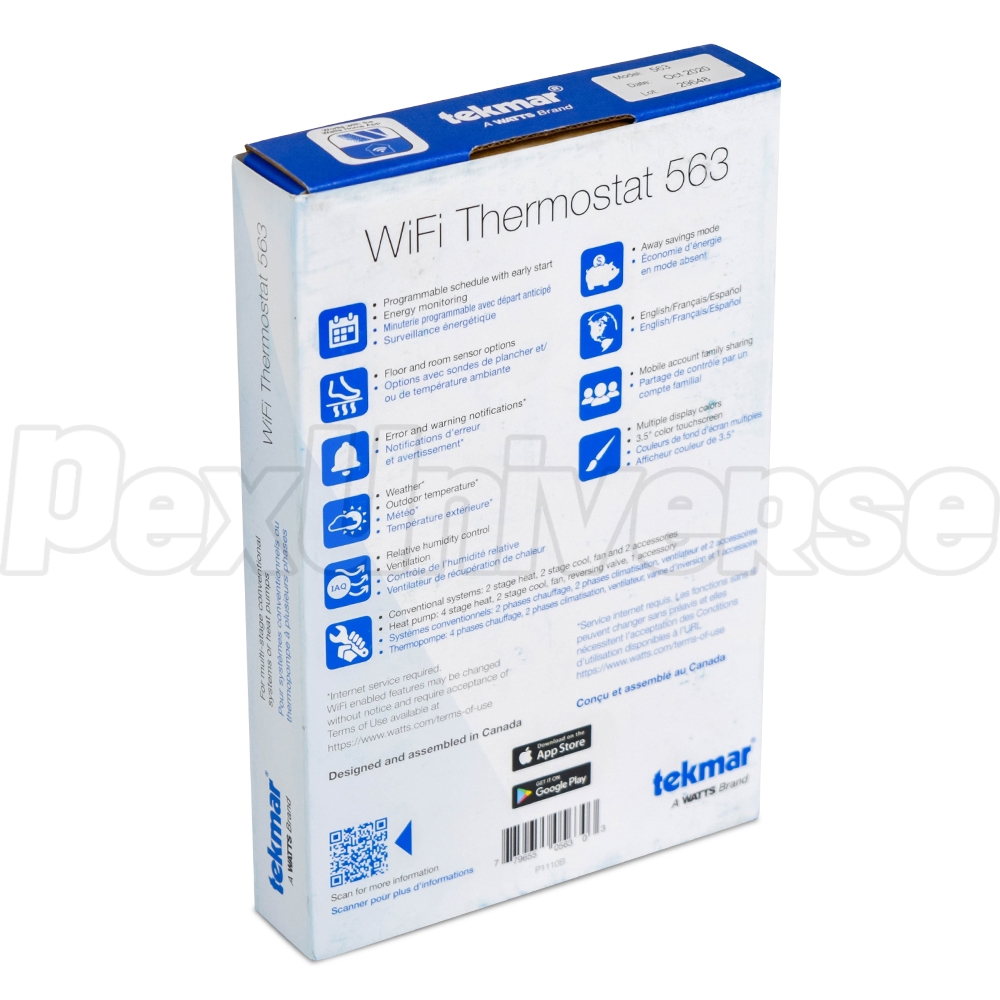

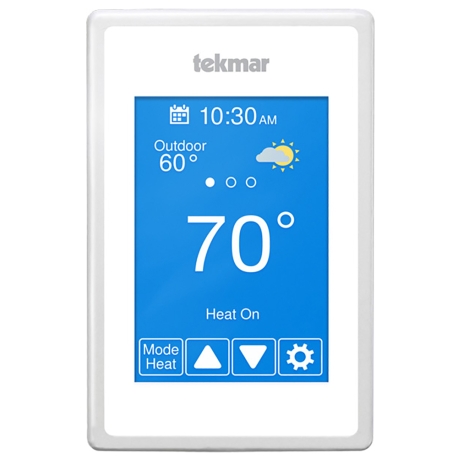

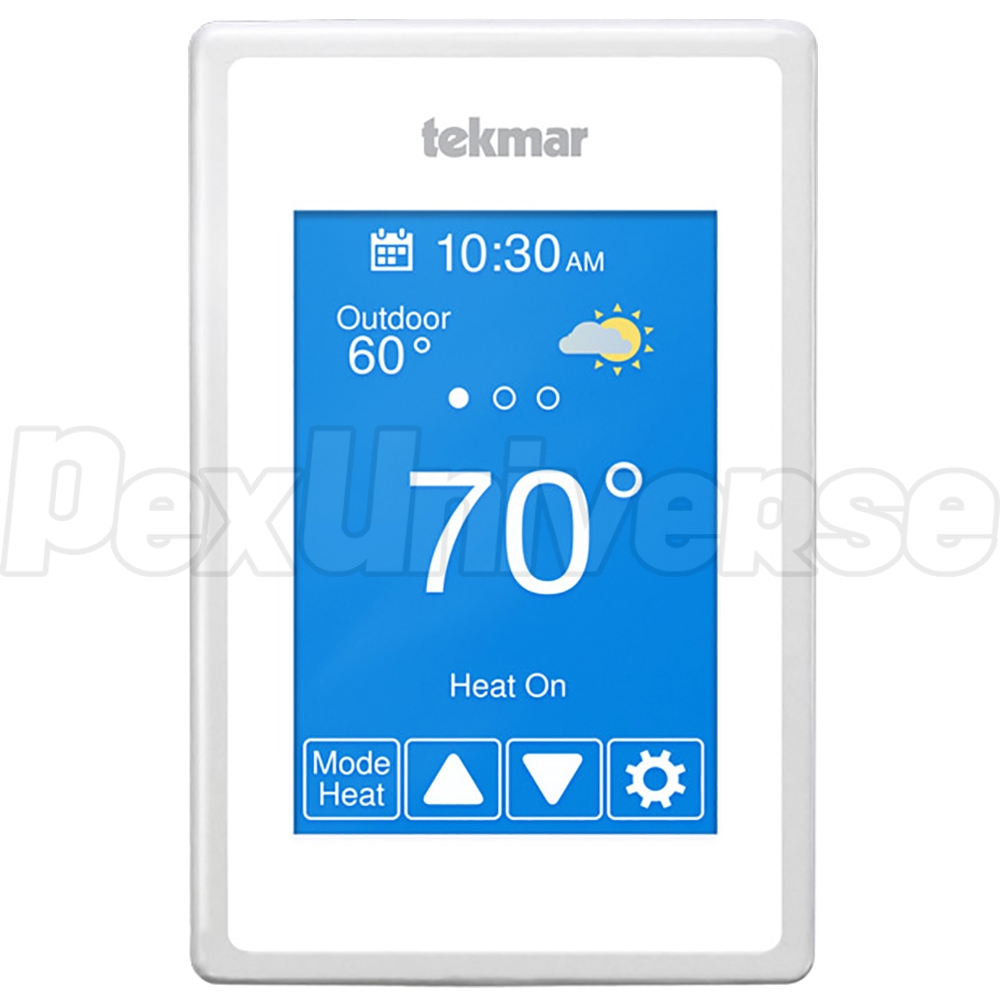

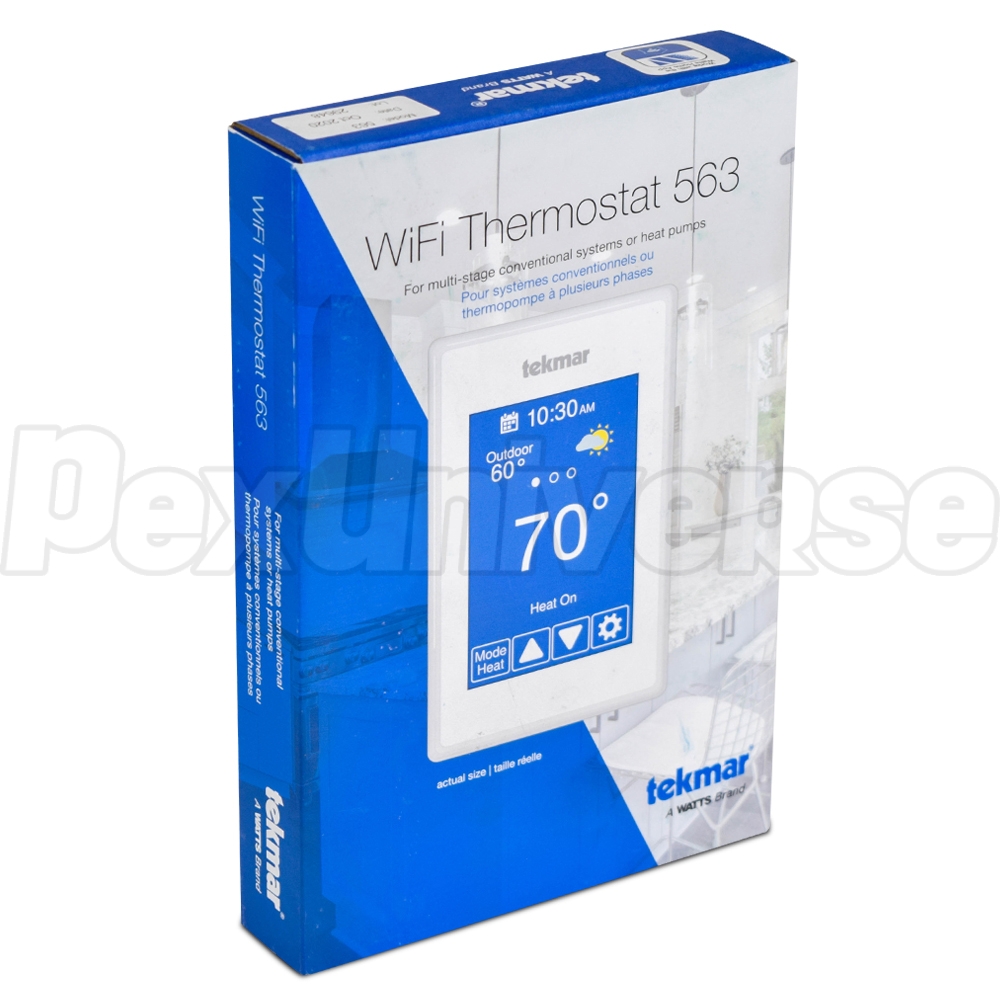

563 WiFi Thermostat, Conventional 2H/2C or Heat Pump 4H/2C
Brand: Tekmar
Part#: 563
Tekmar 563 is a WiFi-enabled, programmable thermostat with touchscreen interface. It is designed to control temperature of a multi-stage conventional or heat pump system, a fan, and up to two accessories (humidifier, dehumidifier or ventilator), and can be operated remotely through the Watts Home mobile app. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. An optional floor sensor (079, not included) can be installed to enhance comfort and improve system response when operating a radiant floor heat system.

  • WiFi-enabled (controlled via iOS/Android app, w/ automatic software and time clock updates)
  • 7-day programmable
  • Shows local weather and outdoor temperature
  • Dual-fuel system compatible
  • Away mode for energy savings
  • E-mail warning and error notifications
  • 3.5" touchscreen with selectable background colors
  • Energy monitoring
  • Early start feature
  • Made in Canada

Technical Specifications:
  • Stages: 2 Heat, 2 Cool, Fan + 2 Accessories (Conventional System); 4 Heat, 2 Cool, Fan, Reversing Valve + 1 Accessory (Heat Pump System)
  • Interface: Touchscreen
  • Screen: 3.5" color touchscreen
  • Mounting: Vertical
  • Electrical Ratings: 15 to 30 VAC, 2 VA standby, Class 2
  • Setting Temperature Range: 40 to 122°F (4.5 to 50.0°C)
  • Relay: 30 VAC, 2 A, Class 2 circuits
  • Sensor: NTC thermistor (not included)
  • Communications: WiFi 802.11n, 2.4 GHz, WPA2 encryption
  • Mobile app: iOS 12 or higher, Android 8 or higher
  • Languages: English, French, Spanish
  • Ambient conditions: Indoor use only, 32 to 122°F, RH≤90% non-condensing
  • Enclosure material: White PVC Plastic, NEMA type 1
  • Dimensions: 4-5/8" x 3" x 15/16"
  • Packaged weight: 0.7 lbs

3-year warranty
