(16) 1/2" PEX Rails, 6.5ft long ea.
Brand: Everhot
Part#: PXR12-16
In Stock
Usually ships: within 1 business days

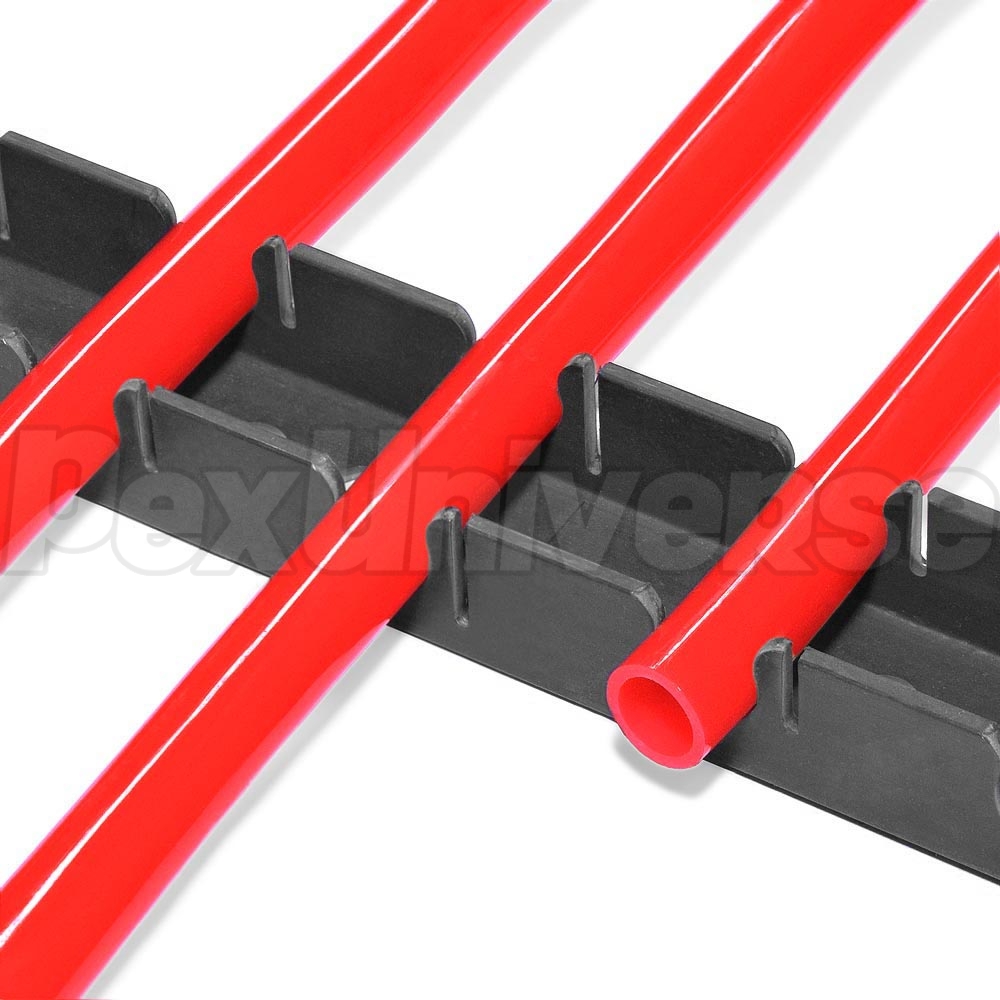

1/2" PEX Rails can be used in a variety of radiant heating projects. They are designed for use in concrete slabs, where tubing has to be installed in a proper pattern to distribute the heat evenly.

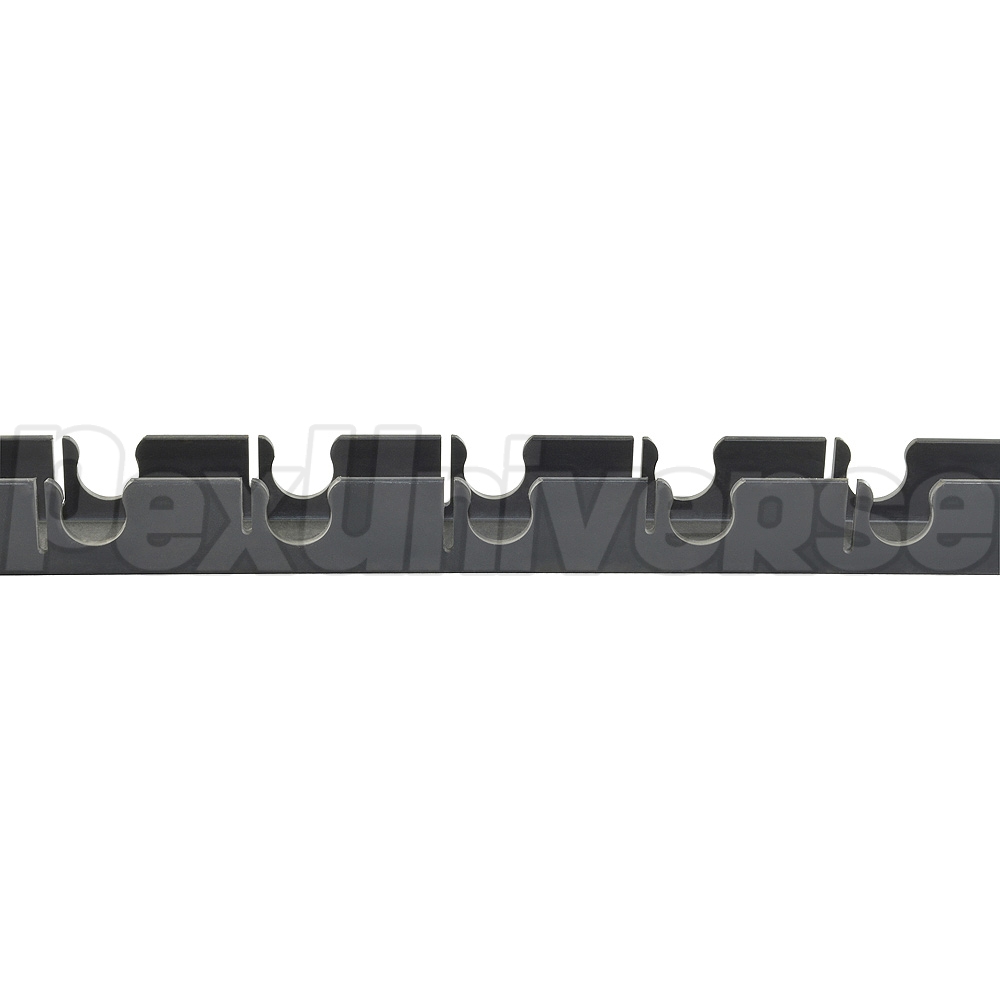

6.5ft PEX Rails have channel spacing at every 2" OC (On Center), allowing installer to lay out the PEX tubing as needed.
Most typically installed at 3ft apart.

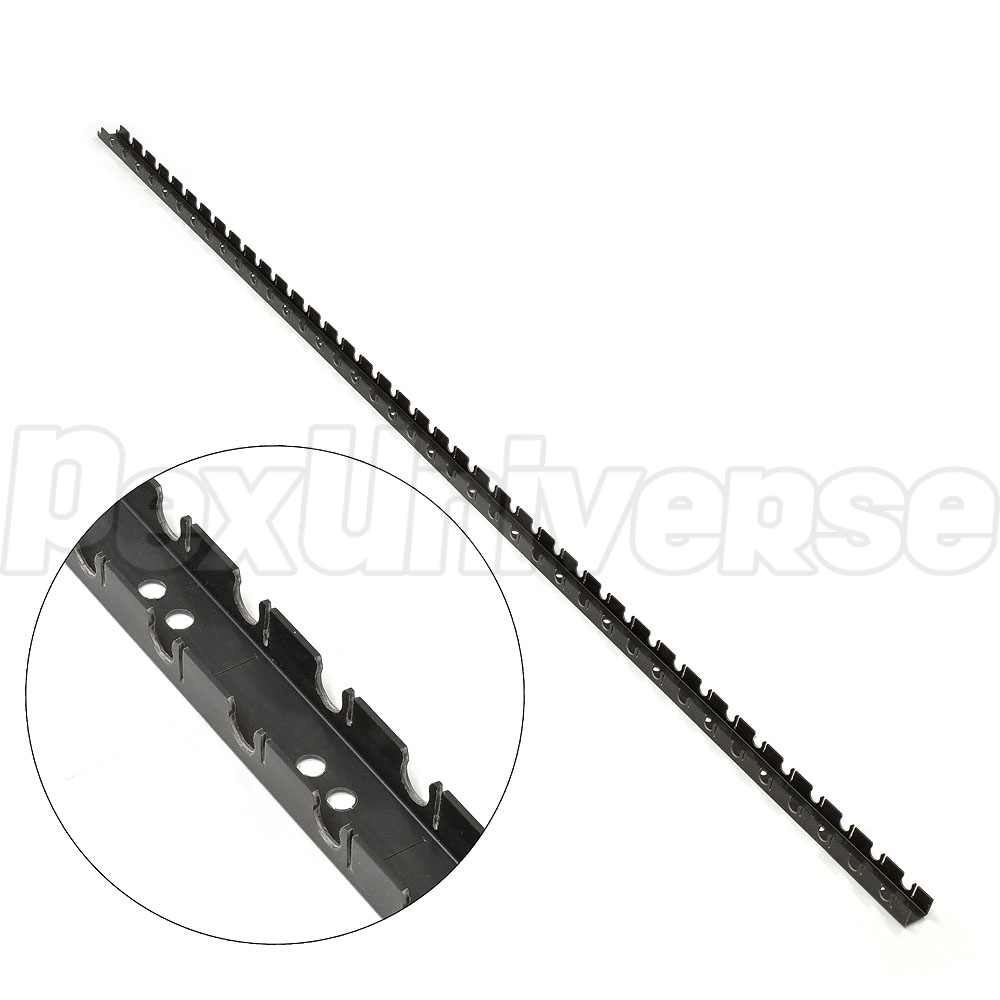

All rails are pre-drilled with holes which allow to attach them to rigid foam board insulation with clips.

Lightweight and durable, PEX rails reduce installation time when compared to other methods, such as ties, mesh clips and staples.


Cross-References:
  • Replaces Wirsbo (Uponor) PEX Rails model# A5700500
Write a Review
Helpful? Yes 4 No
Verified Purchase
Perfect, great design and construction
very useful for multiple runs, aligns and fastens with ease!!!! cost effective and time saving on install,
By CBLUC INC (from Charlottetown, PE Canada) on 07/27/2011
Ask a Question
Can I use this to screw into existing slab then pour mud over for tile?Thanks
Helpful? Yes No
Yes, it can be done. Keep in mind that the rail itself is 1" high.
By PexUniverse Customer Service on 01/15/2018
Could this product be used in a plenum rated install? and hung from the sofit?
Helpful? Yes No
No. These rails are intended for in-slab installation only.
By PexUniverse Customer Service on 12/13/2017
