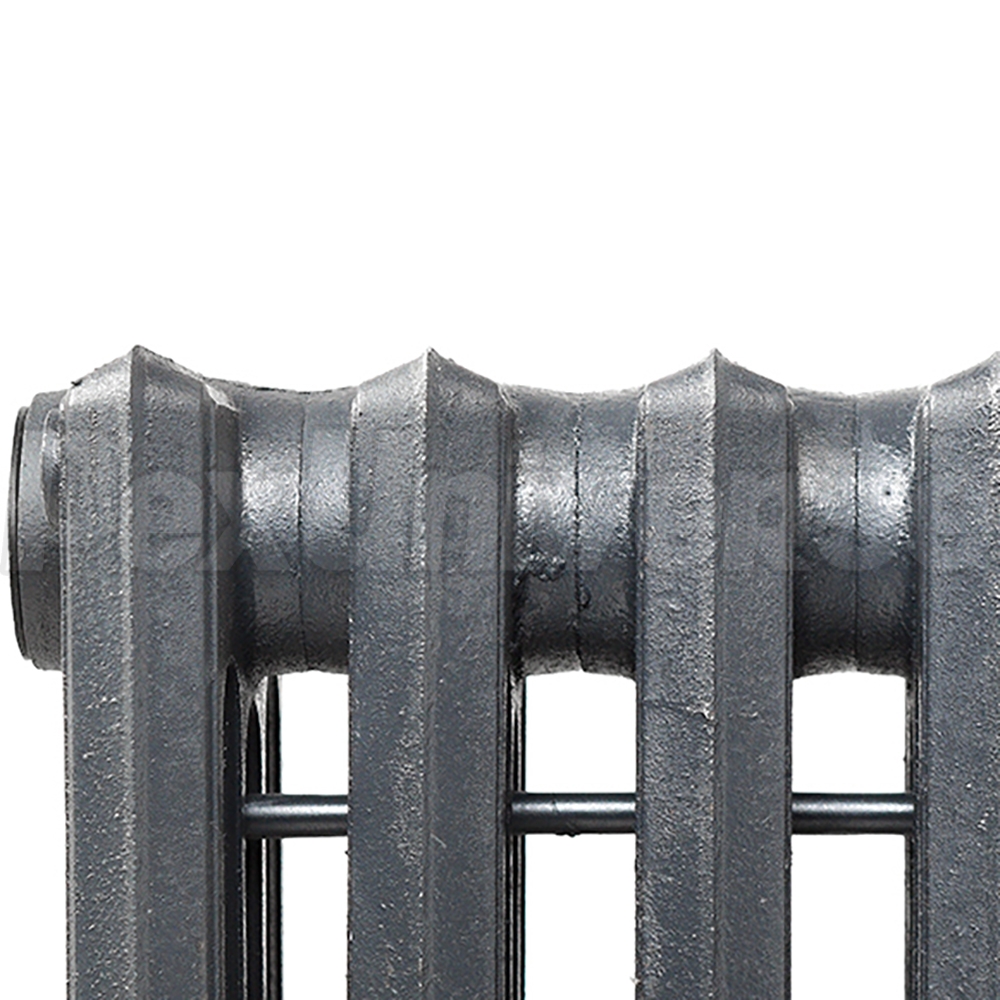

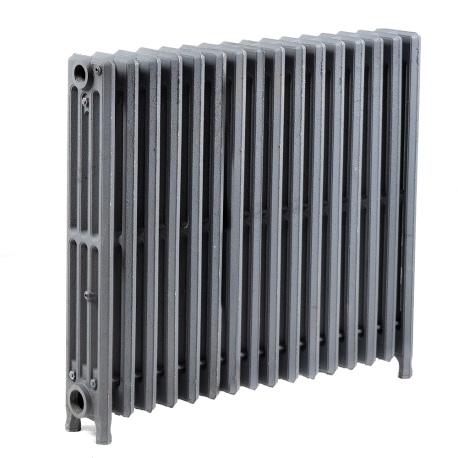

16-Section, 4" x 25" Cast Iron Radiator, Free-Standing, Slenderized/Tube style
Brand: OCS
Part#: T42516

Cross-References:
  • Burnham (U.S. Boiler) radiator of same size
  • Governale (Gov-Free series) radiator of same size

Technical Specifications:
  • Steam BTU: 3,840
  • BTU @ 220°F: 8,000
  • BTU @ 215°F: 7,680
  • BTU @ 210°F: 7,360
  • BTU @ 200°F: 6,720
  • BTU @ 190°F: 6,080
  • BTU @ 180°F: 5,440
  • BTU @ 170°F: 4,800
  • BTU @ 160°F: 4,160
  • BTU @ 150°F: 3,520
  • Water Content (Gal): 1.92
  • Connections: Top: 1" FNPT, Bottom: 1-1/4" FNPT, Air Vent: 1/8" FNPT
  • Max Working Pressure: 15 psi (Steam), 30 psi (Water)
  • Max Working Temperature: 220°F
  • Dimensions (D x H x W): 4-1/2" x 25" x 28"
  • Weight: 146 lbs
