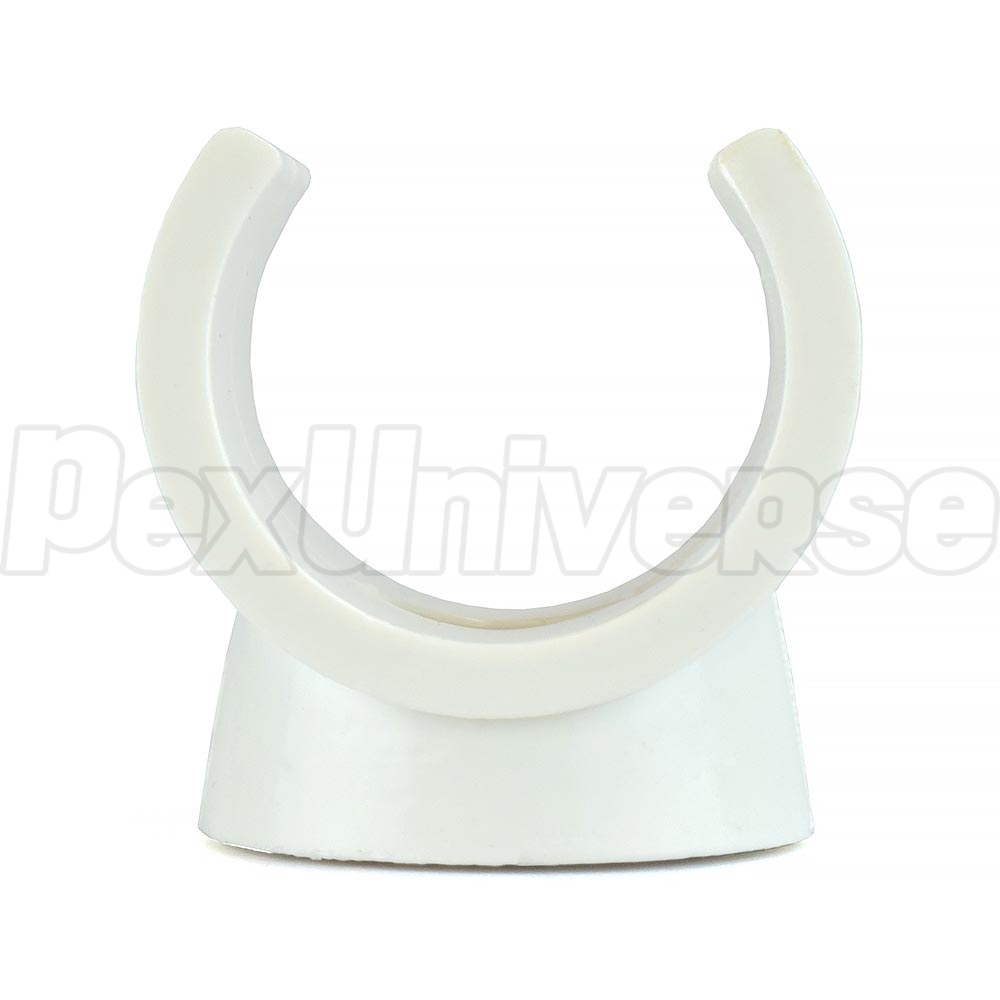

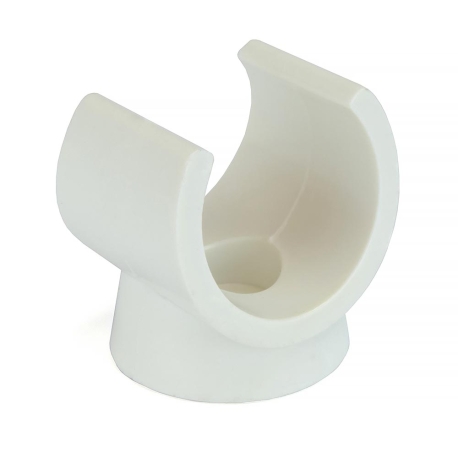

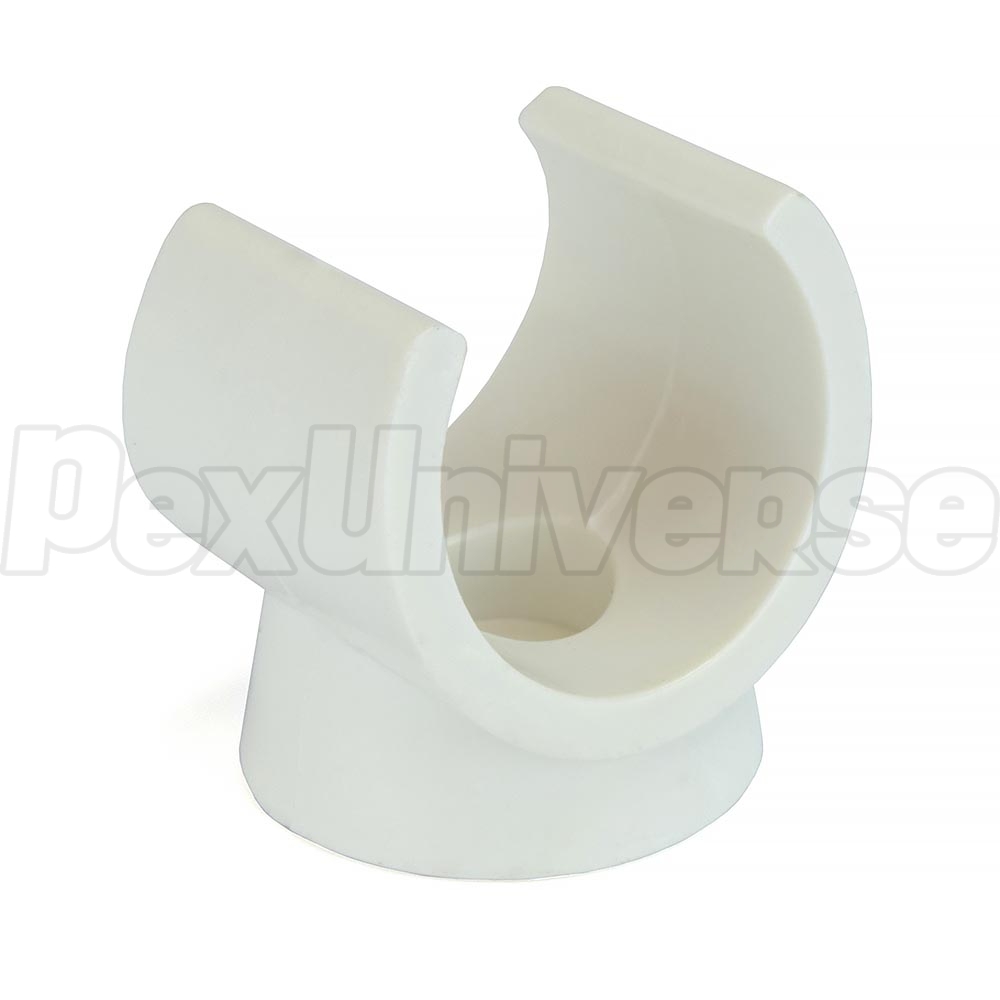

Snap-in Clips for 3/4" PEX Tubing (80/bag)
Brand: Everhot
Part#: PXA4041
In Stock
Usually ships: within 1 business days

Snap-in pipe clips can be used with PEX, copper and CPVC pipes and offer one of the most effective, versatile and reliable ways to secure tubing. Snap-in clips can be used both for horizontal and vertical pipe runs and require a single flat-head fastener.

PEX snap-in clips are designed to allow for installation of clips prior to the installation of tubing. This is extremely useful in overhead installation projects (such as subfloor radiant heating), where clips can be installed along the PEX tubing runs first and then pipe can easily be snapped into the clips.

Snap-in Clips can replace both types of pipe clamps - support type and regular straight type. Recommended installation spacing is 24-30" for horizontal runs and 36-48" for vertical runs of tubing.


Technical Specifications:
  • For tubing size: 3/4" CTS (7/8" OD)
  • Tubing offset from mounting surface: 1/4"
  • Height (without pipe installed): 1"
  • Max. screw cap size: 5/16"
  • Max screw hole size: 3/16"
  • Works both with flat head and round head screws

Read more
Write a Review
Helpful? Yes 2 No
Verified Purchase
Very handy
Hang clips then come back through with tubing. Very handy, just don't overtighten or they with split when installing tubing.
By Heavyhaul (from Roaring Spring,PA) on 01/20/2012
Helpful? Yes 1 No
Verified Purchase
Works great
The clips work extremely well for cpvc I am currently using as well as for pex. It has made the installation work much easier. I hesitated to purchase the clips due to the cost of shipping. However, I am glad I went ahead and made the purchase.
By Verified Buyer (from Georgia) on 04/05/2016
Helpful? Yes 1 No
Verified Purchase
Average
Initial install was easy and clamps held hose securely. I used these for a retrofit of an existing hot water radiator system. A few things to consider if you are looking to tackle the same project. -After the hose heats the clamp seems to become more flexible and will release the hose where there maybe tension on bends. -The clamps conduct heat into the joist very efficiently generating heat loss-Insulation conduit will have small air gaps where clamp joins hose for heat loss.I believe these clamps are more effectively used for in-between joist floor heating on smaller diameter hose.
By particle16 (from Ontario, Canada) on 11/18/2012
Helpful? Yes 1 No
these clips rock
able to go different directions easily and quick to install and easy to move if needed to
By doityourselfer (from hopkinton,ny) on 04/08/2011
