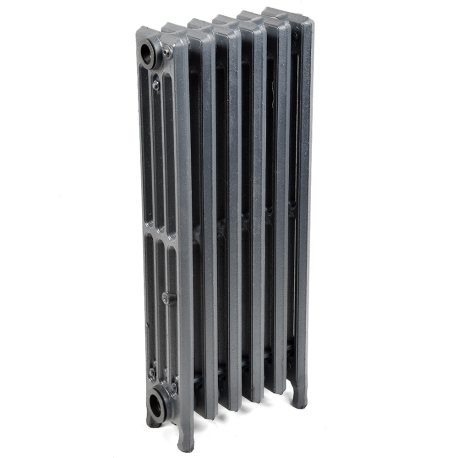

6-Section, 4" x 25" Cast Iron Radiator, Free-Standing, Slenderized/Tube style
Brand: OCS
Part#: T4256

Cross-References:
  • Burnham (U.S. Boiler) radiator of same size
  • Governale (Gov-Free series) radiator of same size

Technical Specifications:
  • Steam BTU: 1,440
  • BTU @ 220°F: 3,000
  • BTU @ 215°F: 2,880
  • BTU @ 210°F: 2,760
  • BTU @ 200°F: 2,520
  • BTU @ 190°F: 2,280
  • BTU @ 180°F: 2,040
  • BTU @ 170°F: 1,800
  • BTU @ 160°F: 1,560
  • BTU @ 150°F: 1,320
  • Water Content (Gal): 0.72
  • Connections: Top: 1" FNPT, Bottom: 1-1/4" FNPT, Air Vent: 1/8" FNPT
  • Max Working Pressure: 15 psi (Steam), 30 psi (Water)
  • Max Working Temperature: 220°F
  • Dimensions (D x H x W): 4-1/2" x 25" x 10.5"
  • Weight: 51 lbs
