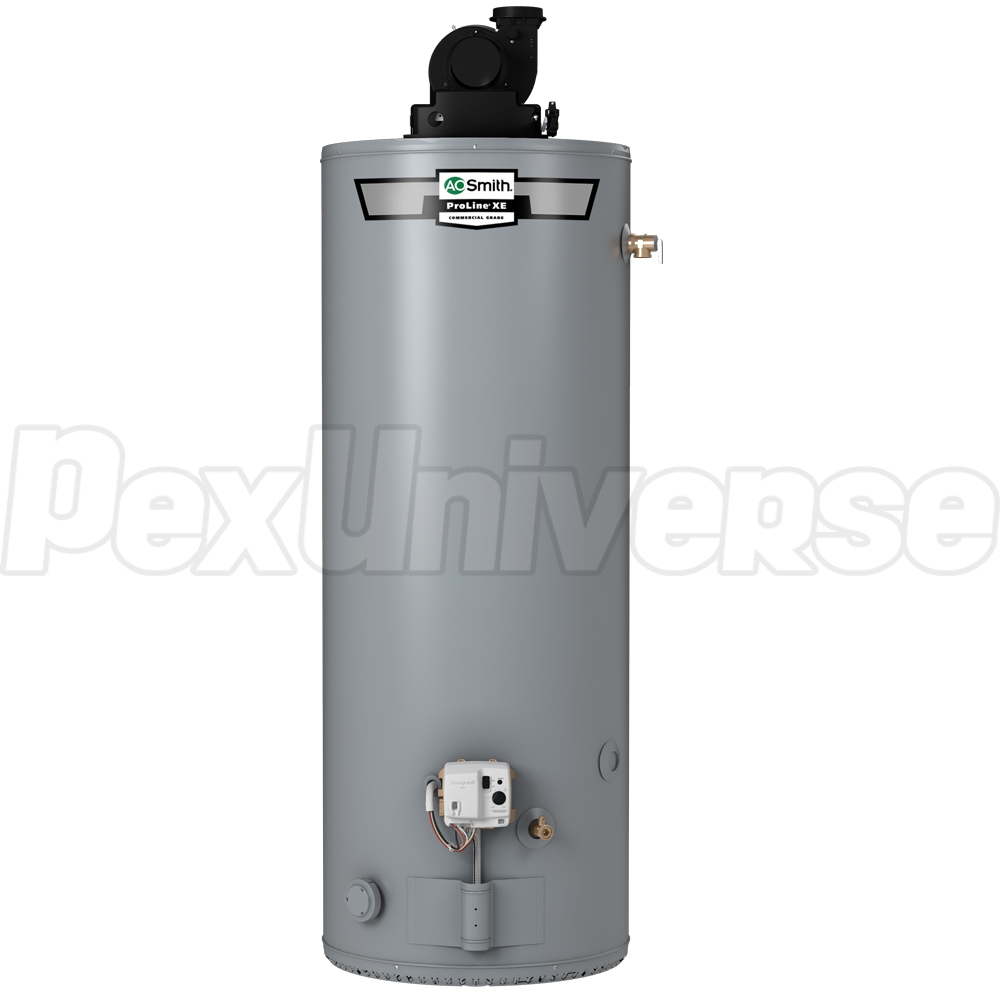

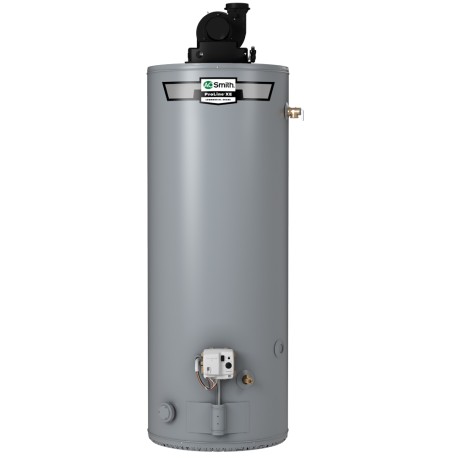

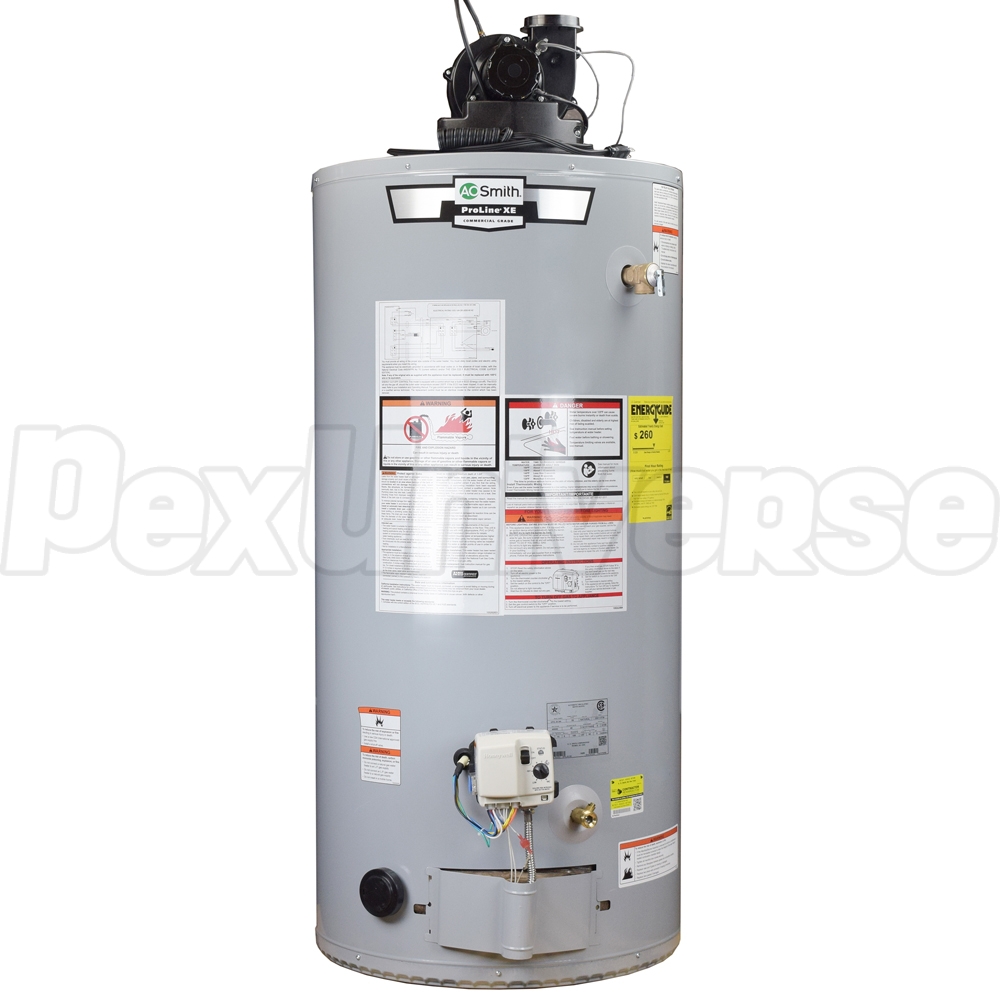

AO Smith ProLine XE series GPVL-40 model is a high-efficiency (non-condensing), 40-gallon, natural gas (NG) residential power vent water heater with 6-year warranty. Energy Star qualified.
- Energy Star qualified

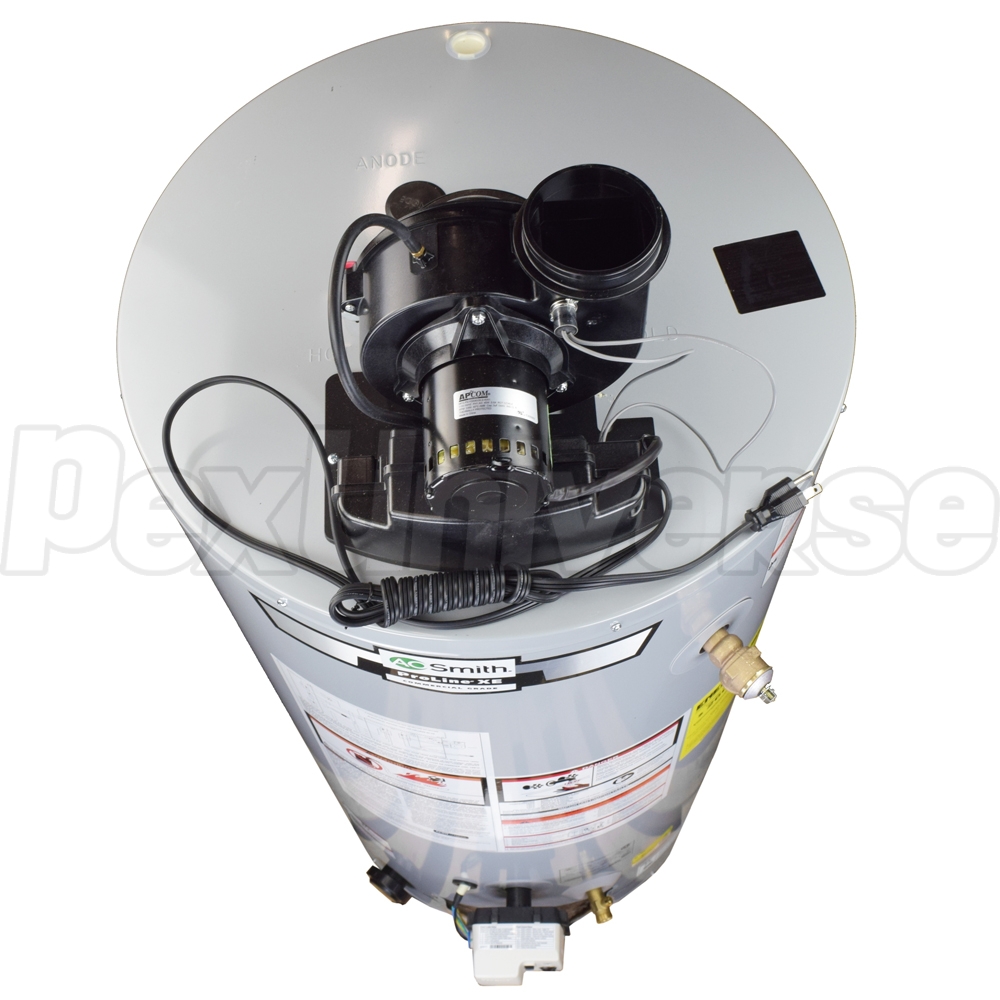

- 3-position rotatable blower accepts 4" PVC, CPVC, ABS or polypropylene
- Built-in flammable vapor ignition protection
- Heat traps on both inlet and outlet reduce stand-by heat loss
- 2" thick non-CFC foam improves overall efficiency

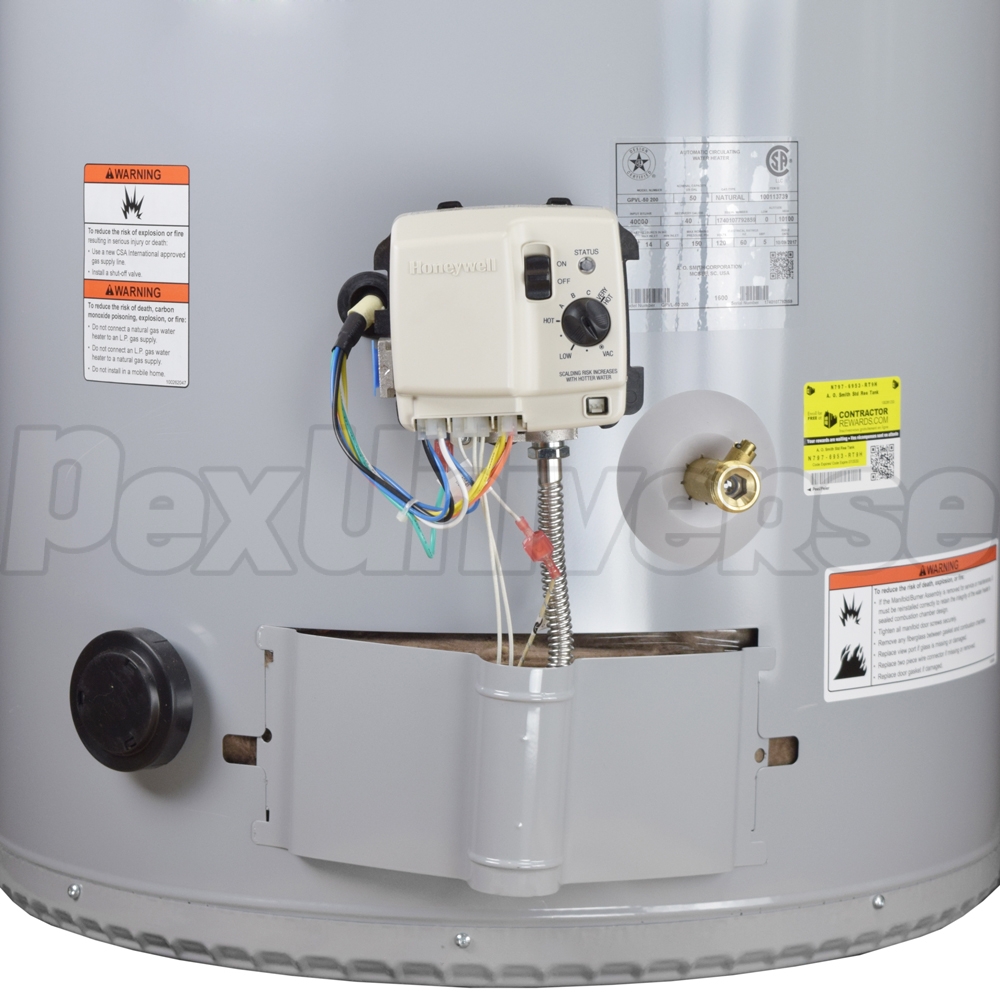

- Hot surface ignitor.
- Fuel: Natural Gas (NG)
- Nominal Capacity (Gallons): 40
- Rated Storage Volume (Gallons): 38
- Input (BTU): 40,000
- Uniform Energy Factor: 0.67
- 1st Hour Rating (Gallons): 73
- Recovery @ 90°F Rise (GPH): 45
- Anode: Standard
- NOx Emissions: less than 40ng/J

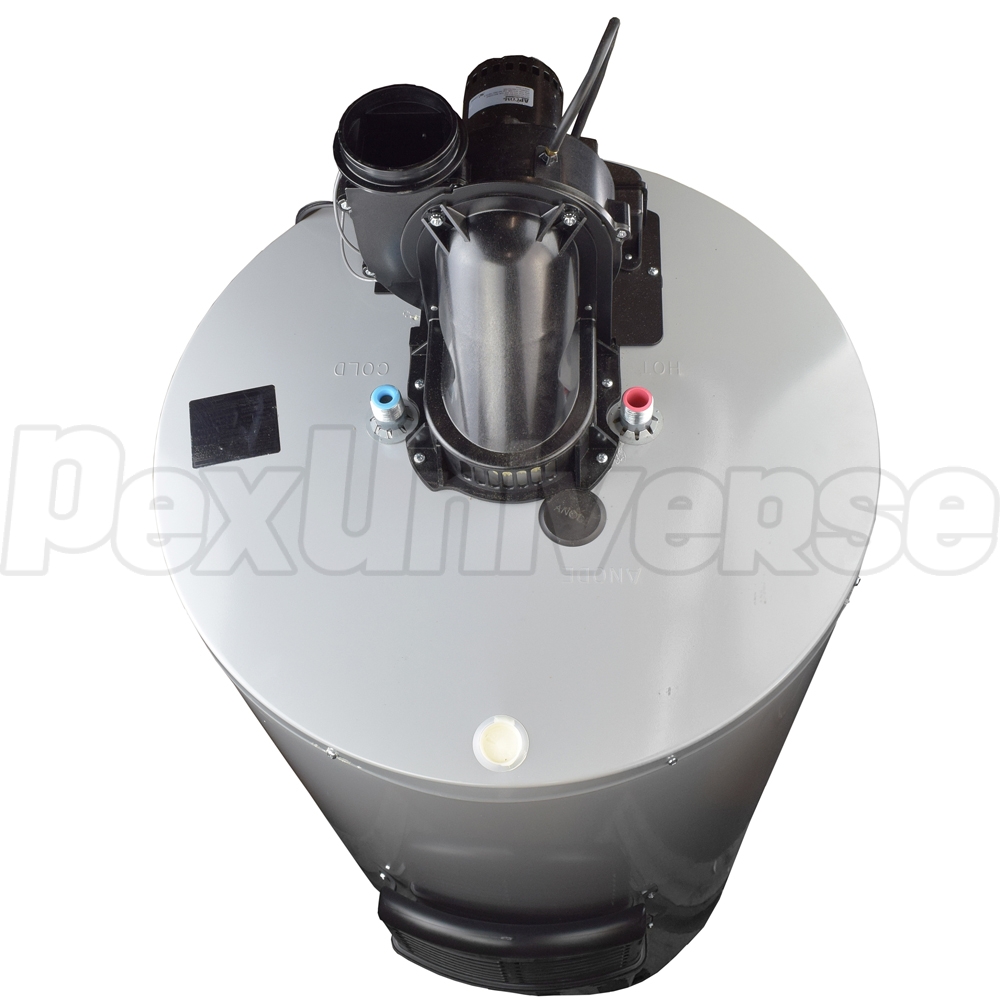

- Water Connections: 3/4" NPT
- Water Connections Location: Top
- Max Working Pressure: 150 PSI
- Ignition Type: Electronic
- Vent Type: Power
- Venting Size: 2", 3", 4"
- Vent Material: PVC, CPVC, ABS and PP
- Max Vent Run: 50ft (for 2"), 125ft (for 3"), 180ft (for 4")'
- LEED Rating: 1
- Dimensions (Diameter x Height): 22" x 49-5/8" (59" w/ Blower installed)
- Weight (lbs): 174.
6-Year Limited Tank Warranty / 6-Year Limited Parts Warranty
