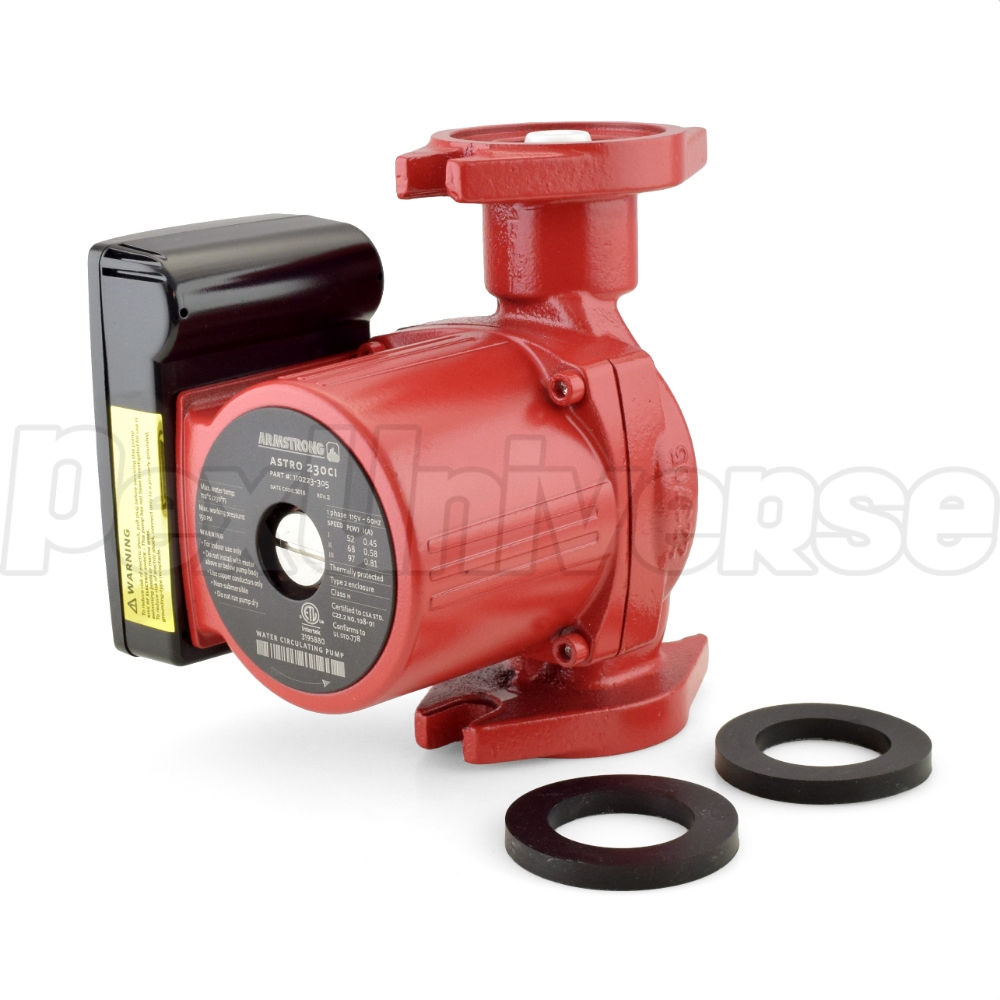

Astro 230CI 3-Speed Circulator Pump, 115V


Brand: Armstrong

Mfr Part#: 110223-305

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$72.95 / each
x4 $279.80 & Free Shipping
(4 x $69.95 / each)
  • Description
  • Literature
  • Reviews
  • FAQs (1)

Astro 2 series, 230CI model is a 115V, 3-speed flanged circulator designed for closed-loop heating applications. 3 speeds (Low/Med/Hi) cover a wide range of single and multi-zone applications in radiant floor heating, fan coils, radiator/baseboard and other systems. This model replaces Taco 007-F5 & 008-F6 series, Grundfos UPS 15-58FC & 15-42F series, Wilo Star S 16FX and B&G NRF-22.


  • Designed for use in closed-loop heating applications - hydronic, baseboards, radiant floor heat, etc.;
  • e-Coating on the inside of the pump provides an enhanced corrosion protection for longer pump life and less debris in the system;
  • Large wiring box and convenient plug-in terminal strip;
  • 3-Speed functionality;
  • cETLus listed;
  • Standard flange (2-1/2" OC holes), compatible with other brand flanges & isolation valves.

Technical Specifications:

  • Electrical: 115V, 60Hz, 1 Phase;
  • Nominal Power: 97 Watts;
  • Amp Draw: 0.45A @ Spd 1; 0.58A @ Spd 2; 0.81A @Spd 3;
  • Max. fluid temperature: 230°F;
  • Max. ambient temperature: 104°F;
  • Max. operating pressure: 150 psi;
  • Max flow: 18 GPM;
  • Max. head: 18 ft;
  • Body material: Cast Iron;
  • Component materials: Noryl impeller, ceramix shaft & bearings, EPDM gasket;
  • System connections: standard flange;
  • Circulator flange-to-flange dimensions (height): 6.38" (6-3/8").


5 years manufacturer's warranty.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Can this pump be used in a potable water system?
Read 1 answer
No. Cast iron circulators are intended for use in non-potable heating, closed-loop recirculating applications (radiant heat, baseboard, fan coils, etc.)
Answered on 11/28/2017 by PexUniverse Customer Service
