12" x 36" Hydronic Panel Radiator w/ Brackets, Model 22
Brand: Beacon Morris
Part#: BM-22-12X36
In Stock
Usually ships: within 1 business day

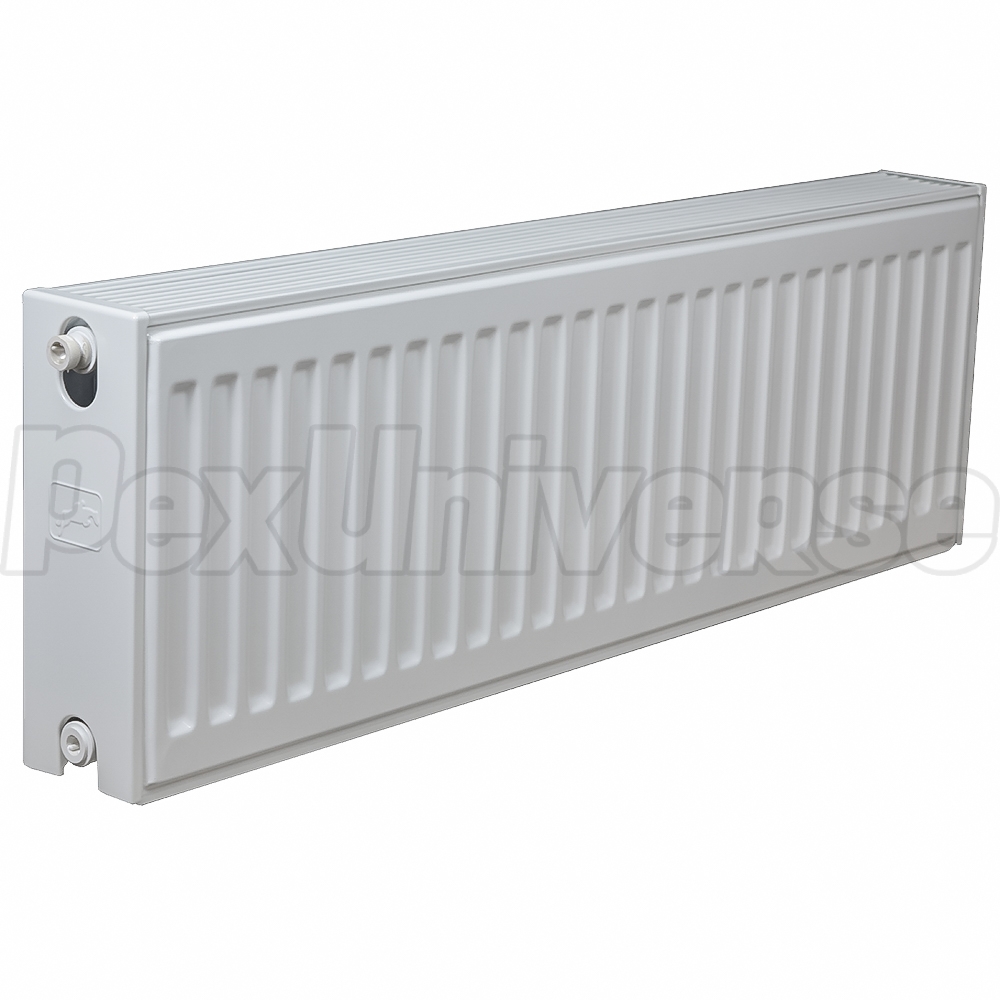

12" high x 36" wide x 4-1/8" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.

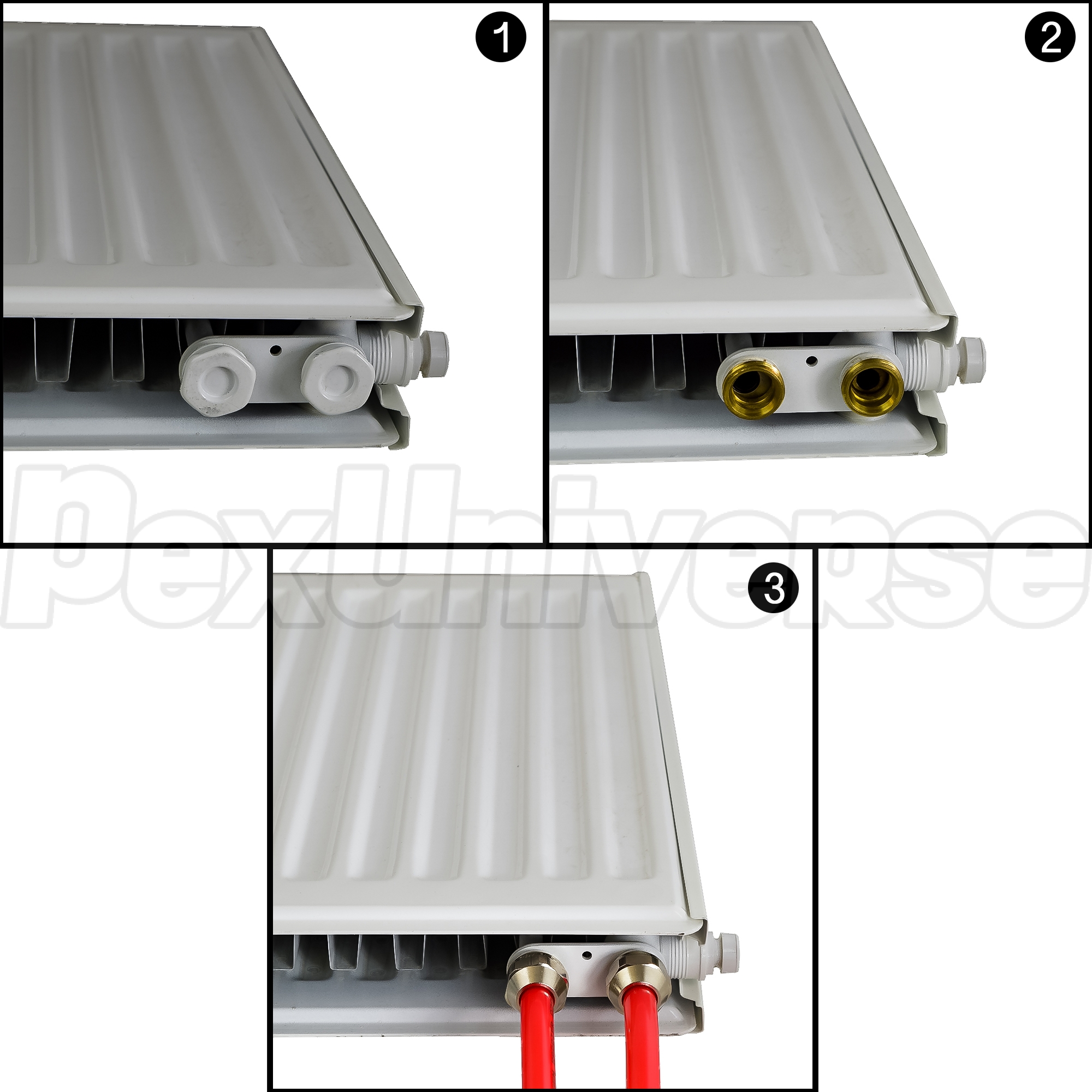

NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Features:

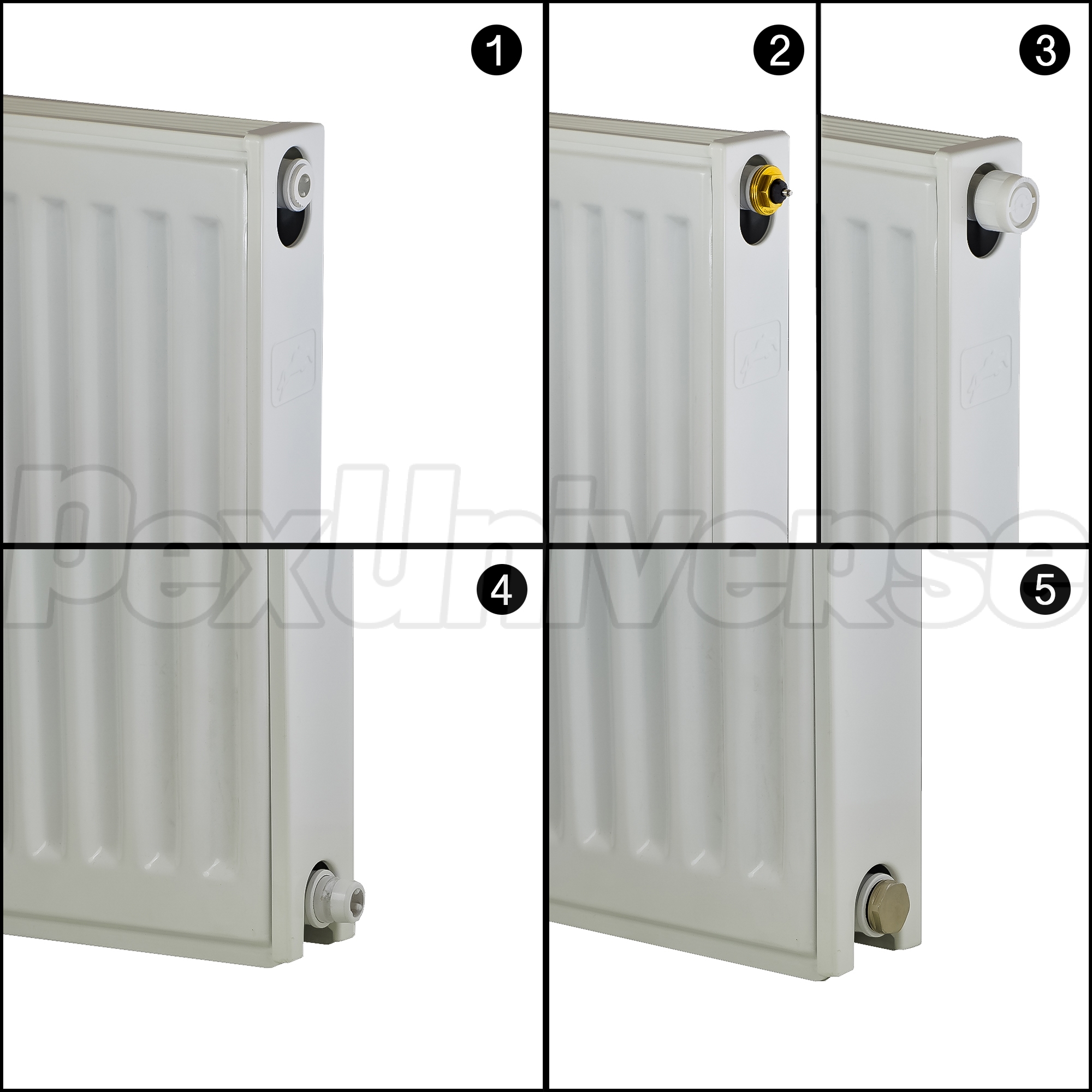

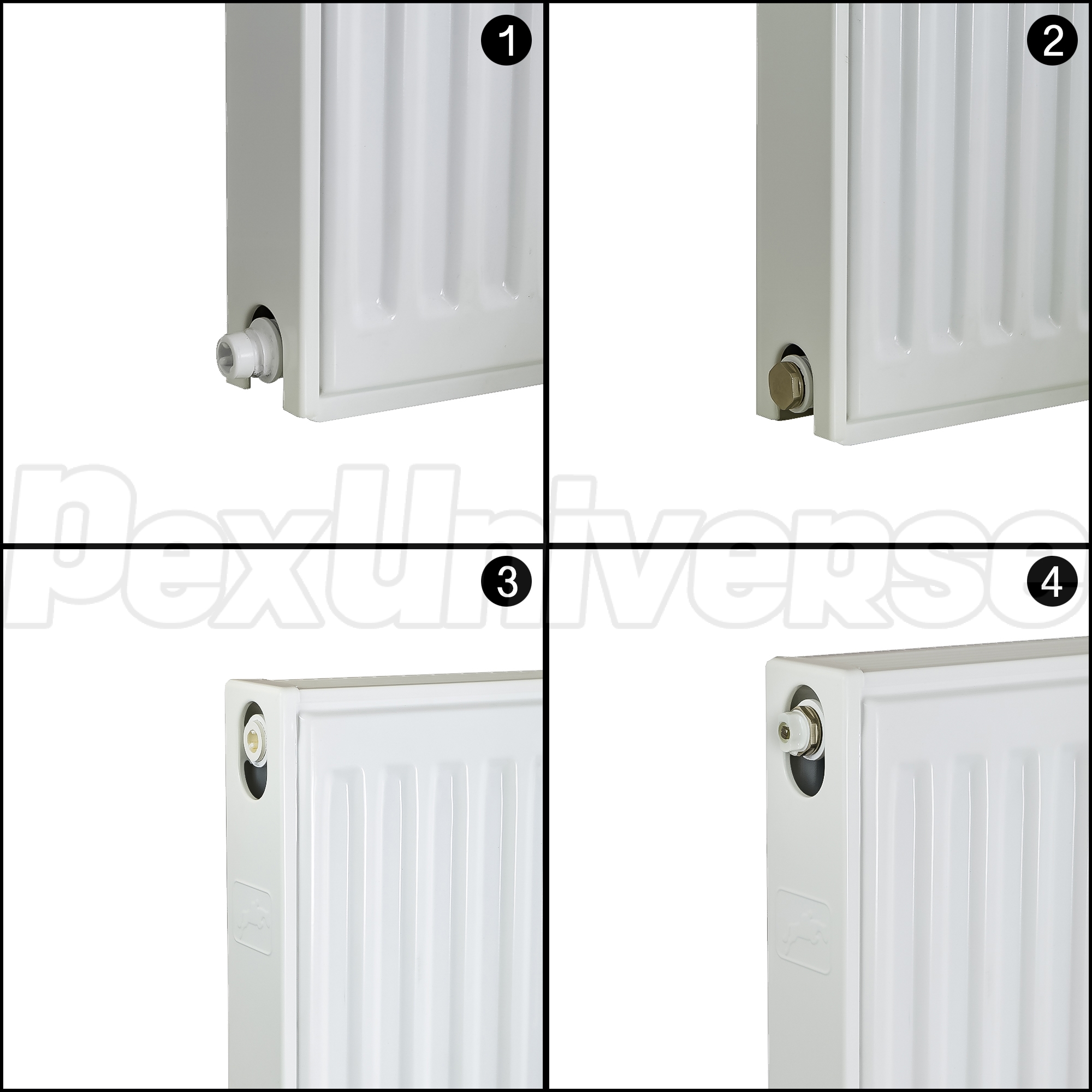

  • Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
  • Powder coated white finish is highly resistant to scratching and can be painted
  • Compatible with all piping configurations - parallel, series and dedicated
  • Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
  • Compact design means lower footprint
  • Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
  • Quiet - no screeching or hissing common with baseboards and steam radiators

Read more

Technical Specifications:
  • Dimensions (H x L x D): 12" x 36" x 4-1/8"
  • BTU Output @120°F: 1,237
  • BTU Output @140°F: 1,966
  • BTU Output @160°F: 2,739
  • BTU Output @180°F: 3,542
  • Water Content (Gal): 0.84
  • Max Operating Pressure: 145 psi
  • Max Operating Temperature: 200°F

Read more

Warranty:
10 years
