5/8" x 400ft Oxygen Barrier PEX Tubing
Brand: Everhot
Part#: BPR5840
Temporary Out of Stock
Usually ships: Upon availability

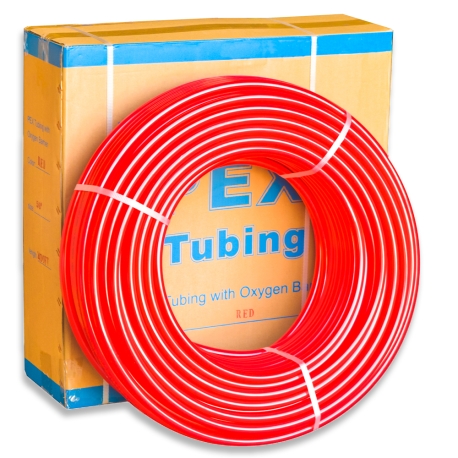

400ft roll of 5/8" PEX Tubing with Oxygen Barrier for use in radiant heating applications.

Meets/exceeds ASTM F876/877, CSA B137.5, DIN 4726 standards.
Certified for use in radiant floor heating applications. UPC listed by IAPMO.
PPI pressure rated at: 79psi @ 200F, 100psi @ 180F, 160psi @ 73F
Dimensions: 29" x 29" x 10"; Packing: Box; Weight: 37.0 lbs


Everhot PEX Tubing with Oxygen Barrier:

  • Is manufactured to ASTM F876/F877 & CSA B137.5 standards.
  • Tested and Certified by NSF for use in floor radiant heating applications.
  • NSF Certified to the Uniform Plumbing Code.

Applications:

5/8" PEX Tubing with Oxygen Barrier can be used for the following radiant heating applications:

  1. Structural Concrete Slabs (Rebar or wire mesh reinforced, 4-6" thick). Slab-On-Grade Systems (garages, warehouses), Slab-Below-Grade Systems (basements). 5/8" PEX Tubing is secured on top of the reinforcement with wire ties, zip ties or clips.
  2. Below-Subfloor (Staple-up) Systems without aluminum heat transfer plates.
  3. Sleeper-type systems (above subfloor) without heat transfer plates.
  4. Copper tube finned baseboard radiators.

Compatibility:

Everhot Oxygen Barrier PEX Tubing can be installed using either Crimp type connection system (Crimp Tool, Crimp-style PEX Fittings and Copper Crimp Rings) or Clamp/Cinch type connection system (Clamp Tool, Crimp-style PEX Fittings and Stainless Steel Clamps). Also compatible with Push-Fit connection system (such as SharkBite), Viega Press type system and Compression type PEX fittings.


This product is a replacement for:

5/8" ViegaPEX, RadiantPEX (Watts) and ZurnPEX oxygen barrier tubing in similar lengths.


5/8" PEX Tubing with Oxygen Barrier is commonly used in medium to large size radiant floor heating projects as well as for baseboard and radiator heating systems and some types of snow melt systems. According to RPA Standard Guidelines, recommended circuit length for 5/8" PEX tubing is 400-500ft (radiant floor heating only).

Write a Review
Helpful? Yes 1 No
great product easy to use
"stapled with aluminum plates under floor joists flexs good with out kinking"
By dude (from buffalo ny) on 08/22/2011
