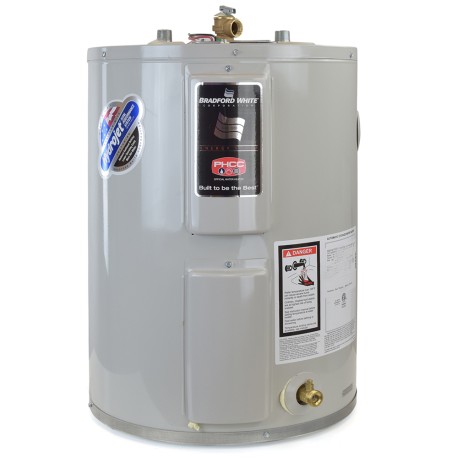

28 Gal, Lowboy (Top Connections) Electric Water Heater (w/ Insulation Blanket), 6-Yr Wrty
Brand: Bradford White
Part#: RE230L6-1NCWW
Usually ships: within 3-5 business days
Bradford White RE230L6 model is a 28-gallon lowboy 208/240V electric hot water heater with 2" thick insulation blanket.

Features:
  • Vitraglas enamel lining helps to extend tank life
  • Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • Fully automatic fast acting surface-mount thermostat with high limit energy cut-off for safety
  • Direct heat transfer with dual, 1-phase copper screw type immersion elements
  • Factory-installed heat traps reduce stand-by heat loss
  • Protective magnesium anode rod
  • Includes insulation blanket.

Technical Specifications:
  • Nominal Capacity (Gallons): 28
  • Rated Storage Volume (Gallons): 26
  • Uniform Energy Factor: 0.92
  • 1st Hour Rating (Gallons): 46
  • Recovery Rate (GPH) @ 208V (3500W/3500W): 24 GPH @ 60°F Rise
  • 18 @ 80°F
  • 16 @ 90°F
  • 14 @ 100°F
  • 12 @ 120°F
  • Recovery Rate (GPH) @ 240V (4500W/4500W): 31 GPH @ 60°F Rise
  • 23 @ 80°F
  • 21 @ 90°F
  • 19 @ 100°F
  • 15 @ 120°F
  • Water Connections: 3/4" NPT
  • Max Working Pressure: 150 psi
  • Electrical Connections: 3/4" NPT
  • Voltage: 208V (3500W/3500W max) or 240V (4500W/4500W max)
  • Electrical Specs: Dual Heating Elements, Single Phase, Non-Simultaneous Operation
  • Dimensions (Diameter x Height): 22" x 29-7/8"
  • Insulation blanket thickness: 2"
  • Weight (lbs): 108.

Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
