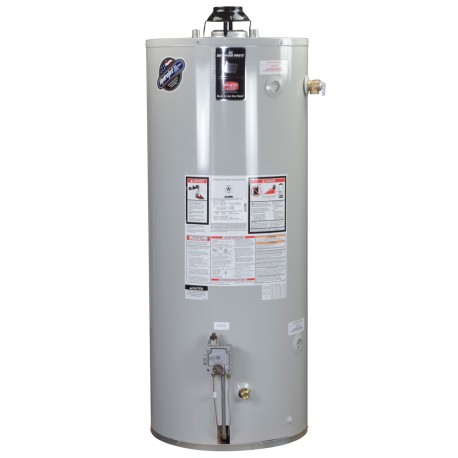

48 Gal, Defender Atmospheric Vent Short Water Heater (NG), 6-Yr Wrty
Brand: Bradford White
Part#: RG250L6N
Usually ships: within 3-5 business days

Description

Bradford White RG250L6N model is a 48-gallon natural gas (NG), short-profile atmospheric vent residential water heater with 6-year warranty. T&P valve included.

Features:
  • Defender FVIR system w/ ScreenLok flame arrestor prevents ignition of flammable vapors outside the water heater
  • Vitraglas enamel lining helps to extend tank life
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • 3" x 4" Snap-Lock draft diverter allows for 3" or 4" vent connections
  • Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • Factory-installed heat traps reduce stand-by heat loss
  • Sight window allows to observe operation of pilot and burner
  • Protective magnesium anode rod
  • Pedestal base.

Technical Specifications:
  • Fuel: Natural Gas (NG)
  • Nominal Capacity (Gallons): 48
  • Rated Storage Volume (Gallons): 47
  • Input (BTU): 40,000
  • Uniform Energy Factor: 0.63
  • Recovery Efficiency: Up to 80%
  • 1st Hour Rating (Gallons): 85
  • Recovery Rise @90° F (GPH): 43
  • NOx Emissions: less than 40ng/J
  • Water Connections: 3/4" NPT
  • Gas Connection: 1/2" NPT
  • Max Working Pressure: 150 PSI
  • Ignition Type: Piezo push button ignitor
  • R-Value: 16
  • Insulation Thickness: 2"
  • Vent Type: Atmospheric (Standard)
  • Vent Size: 3" or 4" (adapter included)
  • Vent Material: B-Vent
  • Dimensions (Diameter x Height): 24" x 51-13/16"
  • Weight (lbs): 170.

Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
