Features:
  • Electric tankless technology offers endless hot water on demand
  • Ultra-compact, economic and easy to install solution for point-of use applications (kitchen/bar/utility sinks, etc.), including in ADA-compliant facilities
  • Packed with features such as dry-fire protection, high-temperature limit switch, exteranl LED diagnistics and many others
  • No T&P relief valve needed (check local code)
  • Replaceable heating element
  • Can be mounted in any orientation
  • Compression connections eliminate the need for soldering
  • Lead-Free compliant, meets ANSI/NSF 372
  • UL listed for US and Canada
  • Assembled in the USA

Technical Specifications:
  • Electrical Specs: 240V, 27A, 6.5 kW, 3-Phase / 208V, 23A, 4.8 kW, 1-Phase
  • Recommended Wire Size: 10 AWG
  • Thermal Efficiency: 99%

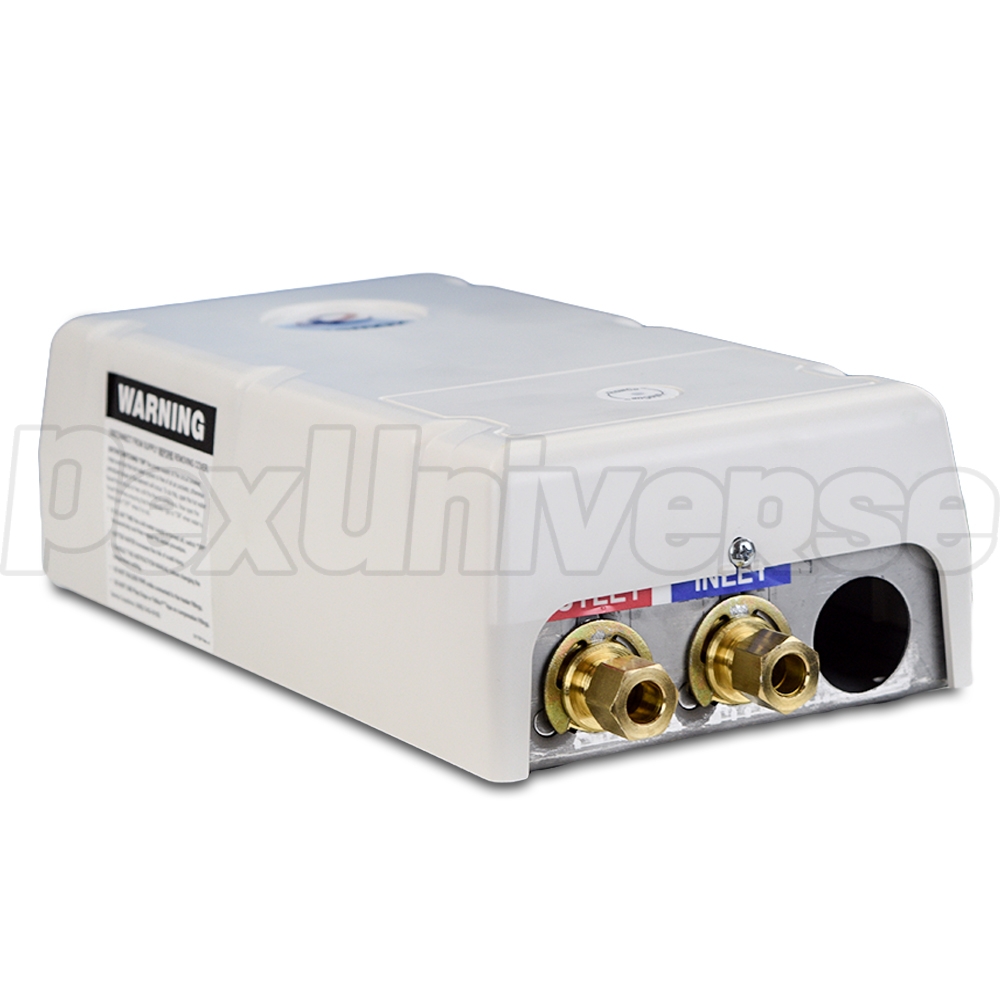

  • Water Connections: 3/8" OD Compression (accepts standard 3/8" OD copper tubing or risers, as well as supply connectors such as BrassCraft and similar)
  • Min. Activation Flow Rate: 0.7 GPM
  • Factory-set Outlet Temperature Cut-off: 150°F
  • Max. Inlet Water Temperature: 70°F
  • Hot Water Output Range (GPM at T° Rise) - 240V: 2.0 GPM @ 22°F / 1.5 GPM @ 30°F / 1.0 GPM @ 44°F / 0.75 GPM @ 59°F
  • Hot Water Output Range (GPM at T° Rise) - 208V: 2.0 GPM @ 16°F / 1.5 GPM @ 22°F / 1.0 GPM @ 33°F / 0.75 GPM @ 44°F
  • Operating Pressure Range (Min - Max): 35 - 150 psi
  • Dimensions (Height x Width x Depth): 10.5" x 5.25" x 3"
  • Weight: 3.0 lbs

Warranty:
5-year limited warranty on leaks, 1-year on parts
