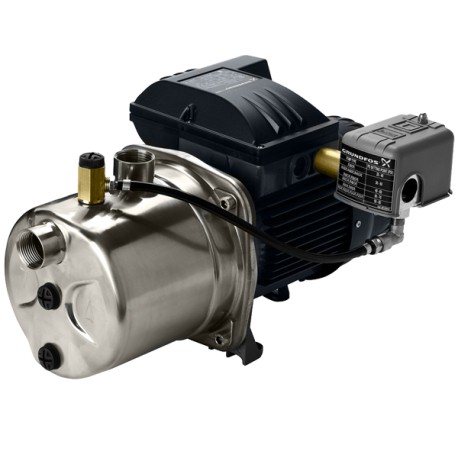

JP4-47ASI Stainless Steel Shallow Well Jet Pump, 1/2 HP, 115/230V
Brand: Grundfos
Part#: 97855075
Model: JP4-47ASI
In Stock
Usually ships: within 1 business days

Grundfos JP4-47ASI (97855075) is a 1/2HP Dual Voltage (115/230V) Stainless Steel Shallow Well Jet Pump


Features:
  • Corrosion-resistant stainless steel
  • End suction, top discharge arrangement
  • Technopolymer impeller
  • Built-in ejector complete with clean-out port to clear blockages from nozzle
  • Ceramic-carbon bellows mechanical seal ensures trouble-free operation
  • High quality pressure switch.

Read more

Technical Specifications:
  • Max. flow, GPM: 21
  • Max. pump head: 145ft
  • Max. working pressure: 116 PSI
  • Motor power: 1/2HP
  • Fluid temp range: 32 - 95F
  • Max. lift
  • : 25ft
  • Max. ambient temp: 104F
  • Factory pressure switch setting: 30/50 PSI
  • Storage temp: 14 - 104F
  • Relative humidity: 95%
  • Max. starts per hour: 20
