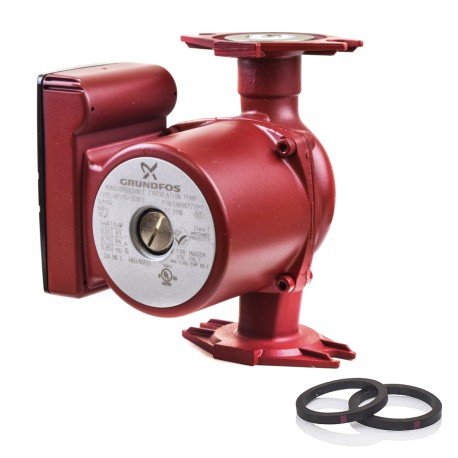

UPS15-35SFC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1/6 HP, 115V


Brand: Grundfos

Mfr Part#: 59896772

Model: UPS15-35SFC

UPC#: 632514174856

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$288.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs

Grundfos UPS15-35SFC (59896772) is a 1/6HP, 3-Speed Circulator Pump with stainless steel housing, suitable for a wide range of open loop and closed loop applications, including radiant heating, hydronic heating, solar, hot water recirculation, chilled water cooling and many others. 3 speeds of the Grundfos UPS15-35SFC model allow to adjust pump's parameters to match system requirements and achieve optimal performance.


  • Built-in motor protection for longer life;
  • Check Valve;
  • Includes (2) Gaskets;

Technical Specifications:

  • Voltage: 115V;
  • Amperage at Speed 1: 0.06 Amps;
  • Amperage at Speed 2: 0.75 Amps;
  • Amperage at Speed 3: 0.95 Amps;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Watts at Speed 1: 61W;
  • Watts at Speed 1: 85W;
  • Watts at Speed 1: 110W;
  • Max Pressure: 145 psi;
  • Max Temperature: 165F;
  • Min Temperature: 36F;

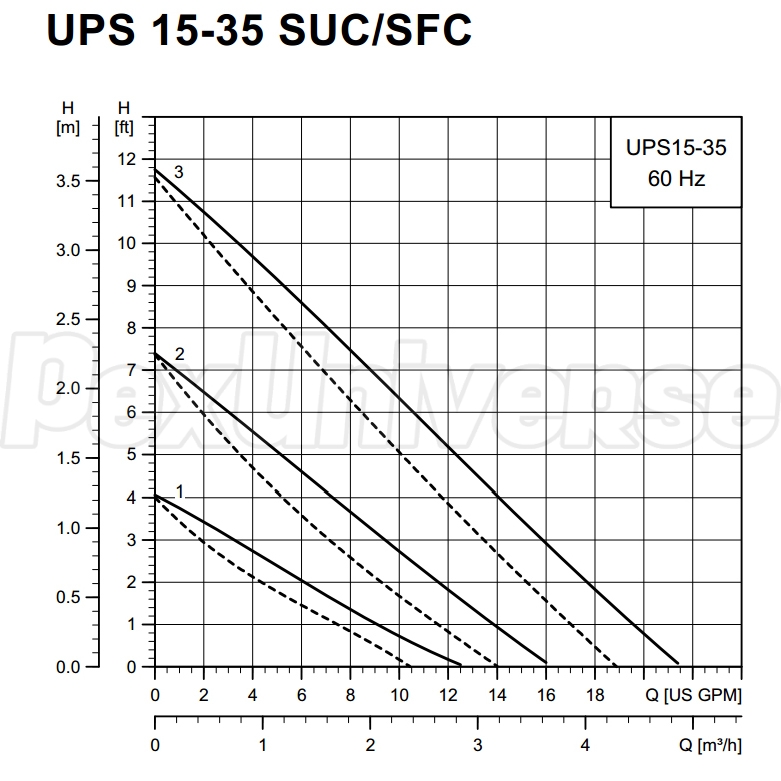

  • Flow Range: 0-21.5 GPM;
  • Head Range: 0-12 ft;
  • Horse Power: 1/6HP;
  • Body: Stainless Steel;
  • Connections: Flanged, 3/4", 1", 1-1/4";


2 years from the date of installation.
