UPS43-44FC 3-Speed Circulator Pump w/ IFC, 1/6 HP, 115V


Brand: Grundfos

Mfr Part#: 52722514

Model: UPS43-44FC

UPC#: 632514160767

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$327.95 / each & Free Shipping
x2 $629.90 & Free Shipping
(2 x $314.95 / each)
  • Description
  • Literature
  • Reviews (1)
  • FAQs

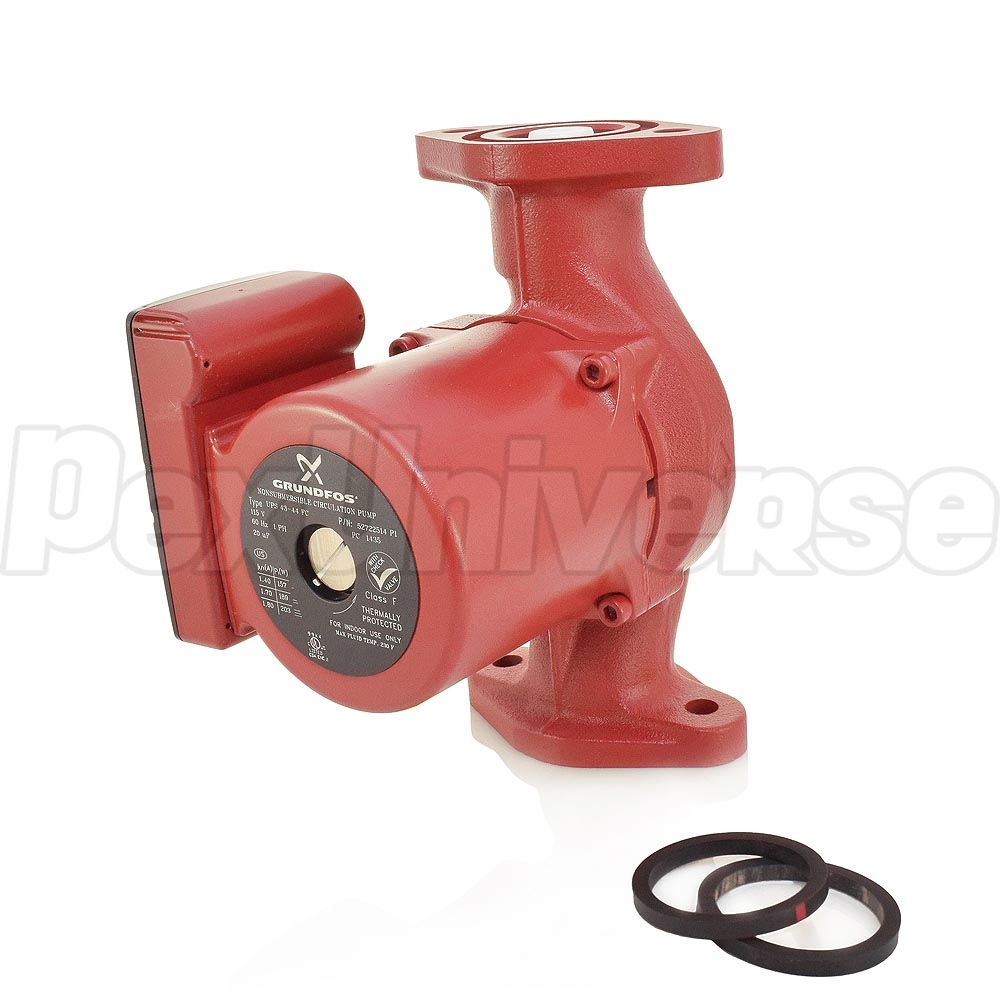

Grundfos UPS43-44FC (Grundfos SKU# 52722514) is a 3-Speed Cast Iron Circulator Pump with built-in Check Valve. It is also a high-velocity model designed for use in systems with high flow and low to medium pressure drop characteristics. Grundfos UPS43-44FC model is for use in closed loop applications only, such as radiant heating, baseboard heating, solar, fan coils, etc. Multiple speeds of this Grundfos circulator allow it to easily match the system's requirements and adjust it for optimal performance.


  • Built-in motor protection for longer life and better performance;
  • Integral Check Valve;
  • Whisper-quiet operation for sound sensitive installations;
  • Includes (2) Gaskets (O-rings).

Technical Specifications:

  • Voltage: 115V;
  • Amperage at Speed 1: 1.4 Amps;
  • Amperage at Speed 2: 1.7 Amps;
  • Amperage at Speed 3: 1.8 Amps;
  • Watts at Speed 1: 157W;
  • Watts at Speed 2: 189W;
  • Watts at Speed 3: 203W;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Max Pressure: 145 psi;
  • Max. Temperature: 230F;
  • Min. Temperature: 36F;

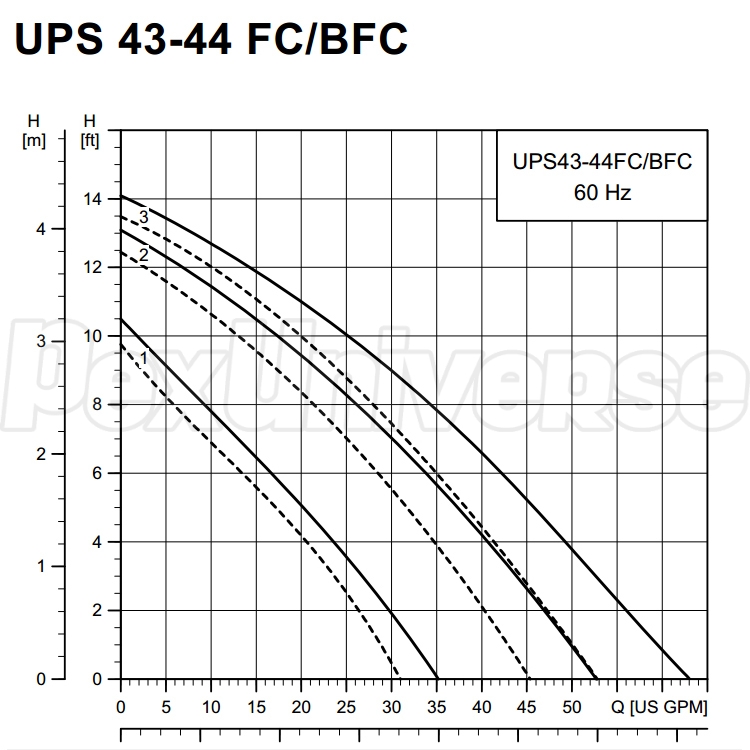

  • Flow Range: 0-63 GPM;
  • Head Range: 0-14 ft;
  • Horse Power: 1/6HP;
  • Body: Cast Iron;
  • Connections: Flanged, 3/4", 1", 1-1/4", 1-1/2;


2 years from the date of installation.
UPS43-44FC 3-Speed Circulator Pump w/ IFC, 1/6 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.
Works great
By HVAC Tech (from Lansing MI) on 4/28/2016
product as described
