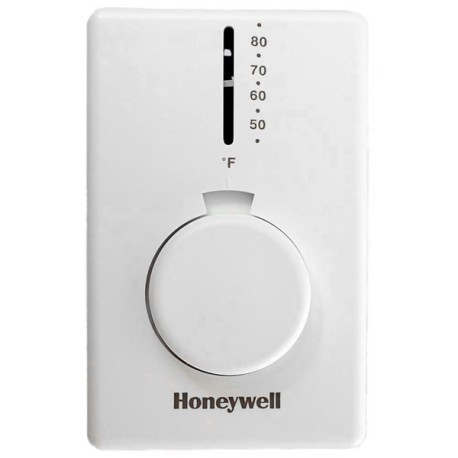

Honeywell T4398A1021 Electric Heat Thermostat for Electric Baseboard Heat includes thermometer, range stops and locking cover screws. A snap action switch of Honeywell T4398A1021 makes the heating circuit on temperature fall.
This High Performance Honeywell Electric Heat Thermostat provides precise line voltage control of resistive-rated electric heating equipment.
Applications:
- Electric baseboards
- Convectors and fan forced heaters (resistive rated loads)
- For control of resistive-rated baseboard electric heaters
- Extremely sensitive to temperature changes
- Replace virtually all standard wall-mounted line voltage thermostats
- Color-coded leads allow easy installation
- Include long-lasting Micro Switch mechanism
- Rugged, plastic mounting base
- Cover thermometer indicates room temperature
- Well suited for upgrades and high-end new construction
- Mounts directly on vertical 2 x 4" outlet box, or on 4 x 4" outlet box
Read more- Mounting: Vertical Mount
- Color: Premier White
- Stages: 1 Heat
- Electrical Connections: 6" (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used
- Switching Action: SPST
- Accuracy: 1°C
- Dimensions: 4-1/2" high x 2-7/8" wide x 2-5/8" deep
- Setting Temperature Range: 50°F to 80°F
- Differential Temperature: 2°F (1°C)
- Electrical Ratings: Noninductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac.
- Frequency: 60 Hz
- Sensor Element: Vapor filled dual diaphragm
- Ambient Temperature Range: 50°F to 80°F
- Approvals, Underwriters Laboratories Inc: Listed
- File No. E47434, Guide No. XAPX
- Approvals, Canadian Standards Association: Listed: File No. LR1322
- Includes: Thermometer, range stops and locking cover screws
- Tradeline Value: Tradeline
- Voltage: 120/208/240/277 VAC
