Honeywell TD-165 Tridicator

Tridicator, 1/4" NPT, 3-1/8" Dial, 60-320F, 75 psi max., 2" stem


Brand: Honeywell

Mfr Part#: TD-165

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$19.45 / each
  • Description
  • Reviews
  • FAQs (1)

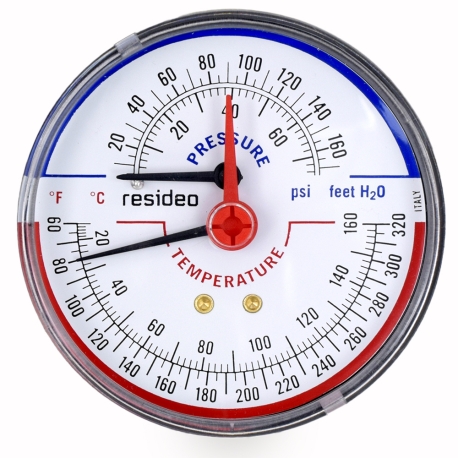

Pressure/temperature gauge with relief set point indicator for boilers and shut off valve.


  • Measurement: Fahrenheit/ Celsius/ PSI;
  • Maximum Temperature: 320F;
  • Maximum Safe Operating Pressure: 75 psi

Technical Specifications:

  • Application: Pressure/temperature gauge with relief set point indicator;
  • Connections: 1/4" NPT;
  • Dimensions: Dial Size - 3 1/8" (79.4mm), Stem length - 2" (42.1mm);
  • Maximum Safe Operating Pressure: 75 psi;
  • Temperature Range: 60°F to 320°F (15°C to 160°C);
  • Weight (lb): 0.3 lbs (0.14 kg);
  • Comments: Pressure/temperature gauge with relief set point indicator.


2 years manufacturer's warranty from the date of purchase.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
can you use this gauge to do a air pressure test for leaks in my pex pipe job
Read 1 answer
1 of 1 people found this answer helpful.
You can as long as the test pressure does not exceed the 75 psi limit at any given time. For pressure testing purposes, Sioux Chief 356-100PK1 model we carry would be a better choice - it has a higher (100 psi) limit and costs much less.
Answered on 9/16/2016 by PexUniverse Customer Service
