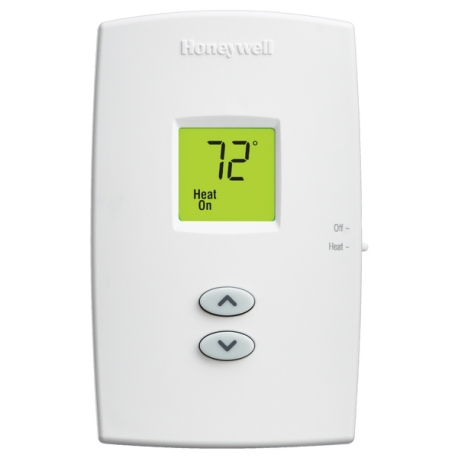

PRO 1000 Non-Programmable Vertical Thermostat, Heat Only
Brand: Honeywell
Part#: TH1100DV1000
In Stock
Usually ships: within 1 business days

PRO 1000 Vertical Non-Programmable Thermostat.


Technical Specifications:
  • Application: Heat Only
  • Dimensions (Height x Width x Depth): 4 11/16" x 2 7/8" x 1 1/8" (120mm x 74mm x 28mm)
  • Mounting: Vertical
  • Electrical Ratings: 20 to 30 Vac or 750 mV
  • Frequency: 50 Hz, 60 Hz
  • Stages: 1 Heat
  • Color: Premier White
  • Setting Temperature Range: Selectable 40°F to 90°F or 35°F to 90°F (4.5°C to 32°C or 1.5°C to 32°C) (Heat)
  • Switch Positions (System): HEAT-OFF
  • Terminal Designations: R, C, W
  • Power Method: Dual Powered: Battery or Hardwire
  • Display Size: 1.32 sq in.
  • Changeover: Manual
  • Operating Humidity Range: 5 to 90% RH, non-condensing
  • Cycles per Hour: Heating 2 - 6 CPH
  • Heat Current: 0.02 A to 1.0 A (running).

Read more
Write a Review
Helpful? Yes No
High Quality
This is a high quality product. Easy installation & works great!
By DIYer (from Kansas) on 02/14/2015
