LineVoltPRO Non-Programmable Line Voltage/Electric Heat Thermostat, DPST


Brand: Honeywell

Mfr Part#: TL7235A1003

UPC#: 085267262583

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$38.55 / each
x6 $222.30 / box & Free Shipping
(6 x $37.05 / each)
  • Description
  • Literature
  • Reviews (3)
  • FAQs (1)

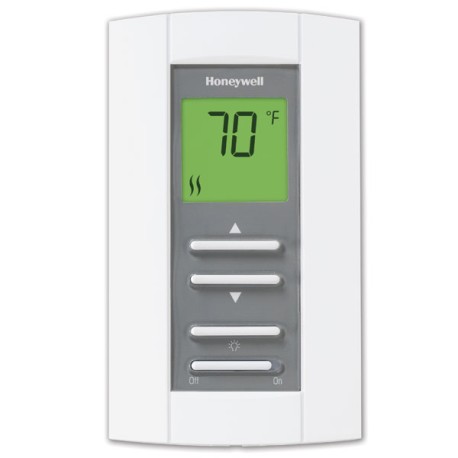

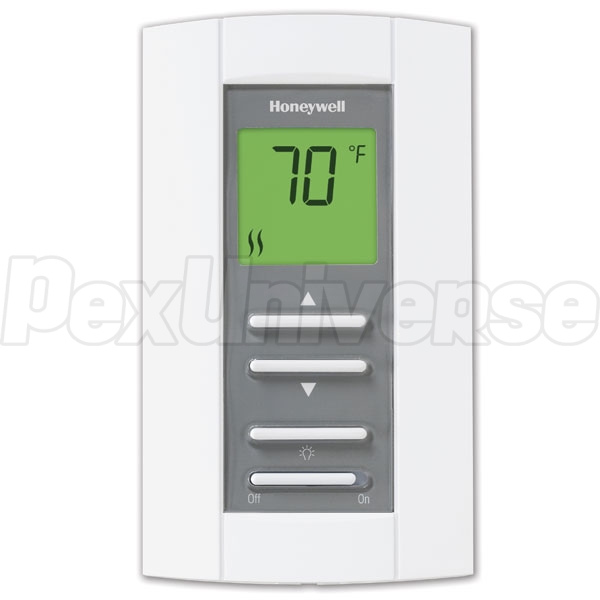

Honeywell TL7235A1003 LineVoltPRO 7000 Thermostat (Non-programmable) features large, clear, backlit display (easy to read in various lighting conditions) and is soundproofed for quiet operation (reduces the clicking noise commonly heard with conventional thermostats).
The Honeywell LineVoltPRO 7000 digital thermostat provides electronic control of 208/240 Vac resistive rated electric baseboard heaters, radiant ceiling heat, convectors and fan forced heaters. If used as directed, Honeywell TL7235A1003 Double Pole electronic thermostat can save up to 10% on annual heating costs. Savings may vary based on geographic region and usage.


  • Electronic temperature control - precision of +/-1F saves up to 10% on heating bills;
  • On/Off switch allows you to turn the thermostat off at the end of the heating season;
  • Heating indicator - at a glance confirmation that the heat is on;
  • Maintenance free - no batteries required;

Technical Specifications:

  • Mounting: Vertical Mount;
  • Color: Premier White;
  • Stages: 1 Heat;
  • Electrical Connections: 5.5" (140mm) tinned copper lead wires;
  • Switch Type: Relay;
  • Switching Action: DPST;
  • Accuracy: +/-1F;
  • Dimensions: 4 7/8" high x 2 3/4" wide x 7/8" deep;
  • Setting Temperature Range: 40F to 86F;
  • Electrical Ratings: 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC;
  • Frequency: 50 Hz;
  • Frequency: 60 Hz;
  • Sensor Element: Thermistor;
  • Operating Temperature Range: 32F to 122F;
  • Approvals, Underwriters Laboratories Inc: UL Listed 9R12, File Number: E183695;
  • Approvals, Canadian Standards Association: cCSAus, File Number: LR76030;
  • Voltage: 208/240 Vac;
LineVoltPRO Non-Programmable Line Voltage/Electric Heat Thermostat, DPST has an average 5.0 out of 5 rating based on 3 user reviews.
1 of 1 people found this review helpful.
easiest thermostat ever
By Dr Ted (from Oceanport, NJ) on 11/19/2011
I have an all electric home circa 1970. I replaced all the thermostats with line volt pro 7000 units. The instructions were simple and the units were easy to install. The savings were immediate. Now the house is not too hot or not too cold. Its just right!
Was this review helpful?  Yes / No
Works great
By PAM (from New Jersey) on 7/13/2016
Product is great. Easy to install and works perfectly. Great price
Was this review helpful?  Yes / No
Great product easy to install
By Verified Buyer on 3/5/2015
Excellent service and communication from Pex Universe
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
what does heat cycle mean on non programmable thermostat
Read 1 answer
1 of 1 people found this answer helpful.
Many thermostats operate in cycles (for ex. 15 min.) instead of constantly checking the temperature sensor readings, so if your temperature is set to 72F and thermostat reads 71F, it will engage and will allow the heating system to run for 15 minutes, even if the ambient temperature goes above your 72F setting.
Answered on 12/12/2012 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
