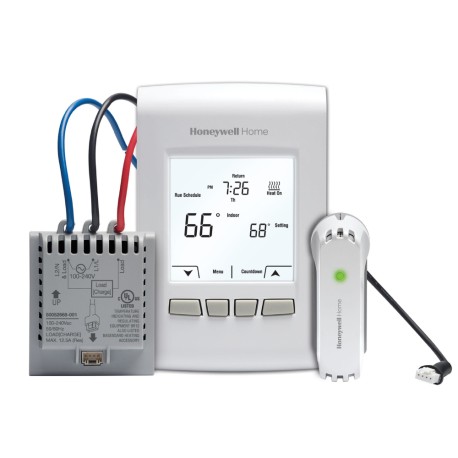

Honeywell/Resideo YTL9160AR1000 is a unique thermostat kit which allows to relocate temperature control from a built-in external electric baseboard/fan/convection heater thermostat to a convenient location without the need to run extra wires. This is achieved by installing the EIM (Equipment Interface Module + antenna - both included in the package) in place of the old thermostat and pairing it with new EConnect thermostat via RedLINK. Each thermostat supports up to 8 EIM's, allowing temperature control for one or more rooms in residential or commercial settings (incl. office space storage, etc.). EConnect thermostat can wirelessly communicate with all other RedLINK enabled accessories and is also compatible with C7089R1013 outdoor sensor, REM5000R1001 portable comfort control and THM6000R7001 internet gateway.
Compatible with a wide rangle or baseboard manufacturers, including Cadet, Ouellet, Marley, King Electrical, Stelpro, TPI and Global Commander.
Note: a single EIM can be connected to multiple heaters as long as combined load does not exceed limit (see Specs).
Features:
- Transfer temperature control from a 120/208/240V electric baseboard/fan/convection heater to a location of your choice
- One thermostat supports up to (8) modules
- RedLINK enabled wireless communication - no new wires to install
- Compatible with most electric baseboard brands
- Works with Honeywell outdoor sensor and portable comfort control/remote
- 12/24-hour format
- Fahrenheit (F) or Celsius (C) display mode
- Keypad lock (none/partial/all)
- Adaptive Intelligent Recovery (optional setting) is an improved version or Early Start - the system optimizes start time to reach desired temperature by programmed time settings
- Anti-freeze (freeze protection) mode - maintains room at 55F if connection is lost
- Programmability: Programmable, 7-Day
- Stages: Heat Only - electric baseboards, convectors and fan forced heaters (resistive rated loads)
- Interface: Button
- Display: Monochrome
- Display Size: 4.53 sq. in
- Mounting: Vertical
- Color: White
- EIM Electrical Ratings: min. load: 0.4A (resistive only) 100W @ 240Vac, 50W @ 120Vac; max. load: 12.5A (resistive only), 3000W @ 240Vac, 1500W @ 120Vac; 50/60Hz
- Power Method: Thermostat - Battery Only (2 x AA); EIM - Harwired Only
- Switching Action: SPST
- EIM Electrical Connections: 6" copper lead wires
- Setting Temperature Range: 41°F - 86°F
- Temperature Display Range: 32°F - 104°F
- Accuracy/Temperature Differential: 1F
- Ambient conditions: Thermostat 32 to 122°F, 5 to 90% RH, non-condensing; EIM: -4 - 140°F, 5 to 95% RH, non-condensing
- Connection Protocol: RedLINK
- Dimensions (Height x Width x Depth): 5.1" x 3.2" x 1.1" (130mm x 82mm x 29mm)
- Packaged Weight: 26.5 oz
3-year warranty
