Safgard 1100, Low Water Cut-Off w/ Auto Reset & Test Button, Gas, 24V Hydrolevel
Safgard 1100, Low Water Cut-Off w/ Auto Reset & Test Button, Gas, 24V
Brand: Hydrolevel
Part#: 45-1100
Model: Safgard 1100
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

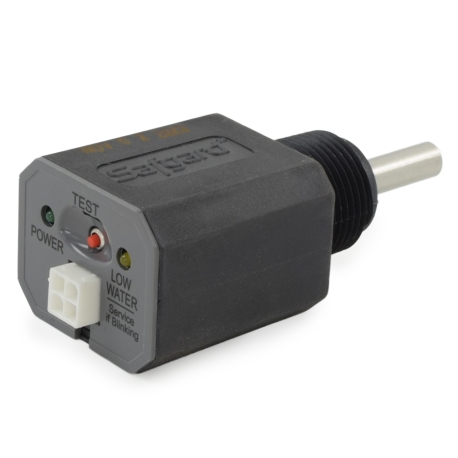

Hydrolevel Safgard 1100 is a compact 24V low water cut-off (LWCO) w/ auto reset, designed to immediately interrupt power in a low water condition. Automatically restarts burner when water level return to normal. Features a test button for checking control functionality without lowering the water level or removing the probe. Includes labeled wire harness.

Cross-References:
  • McDonnell & Miller: RB-24, RB-24E
  • Taco: LTR024

Features:
  • Includes labeled wire harness for easy connection
  • Test button for easy diagnostics without lowering the water level or removing the probe
  • Auto reset mode
  • Power, low water, and service-needed LED indicators
  • Standard 4-pin rectangular Molex connector (to LWCO)
  • Compact size and heavy-duty construction
  • Suitable for wiring to 24VAC transformer, Honeywell R8285 control center (or equivalent) or Honeywell L8148E / L8124E aquastats

Technical Specifications:
  • System Type: Hot Water Gas Boilers
  • Reset: Automatic
  • Connection: 3/4" NPT
  • Electrical Specs: 24V, 60 Hz, 1 VA (Power Consumption); 5 A (Max Load), SPST (Relay Type), NEMA 1 Enclosure
  • Switching Capacity: 50 VA
  • Max Pressure: 160 psi
  • Max Water Temperature: 250°F
  • Max Ambient Temperature: 170°F
