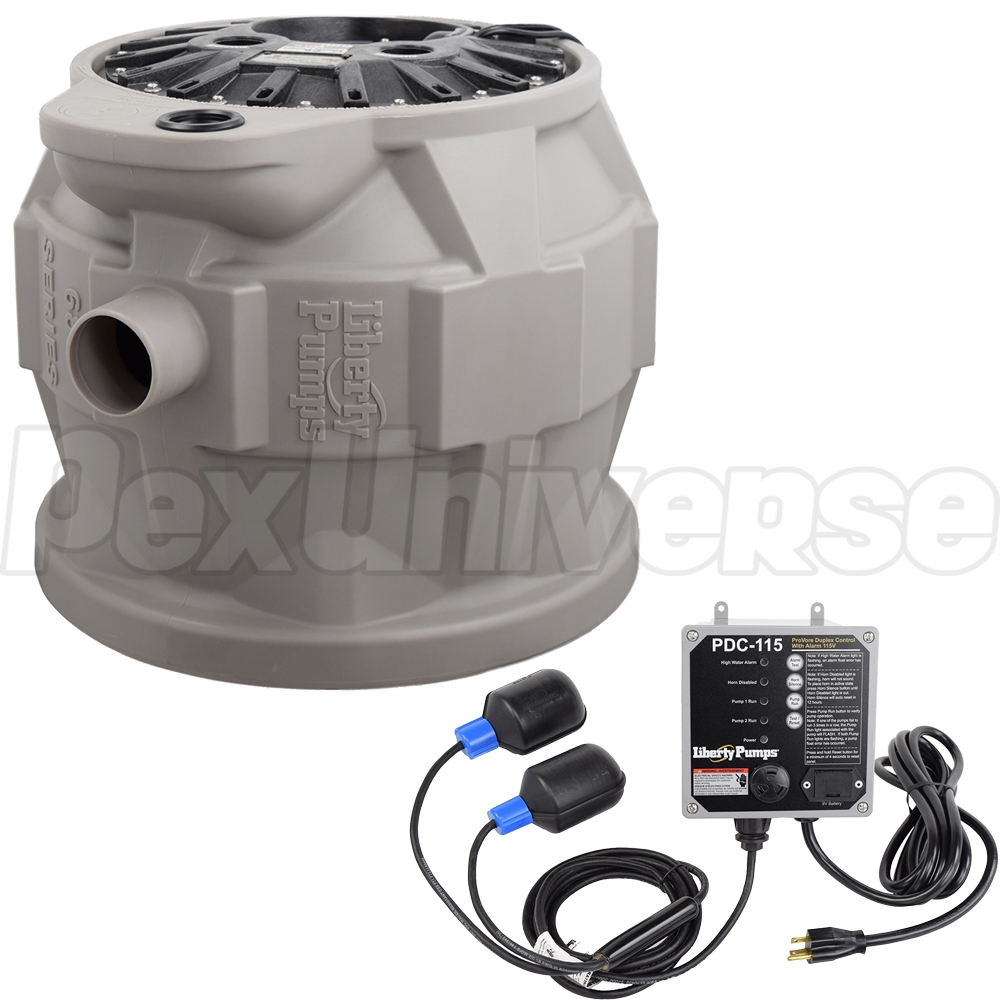

1/2 HP Pro680 Duplex Sewage System w/ LE52M Pumps, 30" x 24" Basin & Indoor Control, 230V, 10' cord
Brand: Liberty Pumps
Part#: P682XLE52
Usually ships: within 5-7 business days

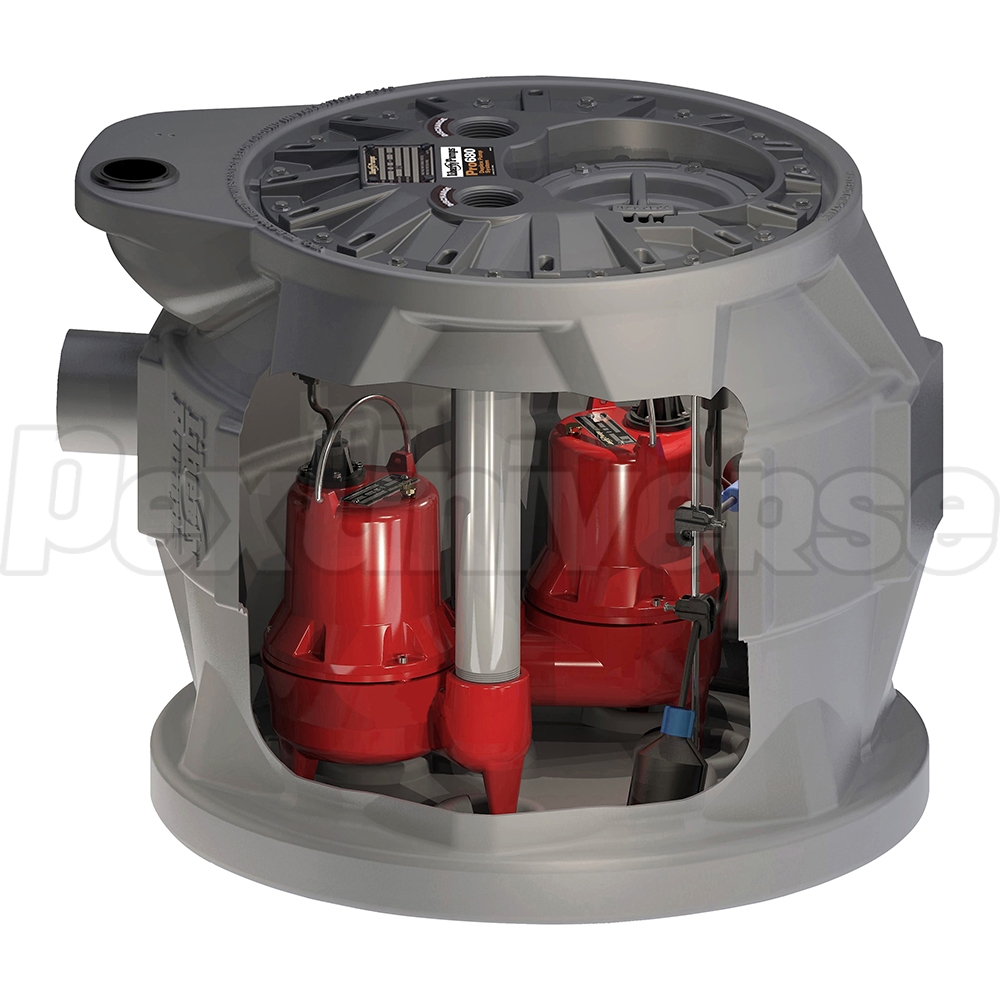

Liberty ProVore680 is a duplex sewage ejector system which includes a basin, (2) sewage pumps and a control panel with integrated alarm - all factory assembled and ready for installation - simply connect the piping and plug the control panel into an outlet.
The PDC series control panel operates the pumps in an alternating mode (1st, then 2nd, then again 1st and so on), equalizing wear and extending their lifespan. If one of the pumps gets clogged or is malfunctioning, the second pump will assume its' job while the alarm alerts the user.
ProVore680 is a high-quality, robust, made in the USA system, which delivers reliable performance in a compact package. It is ideal for a variety of commercial and residential needs where the sewage system must operate without interruptions and deliver a worry-free performance with virtually zero maintenance.

Features:
  • Factory-assembled and ready for installation - simply connect the piping and plug the cords into the outlets
  • Complete packaged system - includes PDC series indoor duplex control w/ factory pre-installed floats & integrated alarm
  • Two pumps (alternating operation) - provide peace of mind and ensure zero downtime
  • QuickTree float switch system for easy access to floats without taking off main cover or removing the pumps
  • One-piece, heavy-duty basin with integrally molded anti-flotation collar & torque stops
  • Robust basin cover with (16) stainless steel bolts - fully gasketed, passes 10' stack test (IAPMO listed)
  • Made in the USA

Technical Specifications:

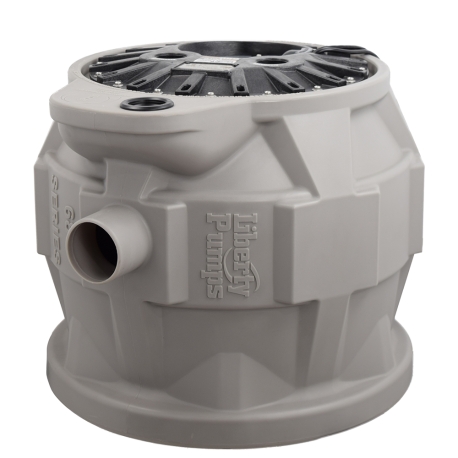

  • Basin Size: 30" Wide x 24" Deep
  • Basin Capacity: 46 Gallons
  • Pump Models: 2 x LE52M sewage pumps (both plug into the control panel)
  • Individual Pump Specs: 1/2 HP, 208-230V, 6.8A, 1-Phase, 10ft cord (w/ plug)

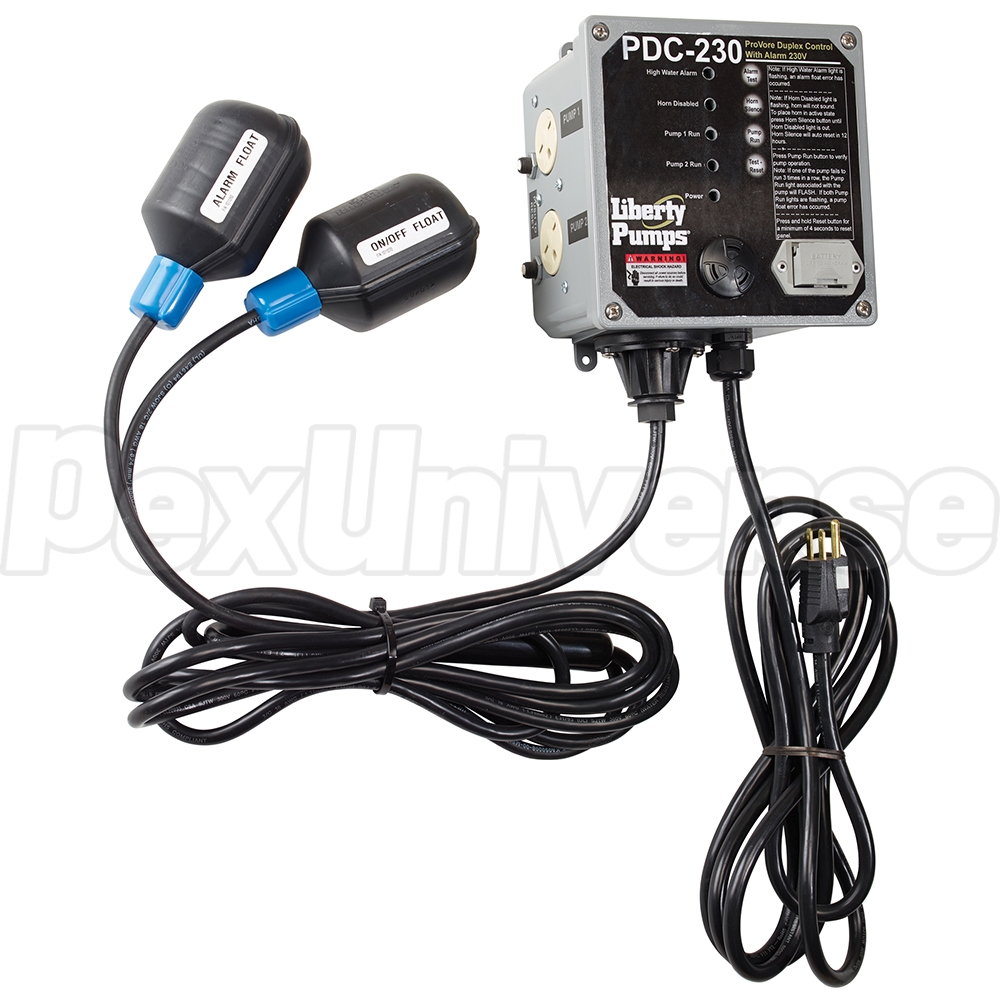

  • Control Specs: PDC-230 model (indoor only), alternating pump operation, 230V (w/ 9V alarm backup), comes pre-installed
  • Connections: Two x 2" FNPT Discharge, 2" or 3" Vent (Uni-Seal Grommet), 4" No-Hub Inlet
  • Approx Weight: 136 lbs

Warranty:
3-year warranty
