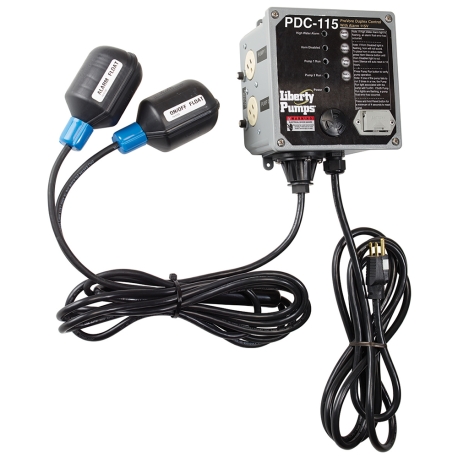

PDC series control is designed for use with duplex sump, sewage, effluent or grinder systems where individual pump does not exceed 12A (1 HP). It is plug-in ready - simply install the floats in the basin/tank, plug the pumps into the outlets on the panel and control itself into a wall outlet.
(2) factory pre-wired float switches (one for On/Off and the other for Alarm) mount on discharge pipe of either of two pumps (mounting hardware included). The control alternates pump operation (1st, then 2nd, then 1st again and so on), effectively equalizing their wear and extending their lifespan, and in the event one of the pumps is down, the panel will alert the user and will assign all the workload to the second pump until the issue is resolved.
PDC control comes standard on all Pro680 and ProVore680 duplex basin systems and is universally compatible with other brand pumps and basins. It is a time-tested, reliable and versatile control suitable for both residential and commercial applications.
Features:
- Universally compatible with all 115V indoor duplex systems (sewage/grinder) with individual pump at or below 1HP (12A max)
- Alternates pump operation, equalizing wear and extending their life span
- Plug-in ready for quick and easy installation
- 9V battery alarm backup
- External LED indicators for easy diagnostics
- 6 hour run limiter protects pump against run-dry conditions
- Button controls for alarm test, horn silence, pump run and test/reset
- Control Type: Duplex, alternating, non-simultaneous
- Alarm: built-in horn and external LED light
- Number of Floats: 2 (On/Off & Alarm)
- Compatibility: All 115V sewage & grinder duplex systems (incl. Liberty Pro680, ProVore680 & others) with individual pump not exceeding 1 HP (12 A)
- Electrical: 115V, plug-in power cord, 1-Phase, Indoor NEMA 1 Enclosure, 25ft float switch cord - all factory pre-wired, 20A dedicated outlet req'd
- Dimesions (Depth x Width x Height): 4.5" x 6" x 6"
- Approx Weight: 8 lbs
3-year warranty
