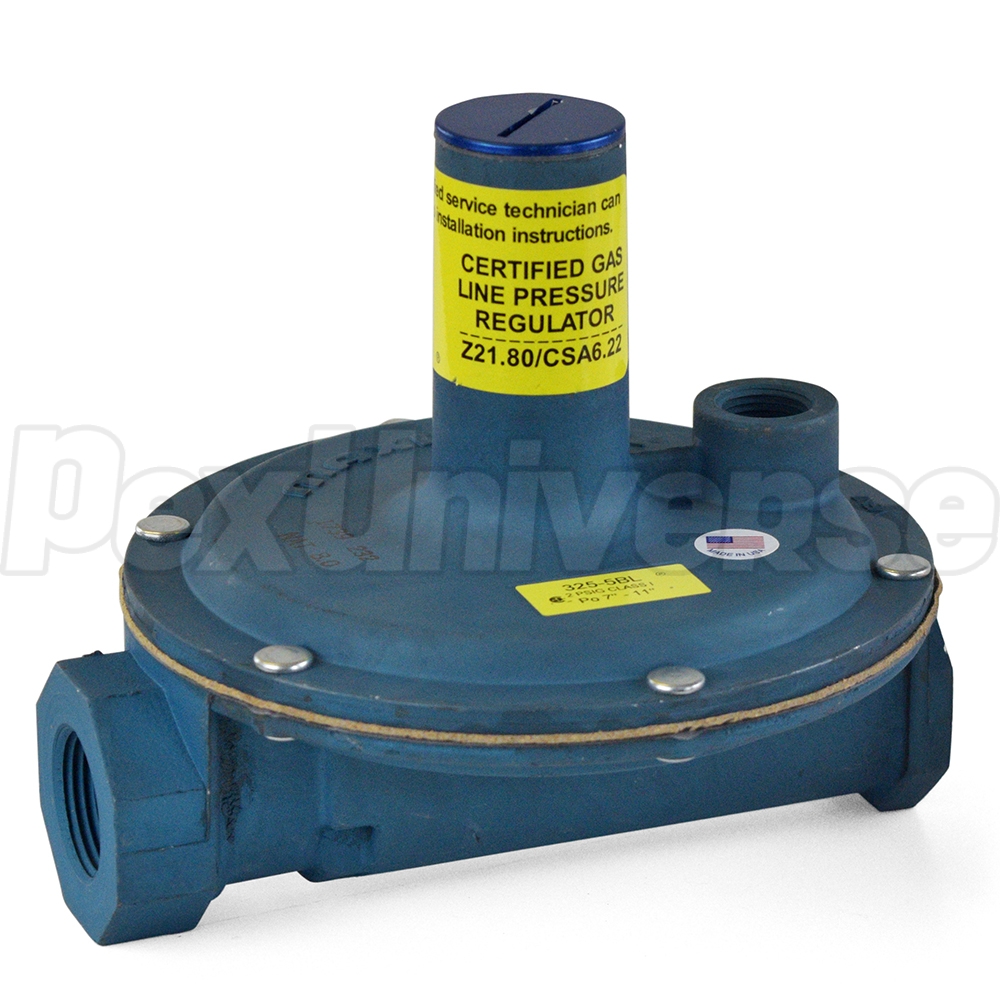

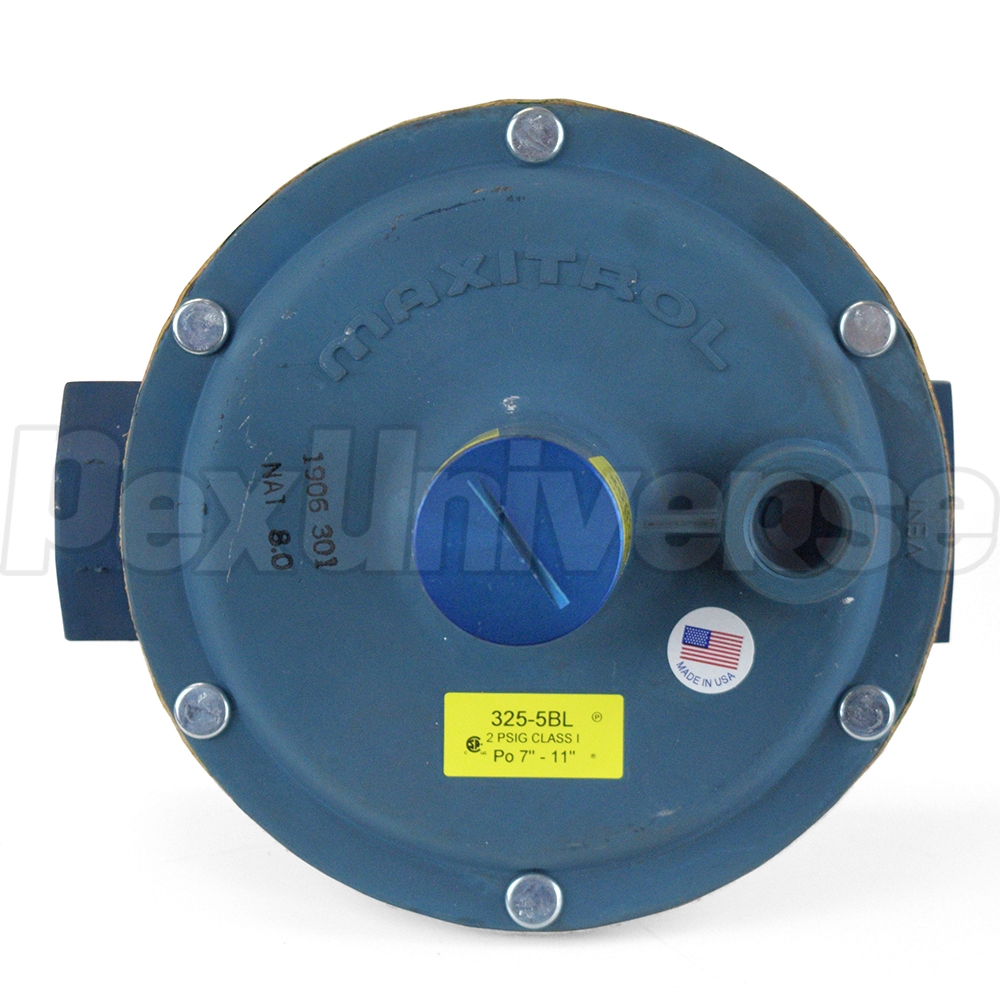

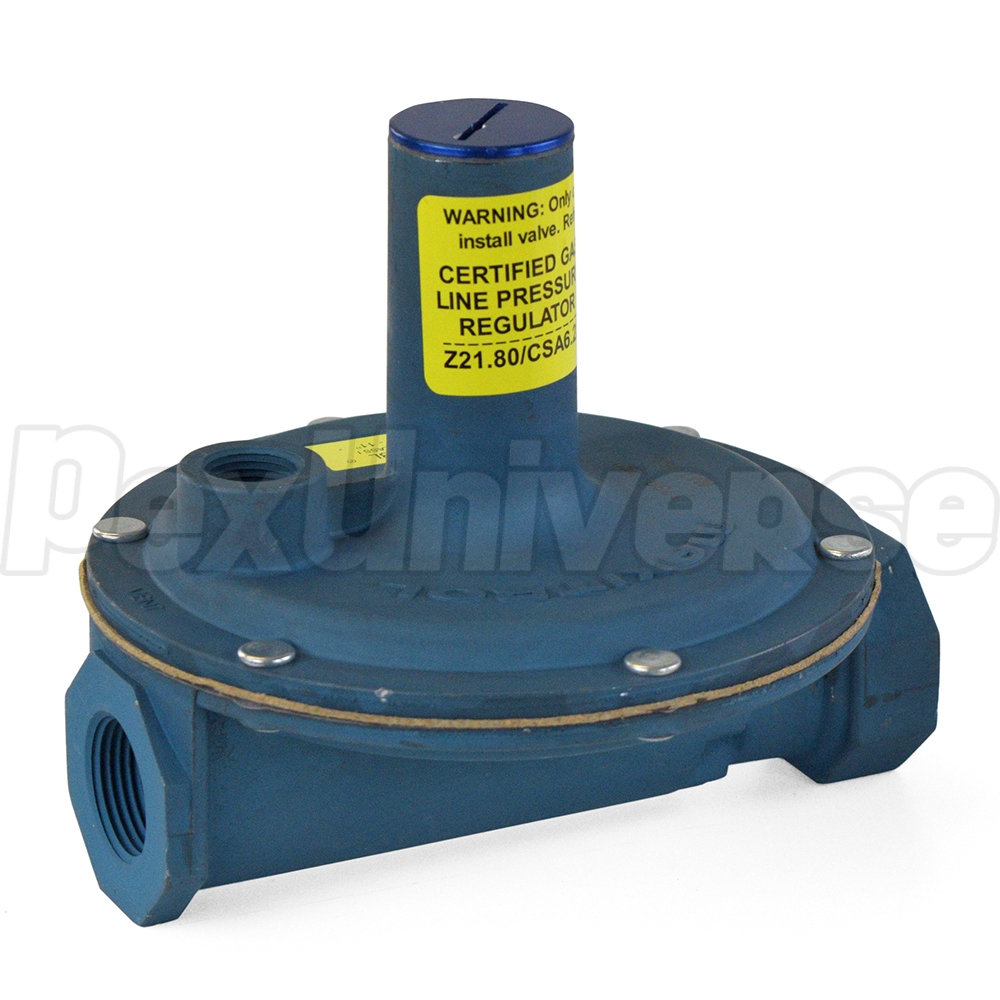

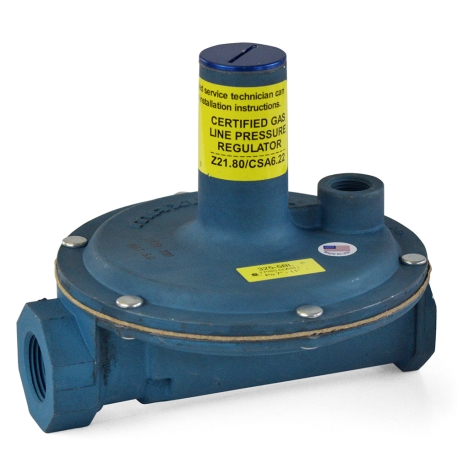

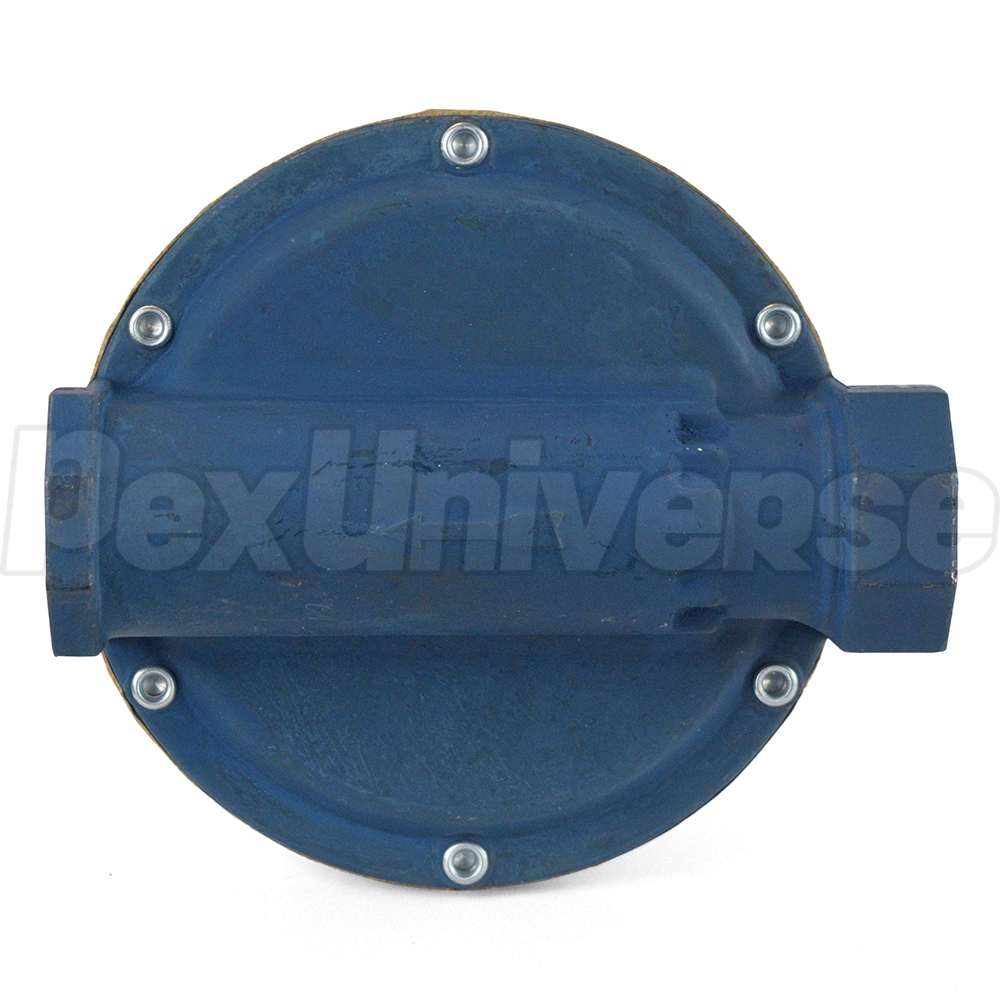

3/4" Gas Appliance & Line Pressure Regulator w/ Imblue Coating (325-5L series)
Brand: Maxitrol
Part#: 325-5BL-3-4
made in usa
325-5BL series, Maxitrol 3/4" gas line pressure regulator with Imblue coating for improved corrosion resistance in outdoor applications.
NOTE1: this product requires 13A31-50 vent protector when installed outdoors.
NOTE2: This product is intended for installation by a licensed gas professional.

Features:
  • Imblue coating for enhanced corrosion resistance in outdoor applications
  • Lever-acting design
  • Positive dead-end lockup
  • Precise control from full flow down to pilot flow
  • Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
  • CSA certified & labeled
  • Complies with ANSI Z21.80/CSA 6.22 (standard for line pressure regulators) and ANSI Z21.18 (as appliance regulator)
  • Made in the USA

Technical Specifications:
  • Inlet/Outlet Connection: 3/4" NPT
  • Rated Inlet Pressure: 2 psi (CSA Certified); 5 psi (w/ OPD); 10 psi (Maxitrol Rated)
  • Outlet Pressure Range: 7" - 11" w.c. (White Spring)
  • Factory-Set Pressure (w.c.): 8"
  • Emergency Exposure Limits: 65 psi (Inlet Side Only)
  • Capacity (Combined): 600,000 BTU/hr
  • Max Individual Load (Single Appliance): 425,000 BTU/hr
  • Operating Temperature Range (Ambient): -40 - 205°F
  • Vent Connection: 3/8" NPT
  • Housing material: Aluminum
  • Dimensions (L x H): 5.9" x 5.3"
