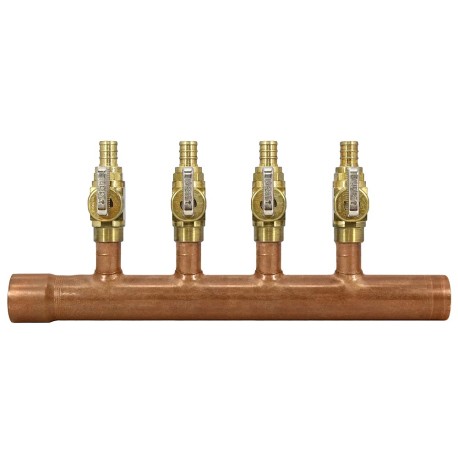

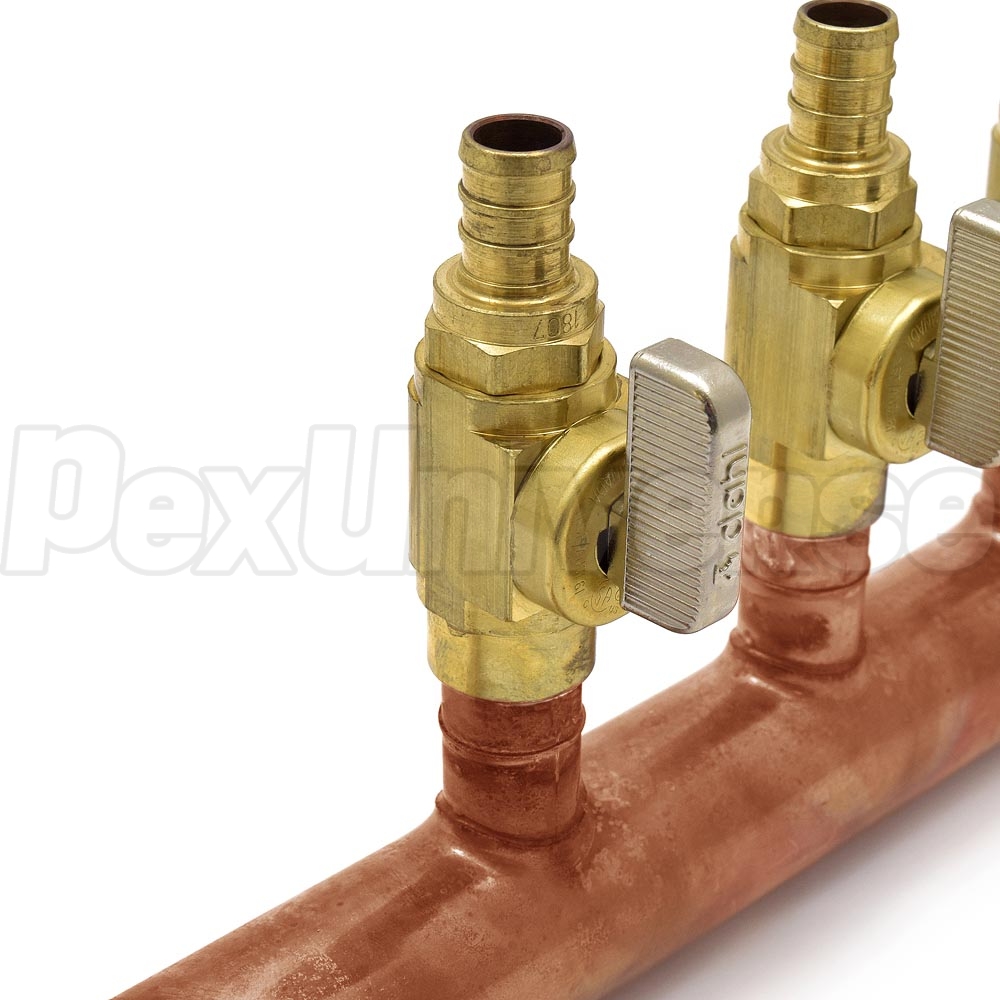

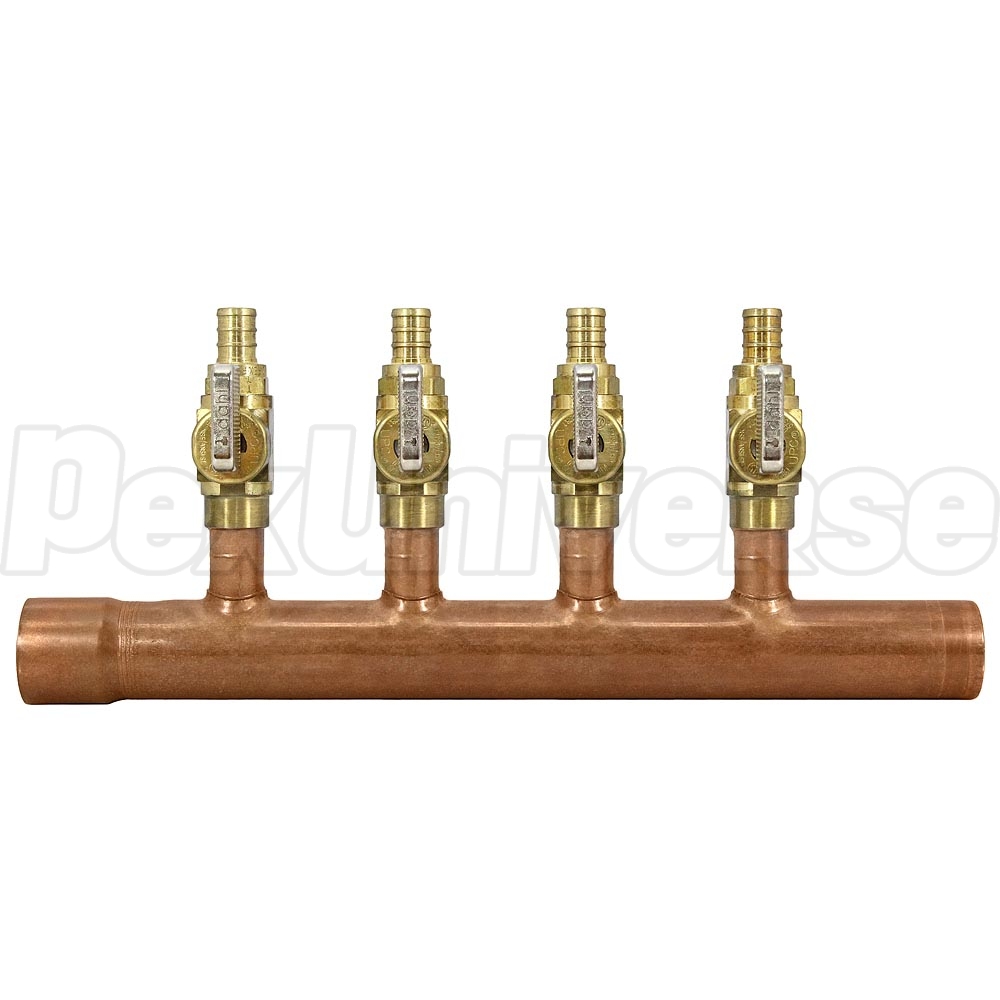

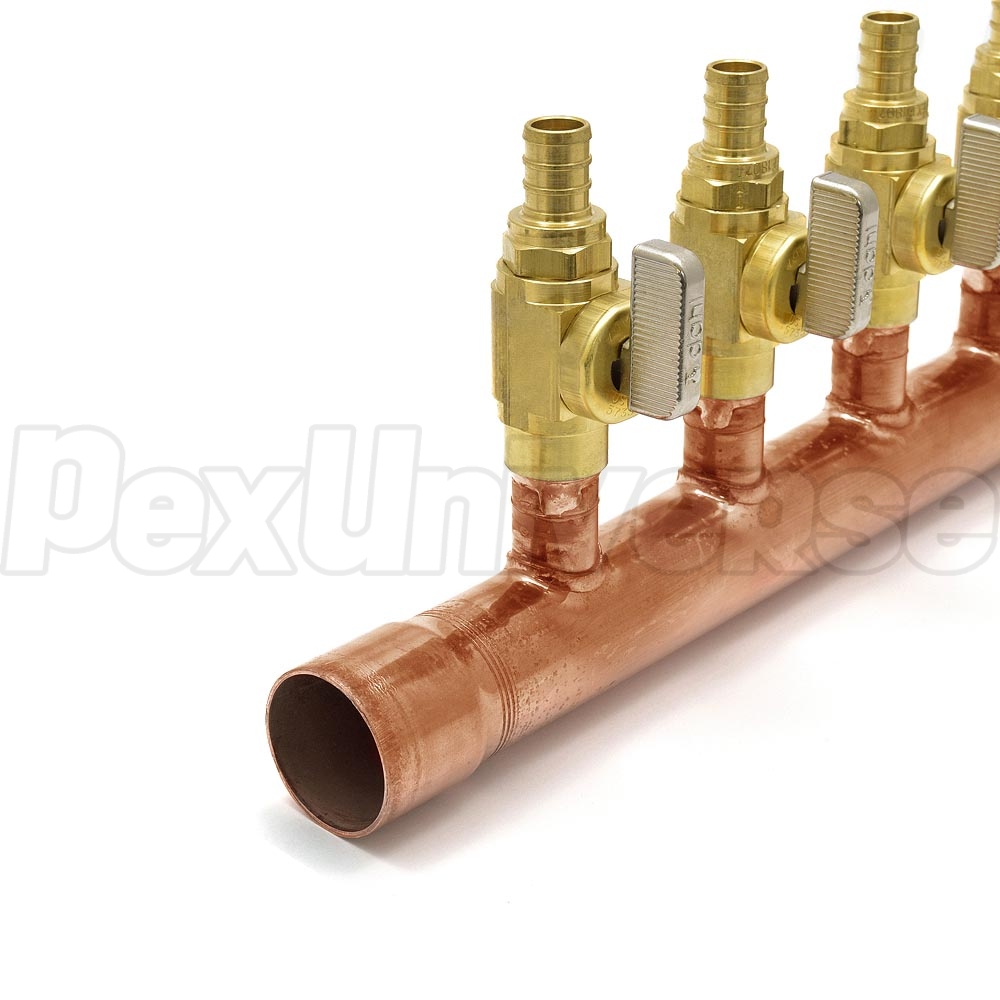

4-port Copper Manifold with 1/2" PEX Valves, 1" F x M Sweat
Brand: Sioux Chief
Part#: 672XV0442
In Stock
Usually ships: within 1 business days

Sioux Chief copper manifold with copper sweat trunk inlet/outlet and 1/4-turn shut-off ball valves with crimp style connections. Various combinations of 2, 3 or 4-branch models can be soldered together in series to create a manifold with a desired number of branches.


Features:
  • No lead
  • Trunk made from pure, L-type copper
  • Valves made from lead-free brass
  • Ball valves feature PEX crimp style inlet/outlets (F1807)
  • Can be installed using crimp ring or cinch clamp connection systems
  • Can be used as primary or secondary manifold
  • cUPC listed
  • Made in the USA

Read more

Technical Specifications:
  • Trunk inlet: 1" copper (female sweat - same size as copper fitting)
  • Trunk outlet: 1" copper (male sweat - same size as copper pipe)
  • Trunk size (diameter): 1" copper pipe (CTS)
  • Branches: 1/2" PEX (1/4-turn ball valves)
  • Number of branches: 4
  • Branch spacing: 2" OC (On Center)
  • Overall size (Length x Height): 10-3/4" x 4.5"

Read more
Ask a Question
Can you use the standard pex pinch style clamps on this manifold ?
Helpful? Yes No
Yes, you can use the Oetiker type clamps as well as the copper crimp rings.
By PexUniverse Customer Service on 06/03/2015
Why do you not recommend this for use as radiant floor manifold?
Helpful? Yes No
This manifold can be used for radiant floor heating applications, but only when all PEX loops are the same length. Since this manifold lacks such features as flow meters, balancing valves, drain/fill valves and an air vent, all of which are present in a radiant heat manifold and are essential for proper monitoring and balancing of the heating system, 672VX0422 and similar valved copper manifolds are suitable only for very basic radiant heating projects.
By PexUniverse Customer Service on 12/23/2013
