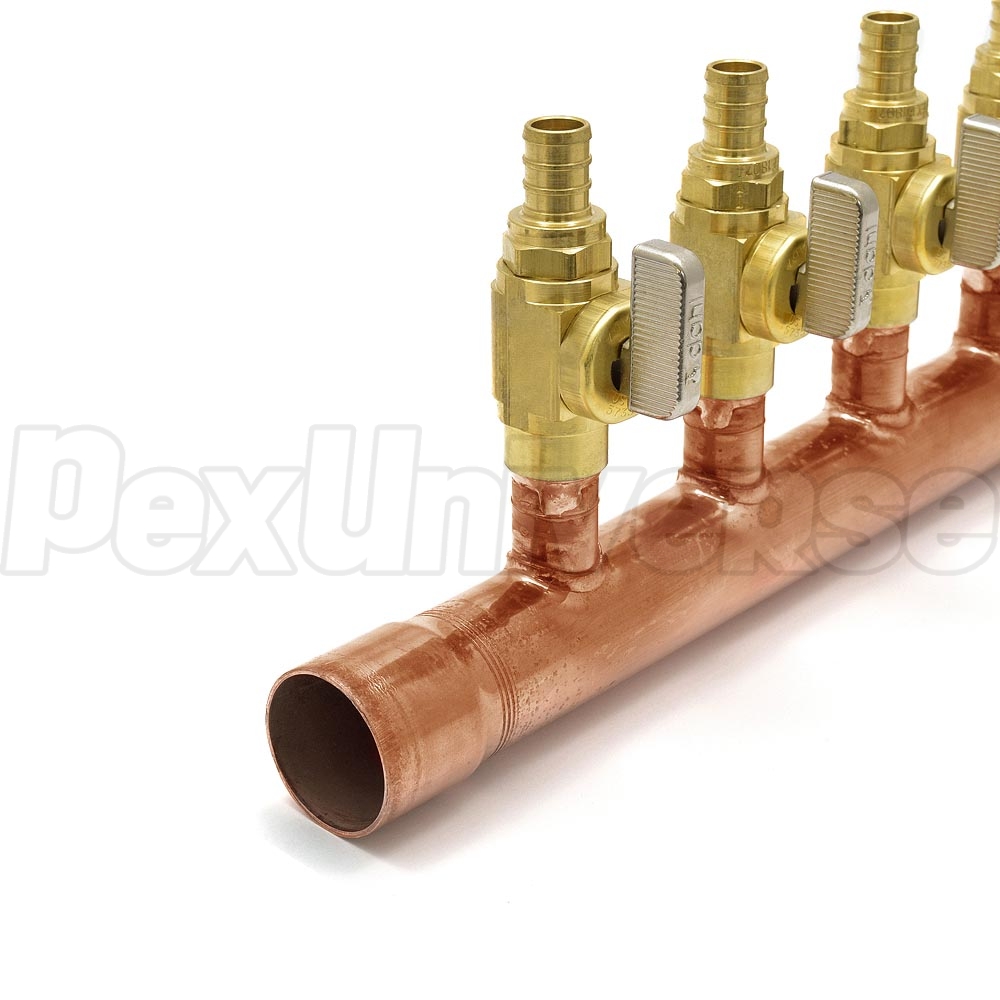

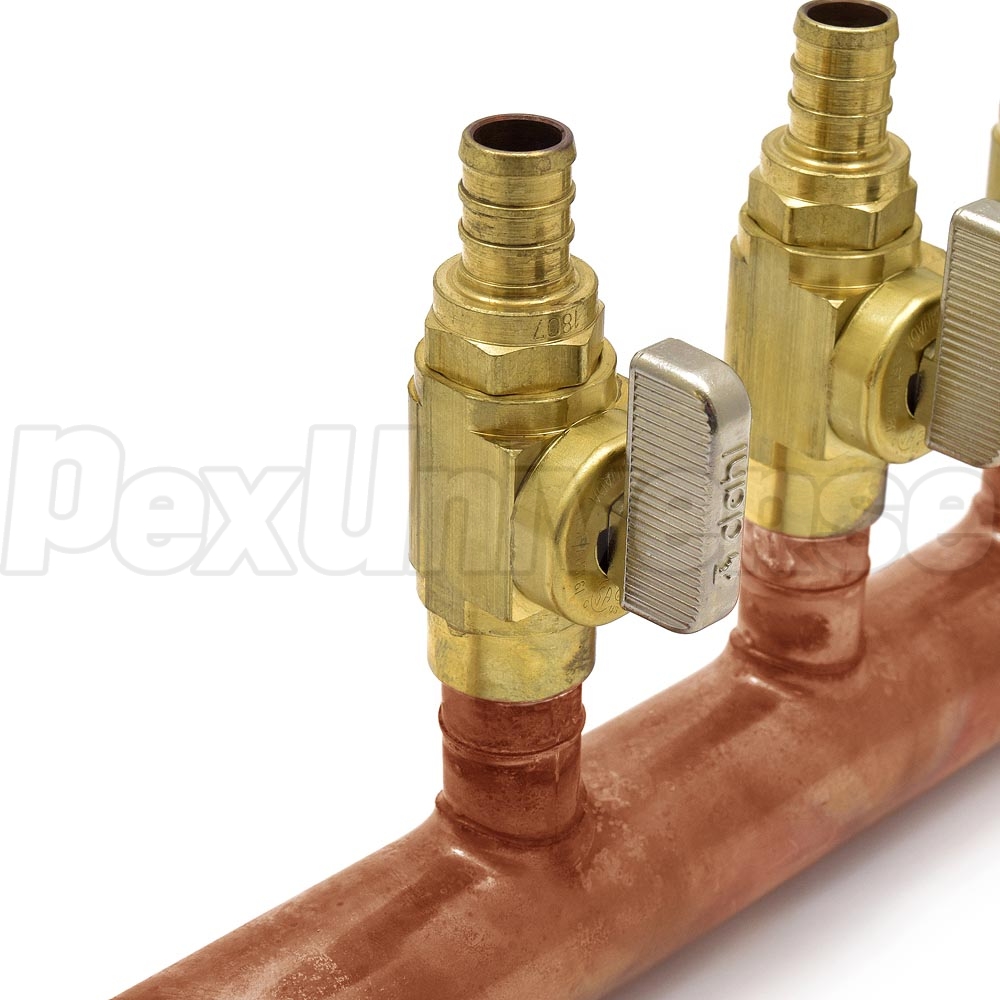

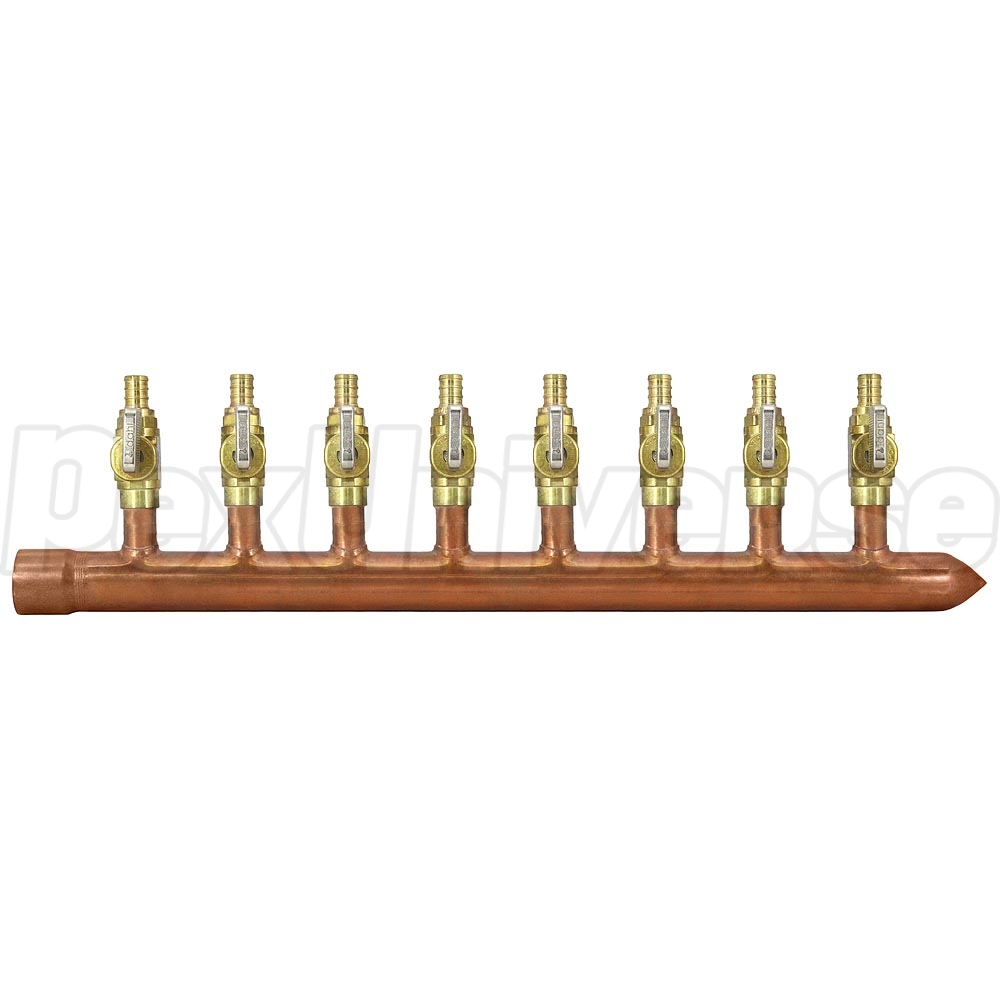

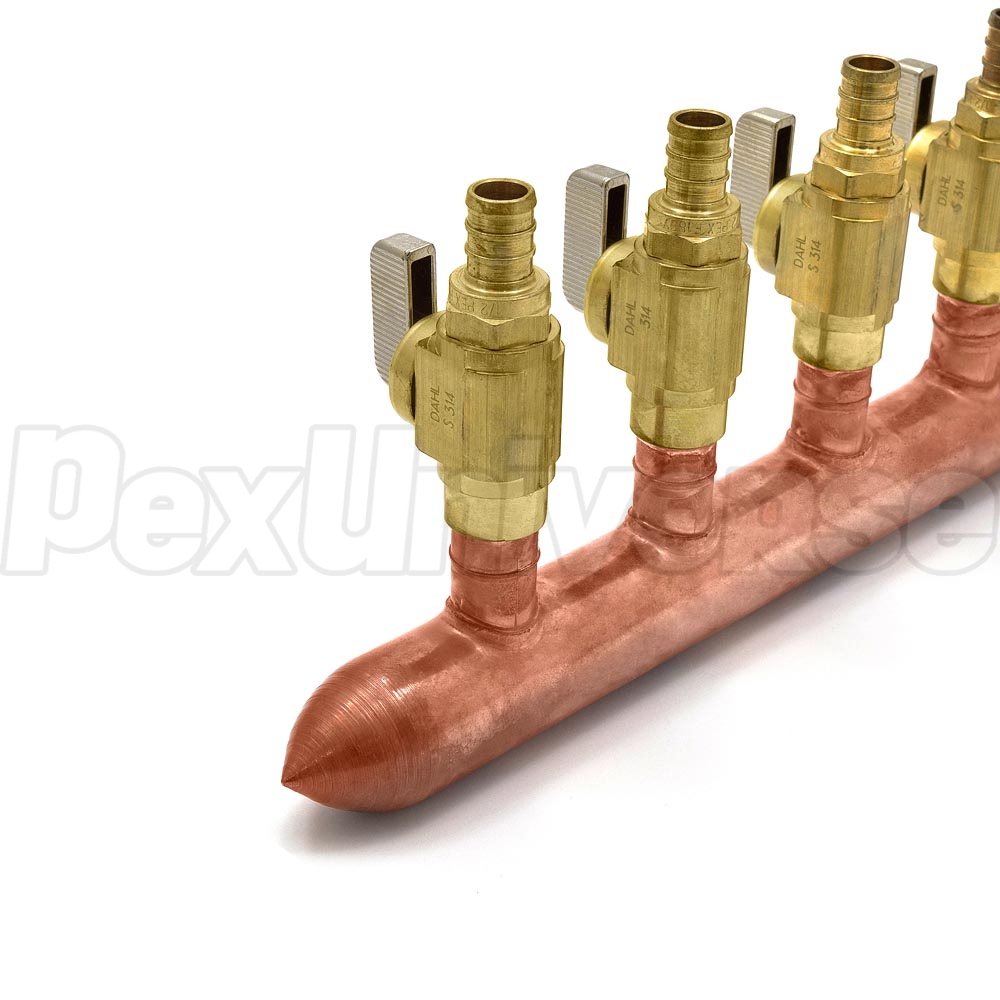

8-port Copper Manifold with 1/2" PEX Valves, 1" Sweat, Closed, Right-Hand
Brand: Sioux Chief
Part#: 672XV0810
In Stock
Usually ships: within 1 business days

Sioux Chief manifold with 1" sweat inlet and 1/2" PEX, crimp style, 1/4-turn mini brass ball valve outlets.


Features:
  • Lead-free
  • Type L copper trunk
  • Shut-off ball valves made from lead-free brass
  • Compatible with crimp or cinch PEX connection systems
  • cUPC listed
  • Made in the USA

Read more

Technical Specifications:
  • Right side version (trunk inlet on the left side, trunk outlet is spin closed)
  • Trunk inlet: 1" female sweat (accepts 1" copper pipe)
  • Trunk diameter: 1" copper pipe
  • Branches: 1/2" PEX, crimp style (1/4-turn ball valves)
  • Number of branches: 8
  • Branch spacing: 2" OC (On Center)
  • Overall size (L x H): 18-1/4" x 4.5"

Read more
Write a Review
Helpful? Yes 4 No
Verified Purchase
First experience with pex manifolds DIY
My pipes were 3/4, and the inlet for this manifold was 1 inch, so I had to solder a 3/4-1 bushing. Otherwise, the crimping part was easy. I installed the manifold on a slightly raised surface in order to be able to fit the crimping tool. The greatest thing about this manifold is that it comes with separate valves. So you crimp your pex and then you can check the connection right away by turning on the valve. I have been shopping around for quite some time and I feel this was the best deal because the price is low, valves are included (which btw are ball valves), it was easy to put in place and the water flow is even.
By Gia (from NJ) on 06/15/2011
Helpful? Yes 1 No
good quality
these are very nice and well made.
By diy (from rose ny) on 02/25/2016
Ask a Question
can this be used for heating manifold?
Helpful? Yes No
Yes.
By PexUniverse Customer Service on 09/14/2016
does this work with uponor wirsbo propex connections for aqua-pex a?
Helpful? Yes No
This version of Sioux Chief PEX manifold has crimp corrections which are only compatible with crimp or clamp PEX connection methods.
By PexUniverse Customer Service on 05/29/2012
