0015e3 High-Efficiency Circulator Pump w/ IFC, 120V Taco

0015e3 High-Efficiency Circulator Pump w/ IFC, 120V

Brand: Taco

Part#: 0015E3-2F2

In Stock

Estimate delivery

Usually ships: within 1 business day

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

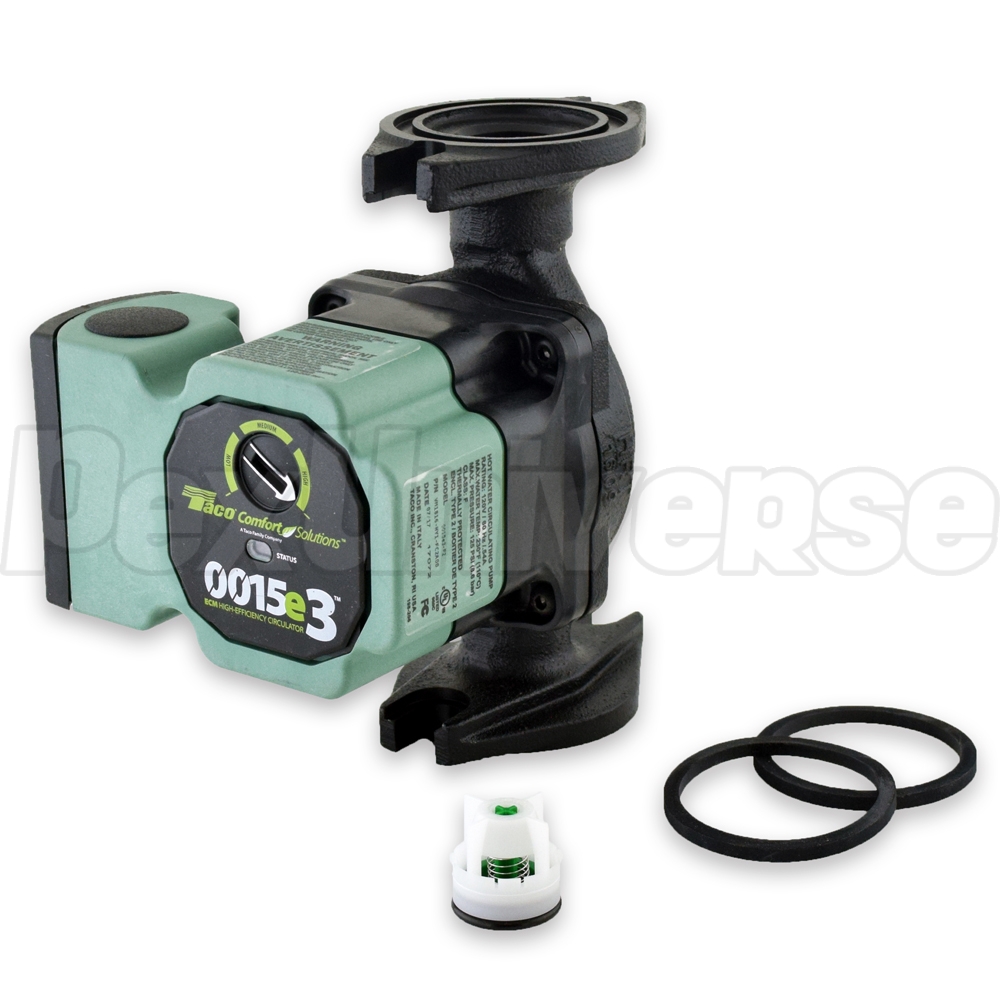

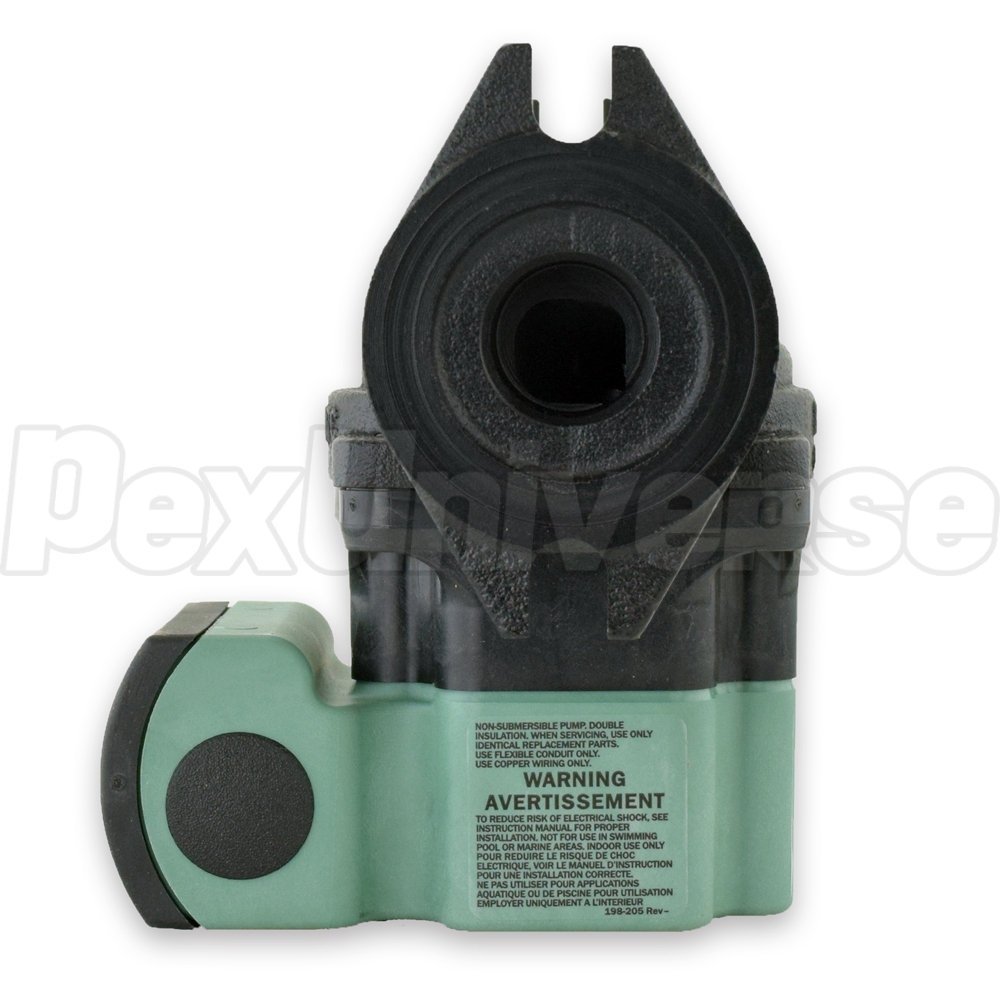

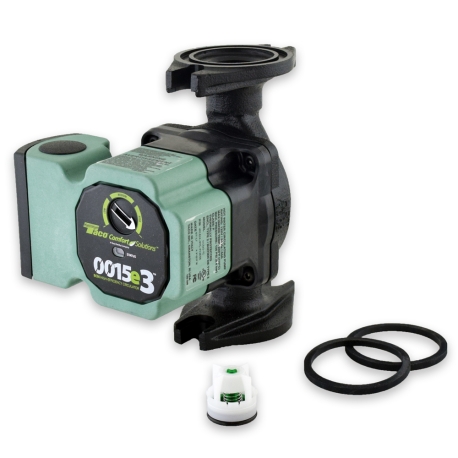

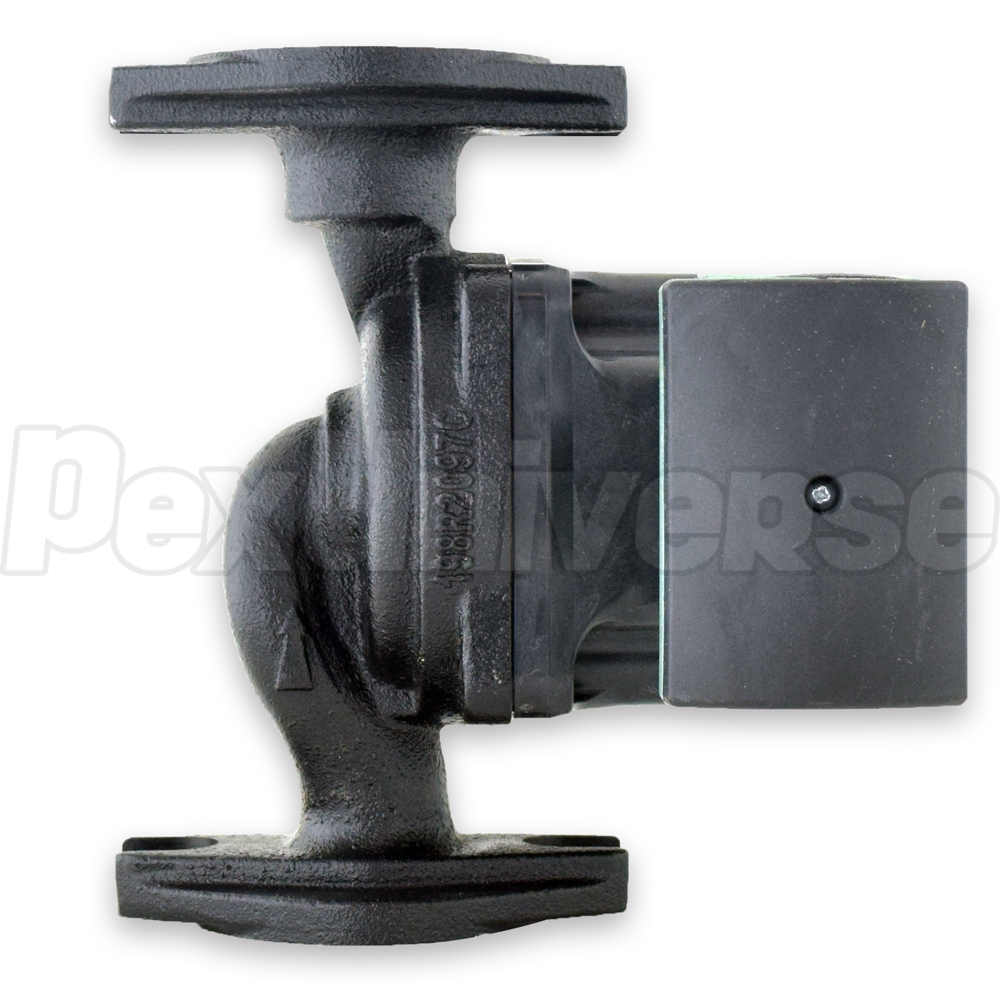

Taco 0015e3 is a 3Volve series, high-efficiency variable speed circulator pump with IFC (check valve), ECM permanent magnet motor and (3) constant pressure modes/settings. It is ideal for radiant and baseboard heat applications and replaces over 37 circulator models.

Cross-References:

Taco 00R & 0015
Grundfos UPS15-58F & Alpha 15-55F
and many others.

Features:

(3) Constant pressure settings - low, medium and high
High-efficiency motor uses up to 85% less electricity
BIO barrier protects the circulator from contaminants in the system
SureStart feature allows the pump run dry during air purge
Built-in check valve (IFC)
Double insulated - no ground wire required
4-mode LED indicator for easy diagnostics
Dual electrical knockouts with 6" stranded wire included simplify electrical connections.

Technical Specifications:

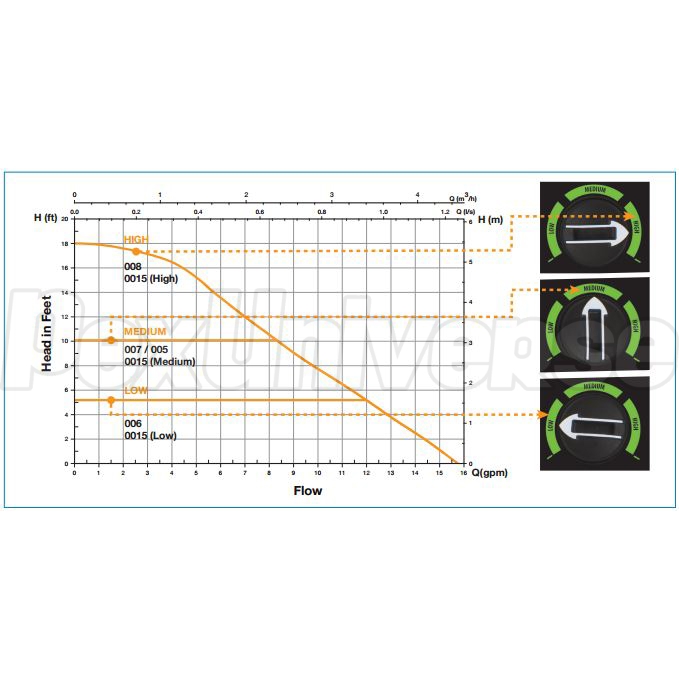

Circulator Pump Type: Variable Speed w/ (3) constant-pressure modes (18, 10 and 5ft of head)
Material: Cast Iron
Flange type: Standard
Electrical: 120V, 60Hz, 1-Phase
Max Shut-off Head: 18ft
Max Flow: 16 GPM
Max Operating Pressure: 125 psi
Min/Max Water Temp: 36°F / 230°F
Max Operating Power: 44W
Max Amp Draw: 0.54A
cUL and FC Listed.
