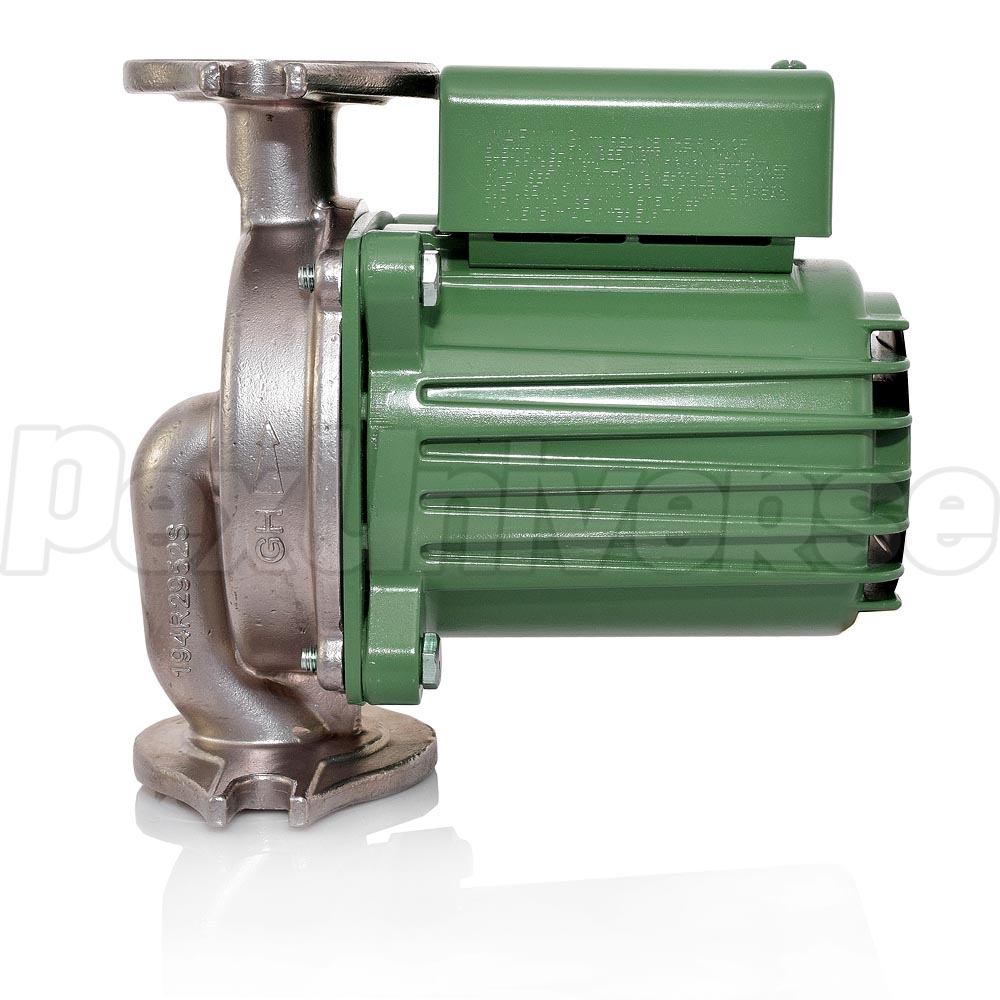

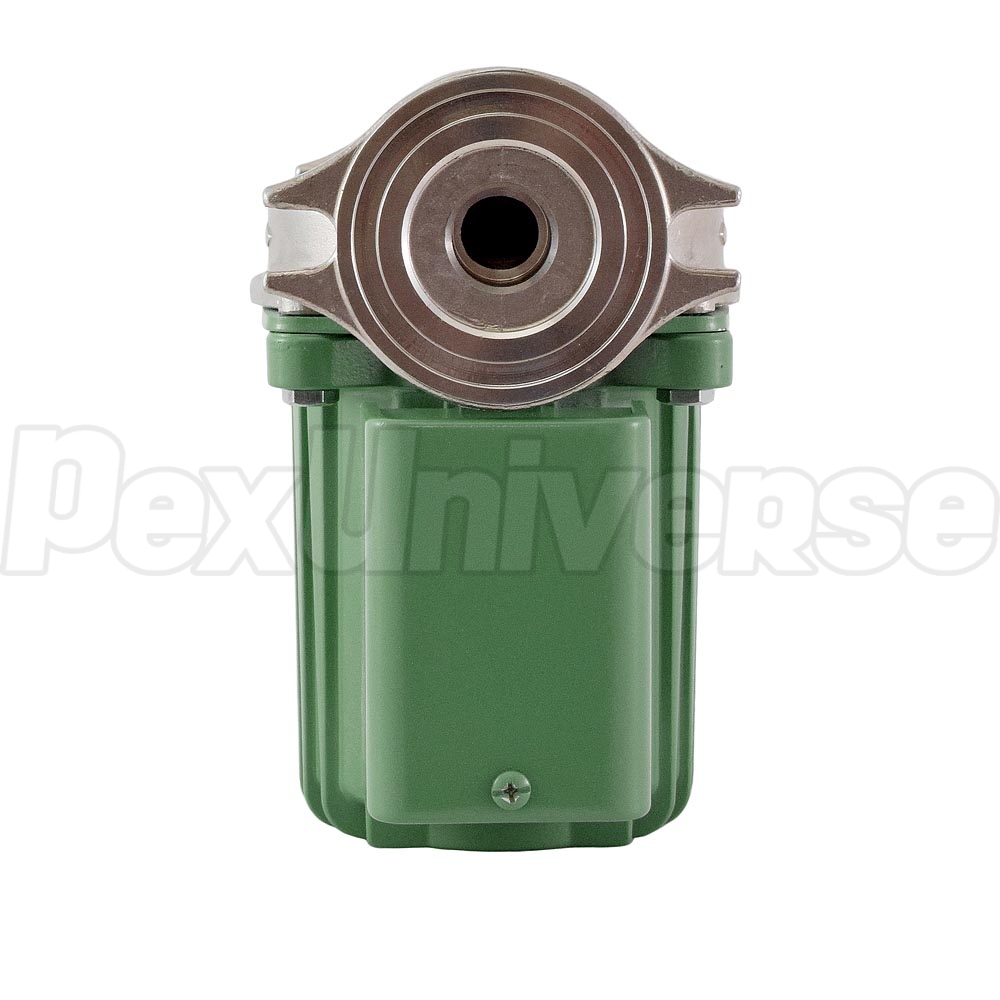

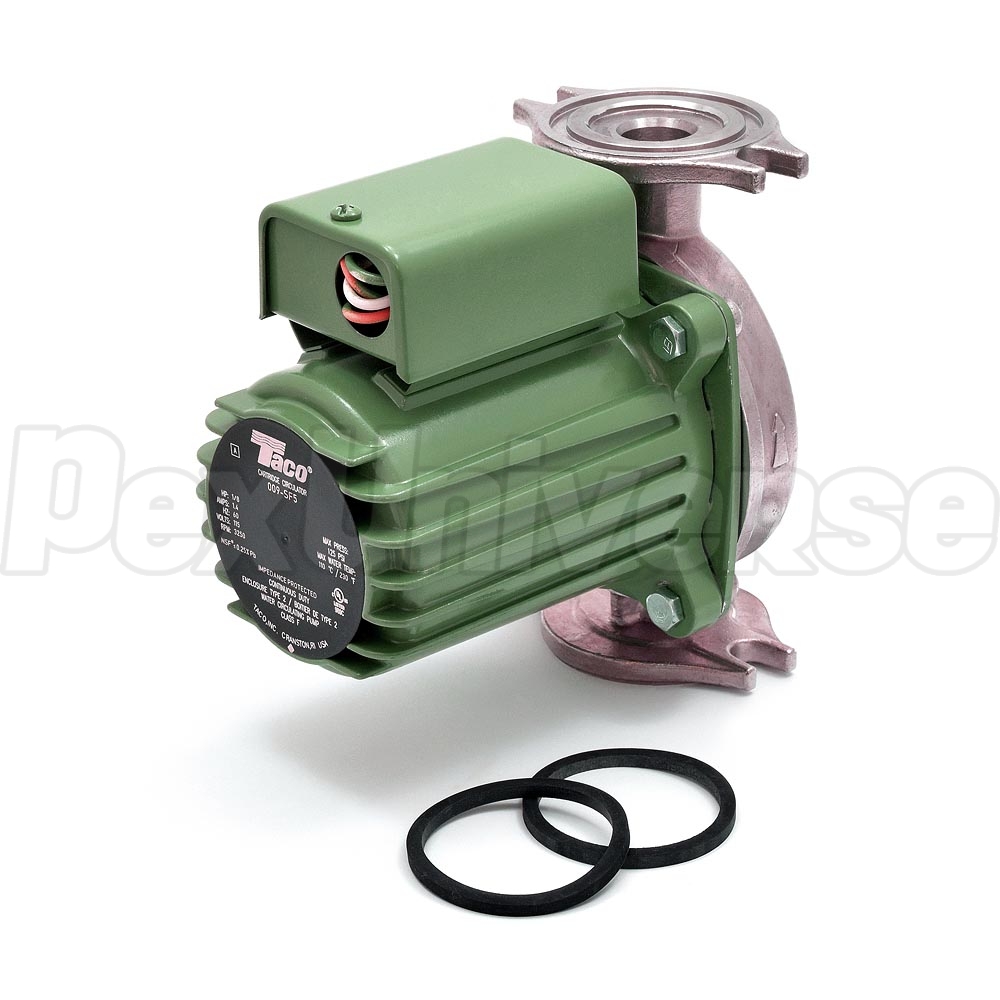

009 Stainless Steel Circulator Pump, 1/8 HP, 115V


Brand: Taco

Mfr Part#: 009-SF5

UPC#: 687752631388

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$378.95 / each & Free Shipping
x2 $729.90 / box & Free Shipping
(2 x $364.95 / each)
  • Description
  • Literature
  • Reviews (1)
  • FAQs (1)

The High Velocity series Taco 009-SF5 circulator pump (Stainless Steel) is designed for use in high head and low flow applications in hydronic, radiant heating, domestic water recirculation and other closed or open loop recirculation applications. Taco 009-SF5 features a field-serviceable cartridge which allows to replace the cartrigde without replacing the entire circulator.


• Hydronic Heating/Cooling
• Radiant Heating

• Applications with High Pressure Drop (High Head)
• Wood Boilers / Furnaces
• Hydro-Air Fan Coils

• And others

Electrical Data:
Voltage: 115V;

Hertz: 60Hz;

Phase: 1;

Amps: 1.40A;

HP: 1/8HP;

Technical Specifications:

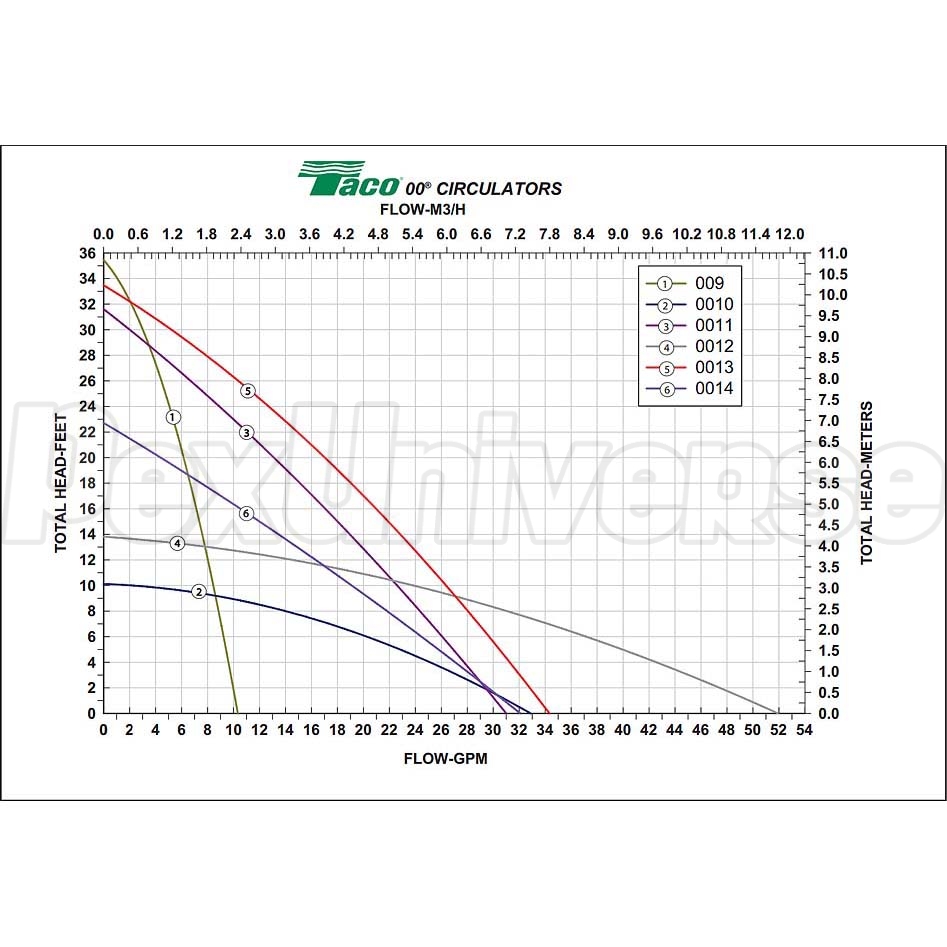

  • Flow Range: 0 – 10 GPM;
  • Head Range: 0 – 35 Feet;
  • Minimum Fluid Temperature: 40˚F (4˚C);
  • Maximum Fluid Temperature: 230°F (110˚C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged


3 year manufacturer's warranty.
009 Stainless Steel Circulator Pump, 1/8 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.
Pumps works as well as the cast iron ones I replaced
By Dennis H. (from Minnesott Beach, NC) on 3/27/2015
The quality is tops and with the cast SS I will not have rust build-up as I have had with the same pumps that were cast iron that were used in my open loop hot water solar system.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Is this lead free. Mfr Part#: 009-SF5
Read 1 answer
Yes, it is classified as lead-free and meets NSF 372 standard.
Answered on 11/30/2017 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
