1" Cast Iron Air Scoop
Brand: Taco
Part#: 431-6
In Stock
Usually ships: within 1 business days

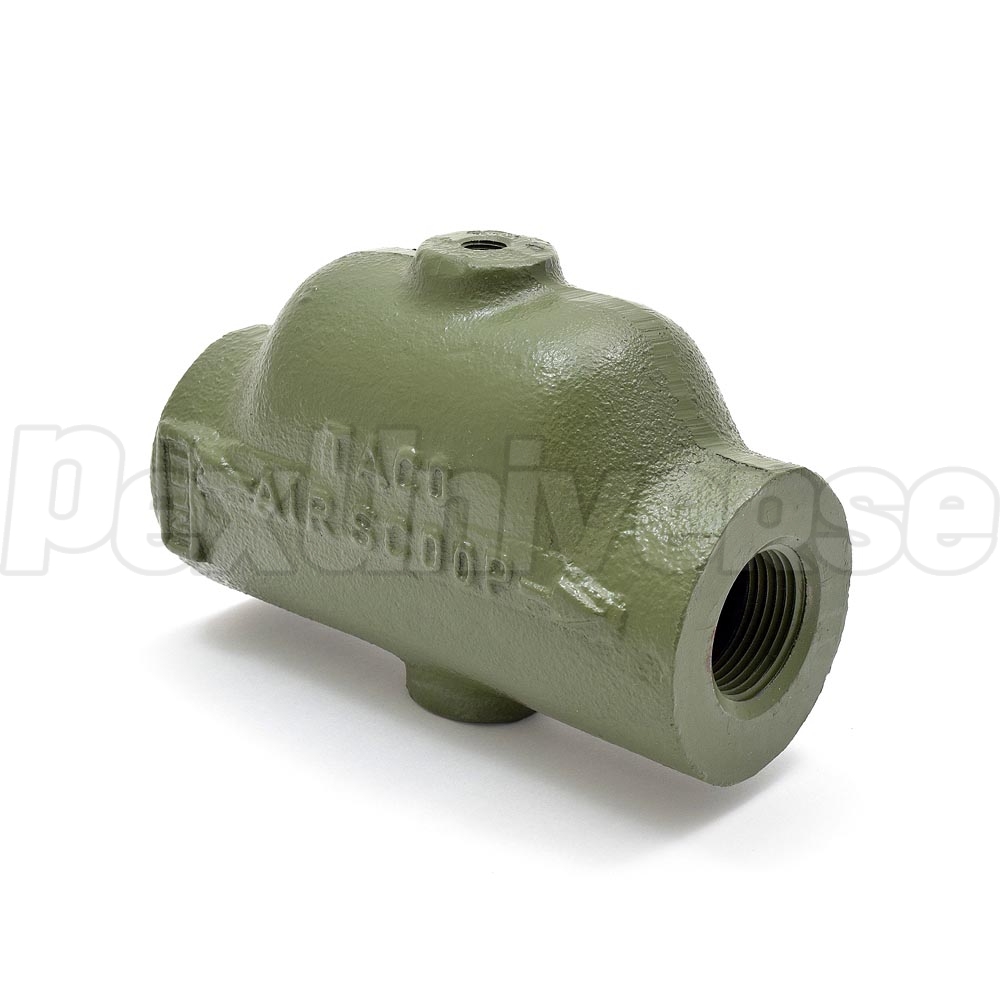

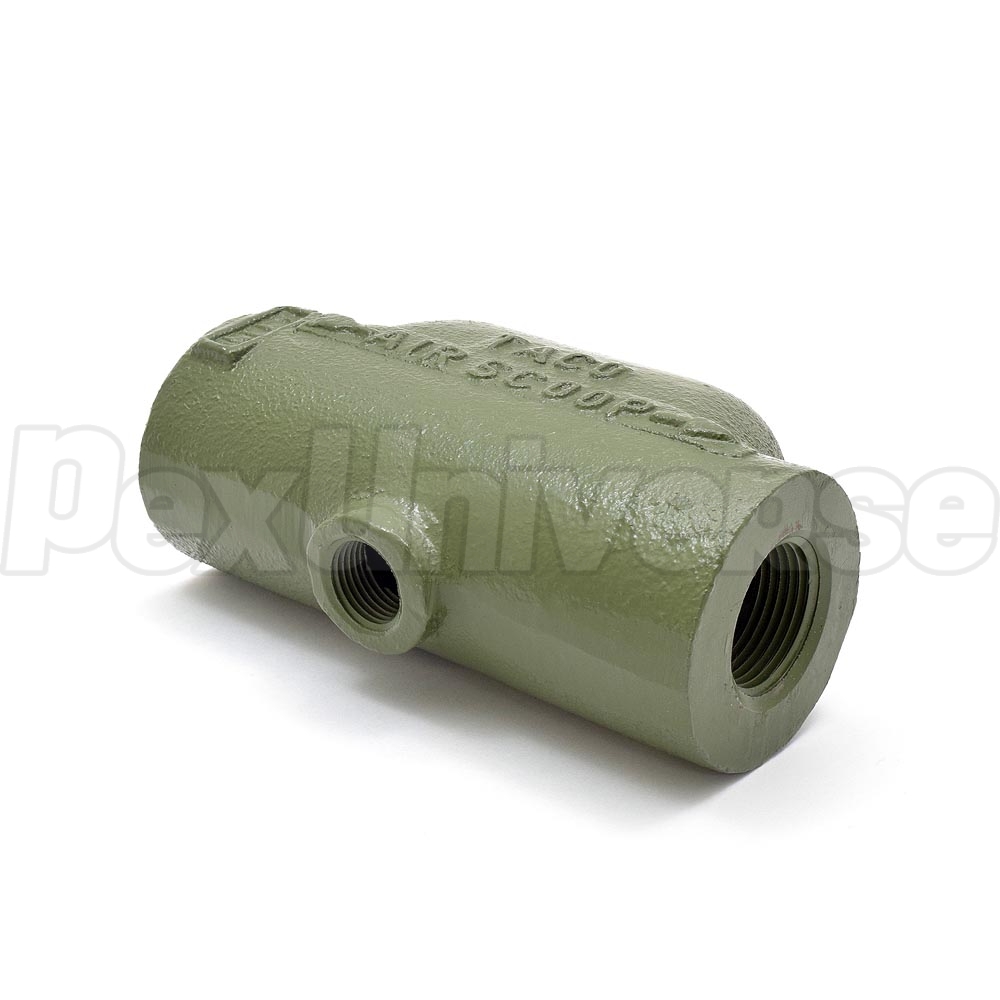

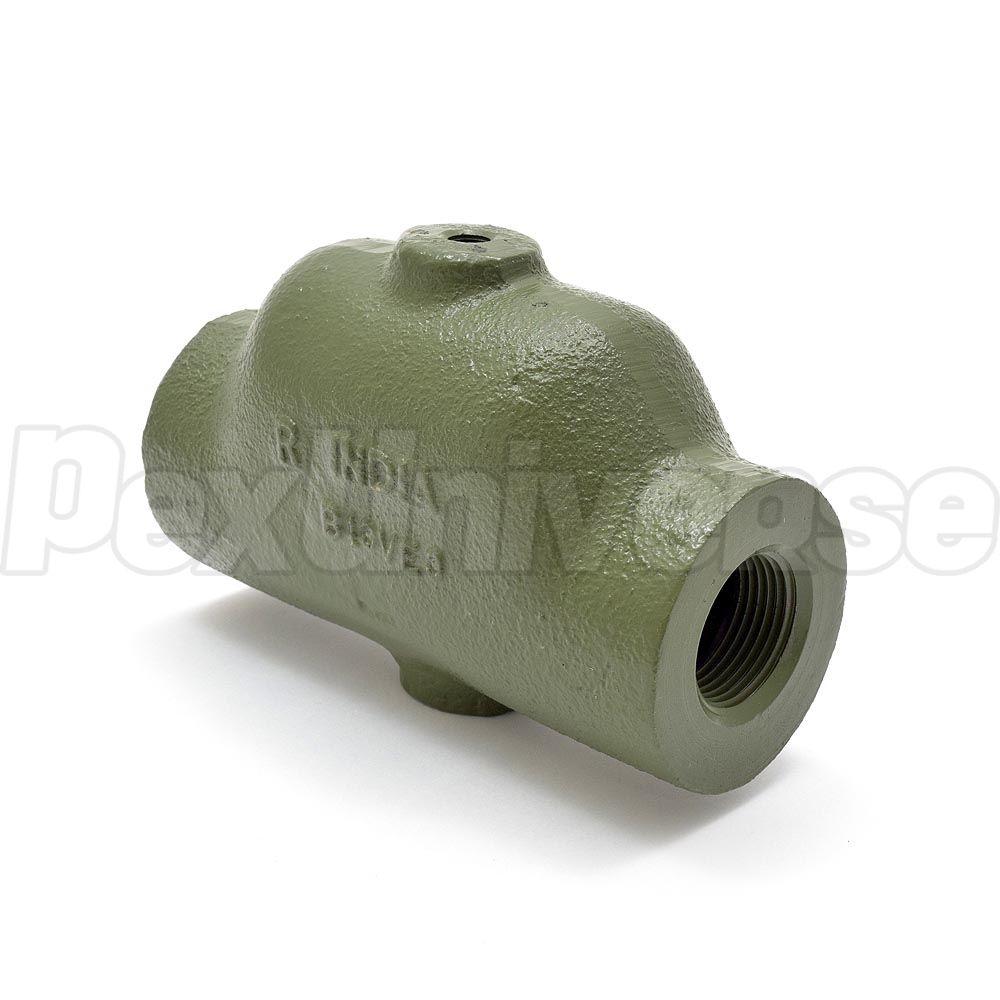

Taco Air Scoop is designed to slow the water velocity to separate the air from solution. The unit is manufactured from cast iron and features equal threaded inlets on both sides. Top of the air scoop features a 1/8" NPT outlet and allows for connection of a regular air vent (such as Taco Hy-Vent part# 400-4). Bottom of the air scoop has a 1/2" NPT threaded outlet, which allows for connecting a plain steel diaphragm expansion tank.


Features:
  • One Piece Cast Iron Construction
  • Engineered Baffle to Separate Air from Water
  • Never Requires any Servicing

Technical Specifications:
  • System Connections: 1" Female Threaded
  • Bottom Tapping (for expansion tank): 1/2" Female Threaded
  • Top Tapping (for air vent): 1/8" Female Threaded
  • Maximum Operating Pressure: 125 psi
  • Maximum Operating Temperature: 300°F
  • Media: Water or Water/Glycol Mix
  • Recommended Flow Rate: 4 ft/sec
  • Maximum Flow Rate: 8 ft/sec
  • Dimensions (W x H): 6" x 4"
  • Cv: 31.4
  • Weight: 4.0 lbs

Read more

Warranty:
1 year manufacturers warranty.
