1/2" Threaded Pro-Pal Expansion Tank Pro Service Valve w/ Hose Drain
Brand: Webstone Valves
Part#: 41672
In Stock
Usually ships: within 1 business days

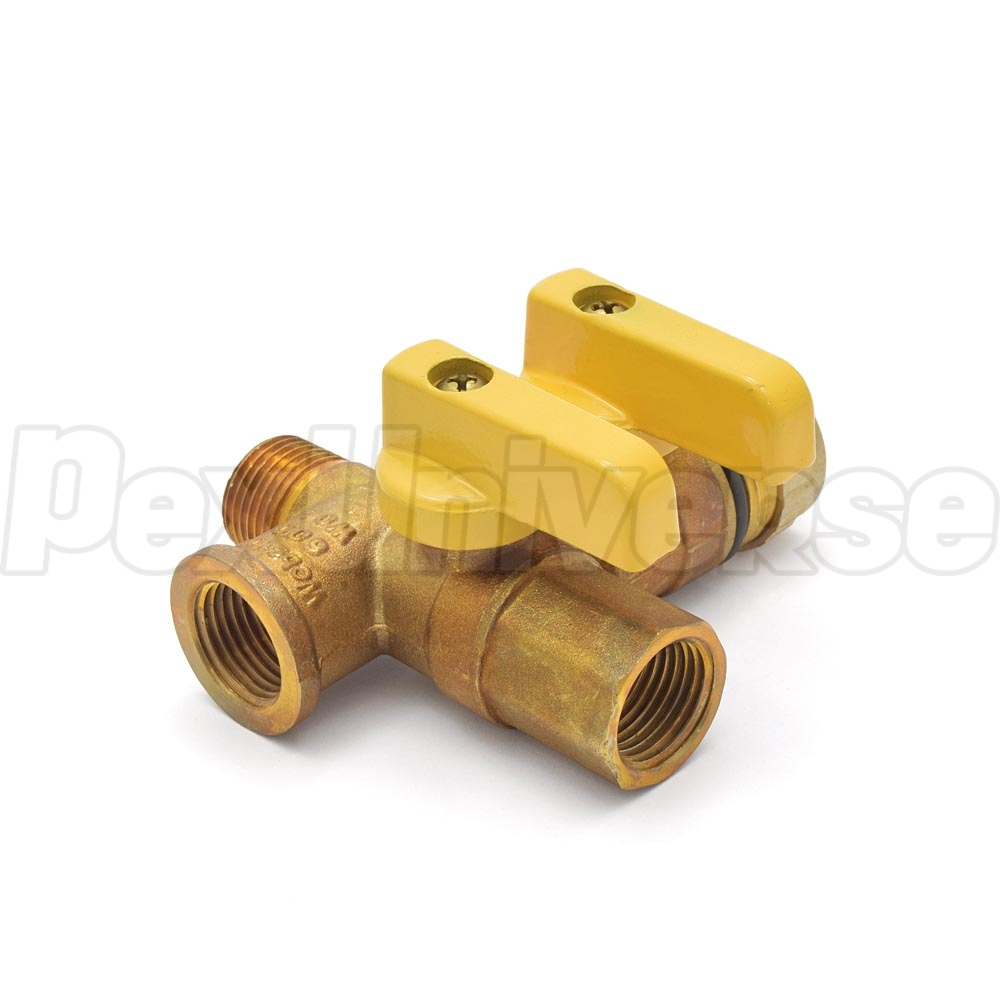

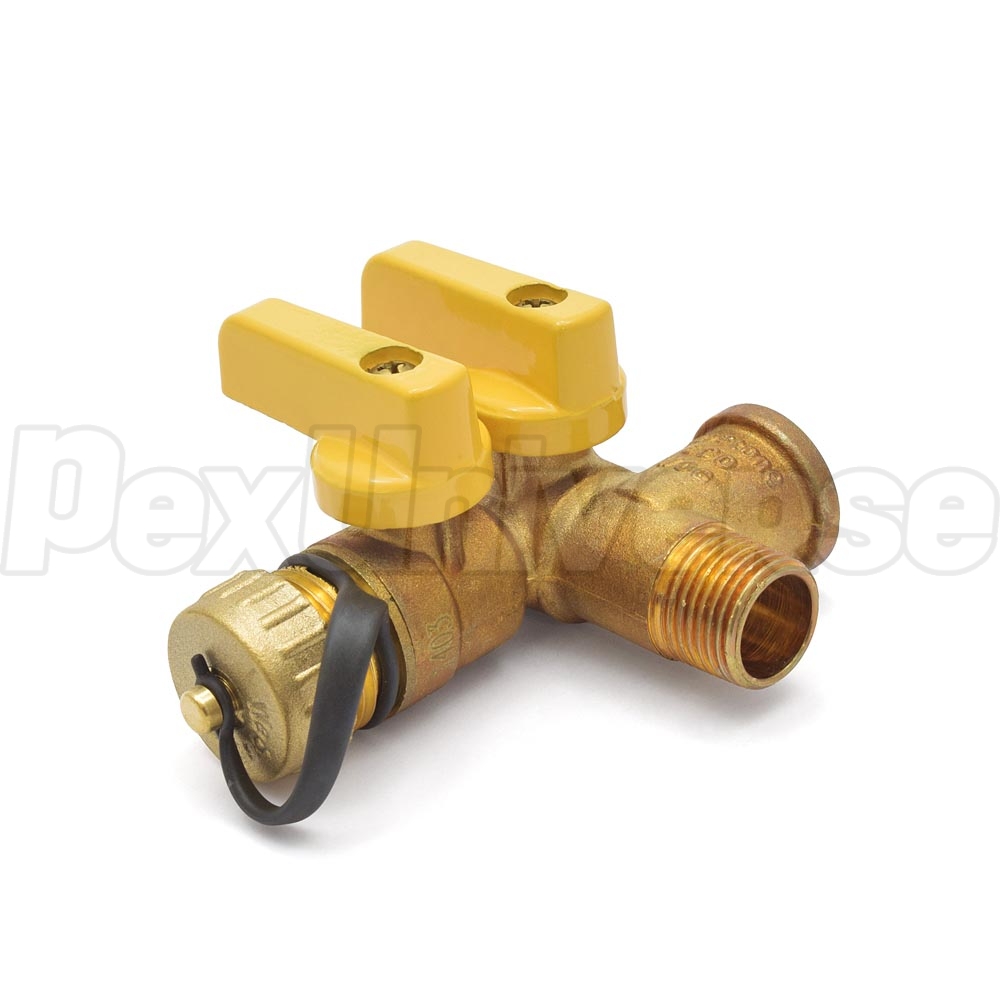

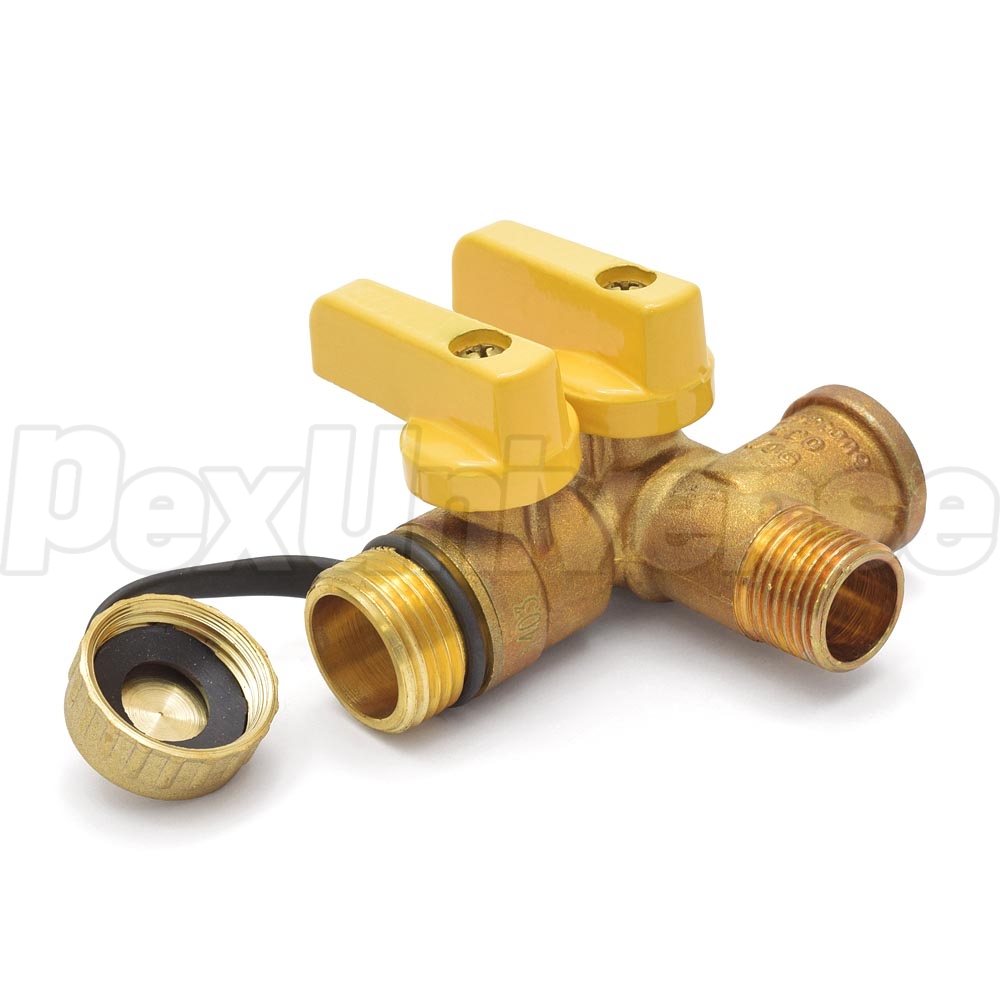

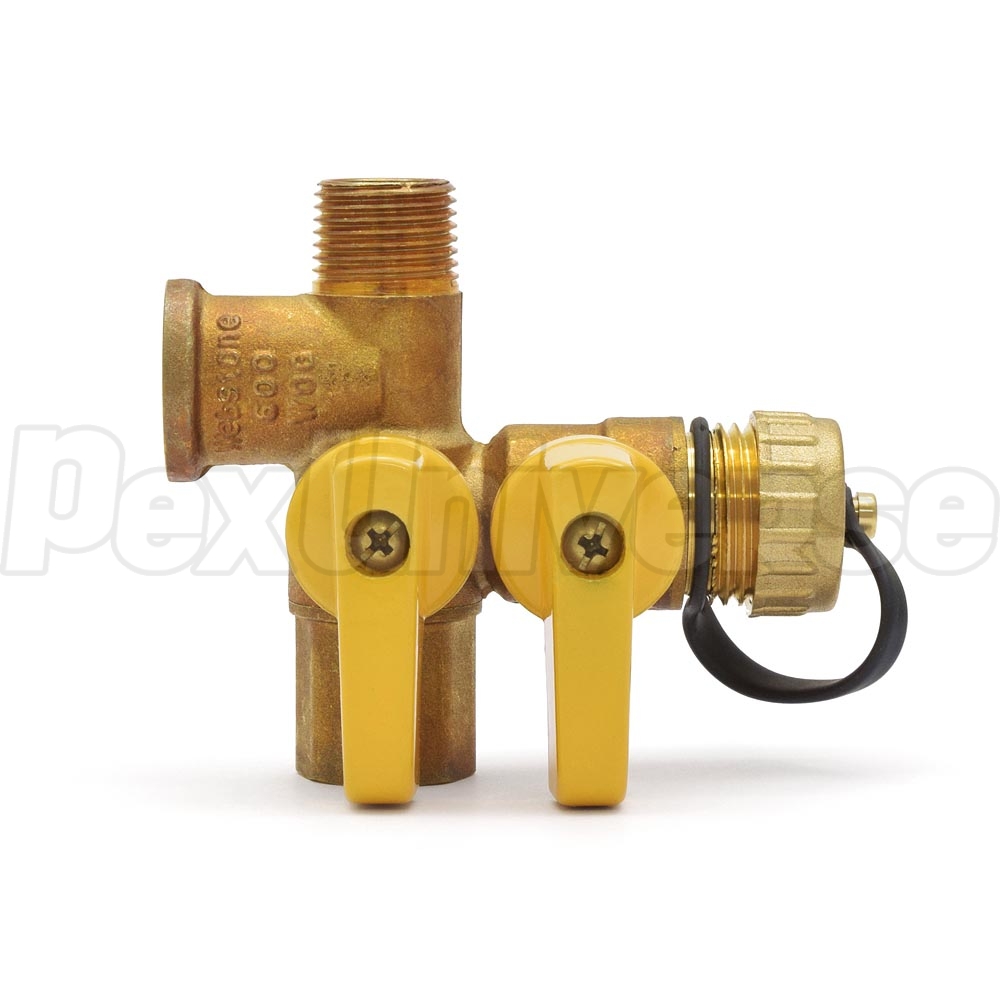

1/2" Threaded Pro-Pal Expansion Tank Pro Service Valve (41672)

Materials:
  • Body: Brass
  • Seat: PTFE
  • Ball: Brass HCP
  • End Cap: Brass
  • Cap: Brass
  • Washer: EPDM
  • Stem: Brass
  • Stem Seal: PTFE
  • Packing Gland: Brass
  • Handle: Enamel Coated Aluminum
  • Handle Screw: Brass
  • Strap: EPDM

Temperature-Pressure Chart of 41672 Pro Service Valve:

Temp (°F) PSI
100 600
150 490
200 470
250 439
300 411
350 294

Applications:
For heating only.
Write a Review
Helpful? Yes No
Verified Purchase
Mitch
Really fast and easy installation . High quality valve!
By Verified Buyer (from Los Angeles, CA) on 10/05/2016
Helpful? Yes No
Verified Purchase
Piece of art!

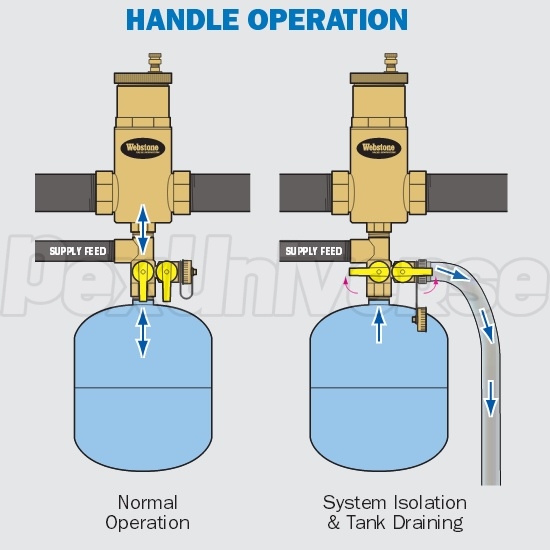

Whoever invent this one-THANK YOU SO SO MUCH! I am a service guy and if you want to service the radiant floor heating ,flush system or do whatever it is a headache to deal with expansion tanks. This assembly is A MUST HAVE on ANY installation. You can separate expansion tank, if you want you can drain it,you can bleed it, fill it. Hats down to this. I will not do a job without it!
By Momchil, Lic Plumber (from Sacramento,CA) on 08/17/2016
