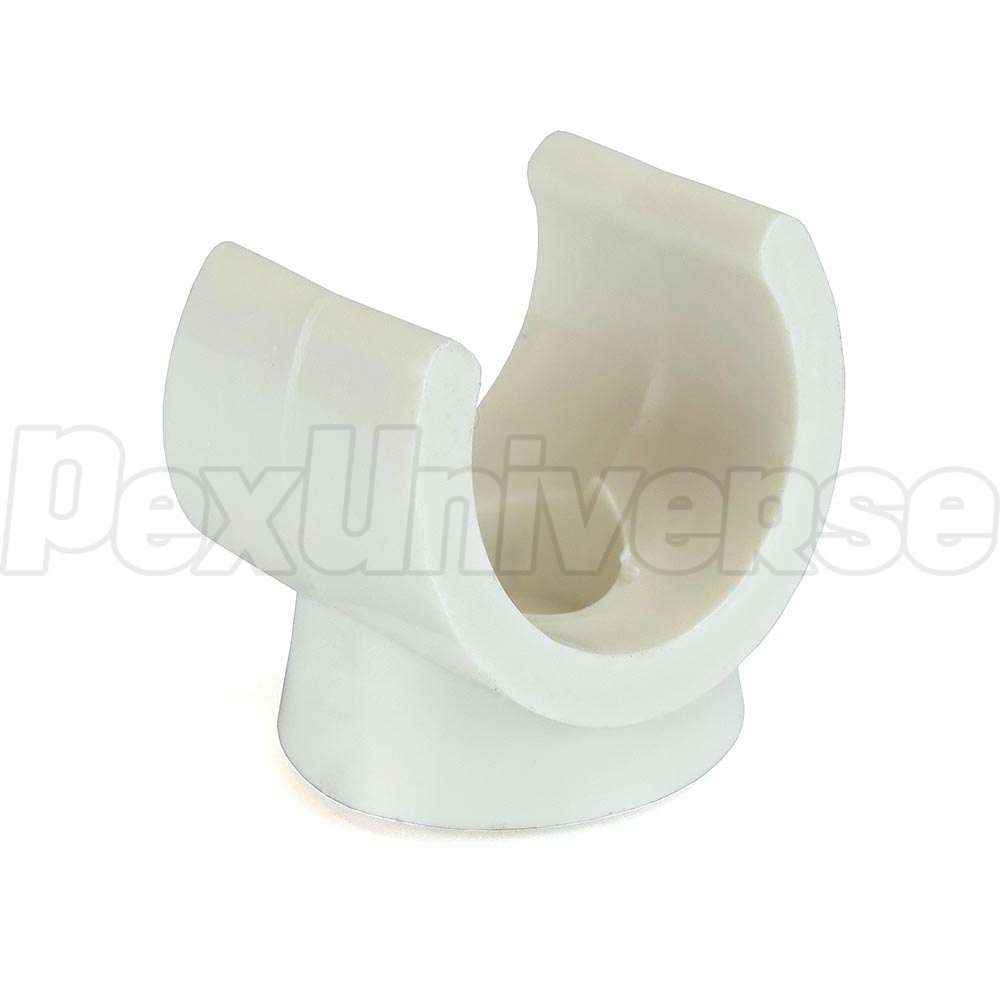

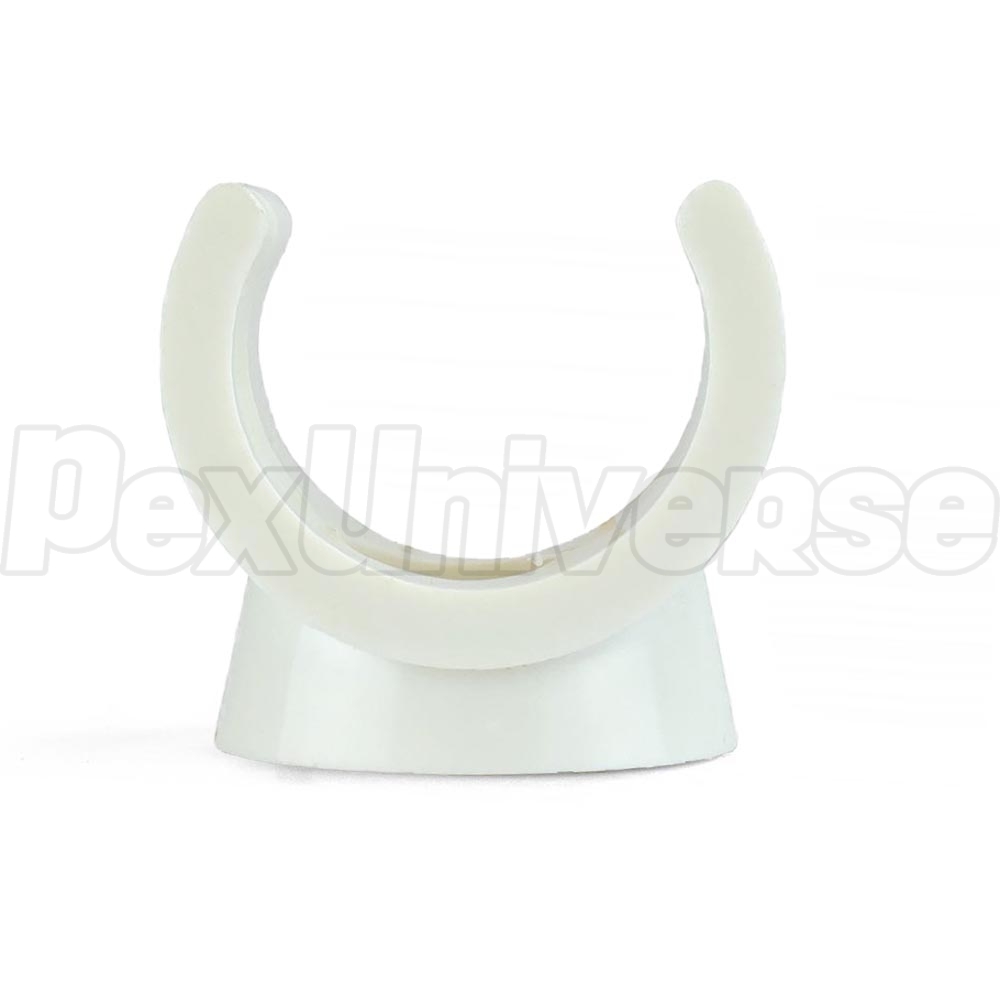

Snap-in Clips for 1/2" PEX Tubing (130/bag)
Brand: Everhot
Part#: PXA4031
In Stock
Usually ships: within 1 business days

Snap-in pipe clips can be used with PEX, copper and CPVC pipes and offer one of the most effective, versatile and reliable ways to secure tubing. Snap-in clips can be used both for horizontal and vertical pipe runs and require a single flat-head fastener.

PEX snap-in clips are designed to allow for installation of clips prior to the installation of tubing. This is extremely useful in overhead installation projects (such as subfloor radiant heating), where clips can be installed along the PEX tubing runs first and then pipe can easily be snapped into the clips.

Snap-in Clips can replace both types of pipe clamps - support type and regular straight type. Recommended installation spacing is 18-24" for horizontal runs and 36" for vertical runs of tubing.


Technical Specifications:
  • For tubing size: 1/2" CTS (5/8" OD)
  • Tubing offset from mounting surface: 1/4"
  • Height (without pipe installed): 3/4"
  • Max. screw cap size: 5/16"
  • Max screw hole size: 3/16"
  • Works both with flat head and round head screws

Read more
Write a Review
Helpful? Yes 4 No
Verified Purchase
Perfect for Plumbing!
I like using these clips even though they are a bit more expensive and you have to get your own screws for them. The major upside for using these is that when your working with Pex you can take your length on and off the clip - make your measurements, cuts or add a fitting and then just pop it back on the clip. Its so simple! By using the more permanent clips or hooks would would not allow this. I don't know how many times I thought I was done and then came back to something later, popped the Pex off of the clips, spliced in a line and then popped everything back into place. Highly recommend this product!
By Mike C (from NY) on 10/15/2015
Helpful? Yes 2 No
Verified Purchase
Love the clips
Boy, they made my job so much easier!!! Btw they don't come with screws. Pex can be challenging to work with because it comes in coils, so it's hard to straighten; those clips are a must have when working with pex.
By Gia (from NJ) on 06/15/2011
Helpful? Yes 1 No
clips
these clips work great sure beats nailing over your head
By Dan Kiesow (from Roseboom NY ) on 09/26/2012
